Configure Task Widget

The task widget displays an interactive, customizable list of tasks with advanced filtering, sorting, and search capabilities. It supports custom columns, pre-configured filters, quick search across multiple fields, and multi-language support for custom string fields via CMS.

Define Task Widget

The task widget displays tasks with full control over columns, filters, sorting, and layout. Refer to Task List Widget for widget behavior details.

Configuration Example

Below is a sample JSON definition of a task widget in the Portal dashboard:

{
   "type": "task",
   "id": "task-widget",
   "names": [
      {
         "locale": "en",
         "value": "My Tasks"
      },
      {
         "locale": "de",
         "value": "Meine Aufgaben"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 10,
      "h": 9,
      "style": "color: red;",
      "styleClass": "your-widget-class"
   },
   "sortField": "name",
   "sortDescending": false,
   "rowsPerPage": 20,
   "showWidgetInfo": true,
   "showFullscreenMode": true,
   "filterTasksByCurrentCaseOwner": false,
   "canWorkOn": false,
   "enableQuickSearch": true,
   "columns": [
      {
         "field": "start"
      },
      {
         "field": "priority",
         "visible": "true"
      },
      {
         "field": "id"
      },
      {
         "field": "name",
         "quickSearch": "true"
      },
      {
         "field": "state",
         "headers": [
            {
               "locale": "en",
               "value": "State"
            },
            {
               "locale": "de",
               "value": "Status"
            }
         ]
      },
      {
         "field": "startTimestamp"
      },
      {
         "field": "actions"
      }
   ],
   "filters": [
      {
         "field": "state",
         "values": ["OPEN", "IN_PROGRESS"],
         "operator": "in",
         "type": "standard"
      }
   ]
}

JSON Configuration Reference

Required Properties

type (string): Widget type. Must be "task" for task widget
id (string): Unique identifier for the widget
names (array): Multilingual display names. Each entry: {"locale": "en", "value": "Name"}
layout (object): Widget position and size (see Layout Properties below)
columns (array): Column configurations (see Columns section below)

Layout Properties

x (number): Column position in 12-column grid (0-11). CSS left = x / 12 * 100%
y (number): Row position. CSS top = y / 12 * 100%
w (number): Width in grid columns (1-12). Pixel width = 60 * w + 20 * (w - 1)
h (number): Height in grid rows (min 5). Pixel height = 60 * h + 20 * (h - 1)
styleClass (string, optional): CSS classes for custom styling
style (string, optional): Inline CSS styles

Tip

Recommended task widget size: Width 8-12 columns, Height 8-12 rows for optimal table display with pagination.

Display & Behavior Properties

sortField (string, optional): Default column for sorting (e.g., "name", "priority", "startTimestamp")
sortDescending (boolean, default: false): Sort direction. false = ascending, true = descending
rowsPerPage (number, default: 10): Number of tasks displayed per page
showWidgetInfo (boolean, default: true): Show/hide widget information icon
showFullscreenMode (boolean, default: true): Show/hide fullscreen mode icon
enableQuickSearch (boolean, default: false): Enable quick search text box
canWorkOn (boolean, default: false): Filter only tasks the current user can work on
filterTasksByCurrentCaseOwner (boolean, default: false): Filter only tasks where current user is case owner (requires Portal.Cases.EnableOwner setting)
isTopMenu (boolean, default: false): true = top-level nav item, false = under Dashboard menu

Columns Configuration

Each column object in the columns array:

field (string, required): Column field name (see Standard Columns below)
visible (string, default: "true"): Column visibility: "true" or "false"
quickSearch (string, default: "false"): Include in quick search: "true" or "false"
headers (array, optional): Multilingual column headers: [{"locale": "en", "value": "Header"}]
type (string, default: "STANDARD"): Column type: "STANDARD" or "CUSTOM"
style (string, optional): Inline CSS for custom columns (e.g., "width: 110px")

Standard Column Fields

start - Start button to begin task execution
Pin - Pin button for task
priority - Task priority
id - Task ID
name - Task name
description - Task description
activator - Task activator
state - Task business state
startTimestamp - Creation date and time
endTimestamp - End date and time
expiryTimestamp - Expiry date and time
application - Application name
actions - Action buttons (details, reset, delegate, reserve, destroy, etc.)

Filters Configuration

The filters array defines pre-configured filter conditions:

field (string): Column field name to filter
values (array): Filter values (format depends on field type)
operator (string): Filter operator (see Filter Conditions section)
type (string): "standard" or "custom"

Note

For detailed filter configuration, see the Filter Conditions section below.

Custom Columns

Axon Ivy supports custom fields for tasks. You can show them in the Task widget as a column.

You can predefine which column to show, and other attributes such as filter, format, and style. Below is a standard JSON of a custom column.

{
   ...

   "columns": [
         {
            "type": "CUSTOM",
            "field": "HIDE",
            "style": "width: 110px"
         }
   ]
}

Besides attributes explained in the previous section, a custom column has two differences:

type: type of the widget column. There are two options: STANDARD and CUSTOM.

field: this attribute is the name of the task’s custom field which will be used to get data for the column.

Important

Portal only displays custom fields declared in the custom-fields.yaml file. Refer to Custom Fields Meta Information for more information.

Filter Conditions

You can predefine filter conditions for most columns of the task widget. Each column has different requirements: some accept only a list, some accept only a string, and others require a string in a specific format, such as date-time. Please refer to Complex Filter for more details.

Base structure of filter json:

{
   ...

   "columns" : [
      {
         "field" : "description"
      }
   ],
   "filters" : [
         {
            "field" : "description",
            "values" : [ "Leave Request" ],
            "operator" : "contains",
            "type" : "standard"
         }
   ]
}

field: filter field name corresponding with column name

values: filter value, could be a list, a string or a number

operator: filter operator, operators can be difference depend on each field type.

String column: is, is_not, empty, not_empty, contains, not_contains, start_with, not_start_with, end_with, not_end_with

Number column: between, not_between, empty, not_empty, equal, not_equal, less, less_or_equal, greater, greater_or_equal

Date column: today, yesterday, is, is_not, before, after, between, not_between, current, last, next, empty, not_empty

type: standard for standard column or custom for custom column

Date type additional field:

periodType: string value. E.g.: YEAR, MONTH, WEEK, DAY

from: string value. E.g.: “04/04/2024”

to: string value. E.g.: “05/05/2024”

There are additional fields dependent on the operator and many specific filters for each field type. Below is the list of filterable columns and their corresponding filter conditions.

Tip

We encourage utilizing dashboard configurations to edit widgets and then leveraging the export dashboard feature to ensure better expectations when customizing these widgets.

Standard Column:

activator

{
   ...

   "columns": [
      {
         "field": "activator"
      }
   ],
   "filters": [
      {
         "field": "activator",
         "values": [ "backendDev2" ],
         "operator": "not_in",
         "type": "standard"
      }
   ]
}
This column only accepts a list of role names or usernames as filter conditions for the task’s responsible username. The available filter operators are in, not_in and current_user. The current_user operator does not require value field.

name

{
   ...

   "columns": [
      {
         "field": "name"
      }
   ],
   "filters" : [
      {
         "field": "name",
         "values": [ "Task", "Leave Request" ],
         "operator": "contains",
         "type": "standard"
      }
   ]
}

This column accepts all operators available for String column. Additionally, it accepts value as a list of string.

description

{
   ...

   "columns": [
      {
         "field": "description"
      }
   ],
   "filters": [
      {
         "field": "description",
         "values": [
         "leave request"
         ],
         "operator": "contains",
         "type": "standard"
      }
   ]
}

This column accepts all operators available for String column. Additionally, it accepts value as a list of string.

priority

{
   ...

   "columns": [
      {
         "field": "priority"
      }
   ],
   "filters": [
      {
         "field": "priority",
         "values": [ "HIGH", "NORMAL", "LOW" ],
         "operator": "in",
         "type": "standard"
      }
   ]
}

This column only accepts a list of priorities’ names as the filter condition. The available filter operator is in.

Refer to Task Priority for available task priorities.

state

{
   ...

   "columns": [
      {
         "field": "state"
      },
   ],
   "filters": [
      {
         "field": "state",
         "value": [ "DELAYED", "DESTROYED" ],
         "operator" : "in",
         "type" : "standard"
      }
   ]
}

This column only accepts a list of task business state names as its filter condition. The available filter operator is in.

Refer to Task Business States for available task business states.

startTimestamp and expiryTimestamp : created date and finished date of the Task

{
   ...

   "columns": [
      {
         "field": "startTimestamp"
      }
   ],
   "filters" : [
      {
         "field": "startTimestamp",
         "operator": "today",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "from" : "04/04/2024",
         "operator" : "before",
         "type" : "standard"
      },
      {
         "field" : "expiryTimestamp",
         "from" : "04/04/2024",
         "to" : "04/06/2024",
         "operator" : "between",
         "type" : "standard"
      },
      {
         "field" : "expiryTimestamp",
         "operator" : "last",
         "periods" : 1,
         "periodType" : "YEAR",
         "type" : "standard"
      }
   ]
}

These columns accept all operators available for Date column. Fields may vary depending on the operator. The JSON example above covers most use cases for the Date field. Acceptable date formats: dd.MM.yyyy, dd.MM.yyyy HH:mm, MM/dd/yyyy and MM/dd/yyyy HH:mm.

application

{
   ...

   "columns": [
      {
         "field": "application"
      }
   ],
   "filters": [
      {
      "field" : "application",
      "values" : [ "designer" ],
      "operator" : "in",
      "type" : "standard"
      }
   ]
}

Custom Field Column :

Custom Columns are using the same operator as Standard Column.
type field must be custom for Custom Field and custom_case for Custom Case Field.

{
   ...

   "columns": [
      {
         "field" : "CustomerName"
      }
   ],
   "filters": [
      {
         "field" : "CustomerName",
         "operator" : "not_empty",
         "type" : "custom"
      }
   ]
}

Quick Search

The quick search is a useful function for users to quickly search the tasks within the task widget. The configuration of the quick search has two attributes:

enableQuickSearch: enables the quick search feature for the widget.

quickSearch: indicates that a column is searchable using the quick search feature.

If you set the enableQuickSearch attribute to false, the quick search feature will be disabled, regardless of the quickSearch attribute’s value.

Conversely, if you set the enableQuickSearch attribute to true, the quick search feature will search within the values of all columns that have the quickSearch attribute set to true. If you haven’t assigned the quickSearch attribute to any column in the task widget, the quick search feature will default to searching the name and description fields.

Below are the definition of these attributes:

enableQuickSearch: to enable/disable the quick search feature, set the enableQuickSearch field of the Task widget as shown below.
{
   ...
   "type": "task",
   "id": "task_98ae4fc1c83f4f22be5244c8027ecf40"
   ...
   "enableQuickSearch": "true",
   ...
}
Valid values:

true: show the quick search text box.

false: hide the quick search text box.

not defined: hide the quick search text box.
quickSearch: to choose which columns can be searched by the quick search feature, set the quickSearch field for each column as shown below.
{
   ...
   "type": "task",
   "id": "task_98ae4fc1c83f4f22be5244c8027ecf40"
   ...
   "columns": [
      {
         "field": "id",
         "quickSearch": "false"
      },
      ...
   ]
   ...
}
Valid values:

true: apply quick search for this column.

false: do not apply quick search for this column.

not defined: the name and description columns are true, other columns are false by default.

Multi-Language Support for Custom String Fields

With the Multi-Language Support for Custom Fields feature, we enable the provision of values in a custom field in multiple languages. The field content is displayed based on the language selected in the custom field.

Important

Portal only supports Multi-Language for Custom Fields with TYPE: STRING.

Enabling Multi-Language Support

To allow a custom field to retrieve multilingual values from the CMS, set the HasCmsValue attribute to true in the corresponding custom-field yaml file configuration. Otherwise, the logic remains unchanged, and the custom field uses the static value. Additionally, the value must be entered and maintained in the CMS in multiple languages.

Following this path to add your custom field values: /CustomFields/Tasks/{fieldName}/Values/{value} Please follow this Localize Label, Description, Category and Values to get more information.

Example YAML Configuration

DriversVehicle:
   Label: Drivers Vehicle
   Description: Vehicle they use for delivery
   HasCmsValues: true
   TYPE: STRING

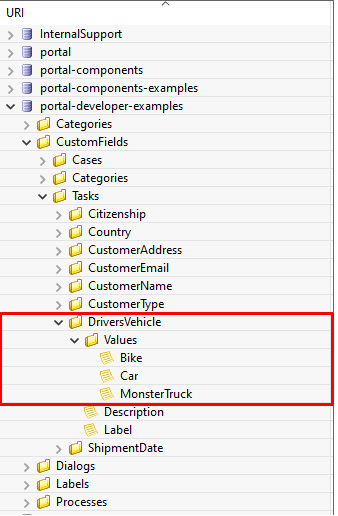

In your CMS, the path should be /CustomFields/Tasks/DriversVehicle/Values/Bike, /CustomFields/Tasks/DriversVehicle/Values/Car or /CustomFields/Tasks/DriversVehicle/Values/MonsterTruck.

Result

If HasCmsValues is set with true, the values from the CMS are used.
If the values are entered and translated in the CMS, then the custom field is displayed based on the selected language.
If the translation for a value is missing in the CMS, the static value from the entry is used instead.

Sorting, Filtering, and Searching with Multi-Language Custom Fields

Sorting

HasCmsValues = false or not set. Sorting is performed as usual based on the stored values.
HasCmsValues = true. Sorting is performed based on values translated in the currently selected language.

Note

If HasCmsValues = true but a translation is missing in a specific language, only the translated values are sorted.

Searching

HasCmsValues = false or not set. The search is performed as usual based on the stored value.
HasCmsValues = true. The search is conducted in both the CMS translations and the original value.

Example: When language is German, a user can search for Fahrrad or the original value Bike.

Filtering

HasCmsValues = false or not set. Filtering is performed as usual based on the stored value.
HasCmsValues = true. The filter is conducted in both the CMS translations and the original value.

Important

When enabling the Multi-Language for Custom Fields, only accepted CONTAINS operator.

Tip

If a value needs to be filtered in multiple languages, all corresponding translations must be in the filter.

Conclusion

With Multi-Language Support for Custom Fields, we enable flexible and dynamic provision of field content in multiple languages. The functionalities for searching, sorting, and filtering have been adapted accordingly to ensure consistent behavior for multilingual content.
