IFrame In Portal

Since Portal 8, all processes and tasks start inside an iFrame by default. Your HTML dialogs are automatically rendered in an isolated iFrame context, providing decoupling from Portal internals, simplified migrations, CSS/JavaScript isolation, and full responsive design support.

Important

By default, processes and tasks start inside an iFrame. No configuration is required unless you want to customize this behavior.

Templates to Use with IFrame

Use the frame-10 templates provided by Axon Ivy core (using the Freya theme). These templates are optimized for iFrame rendering and fully support responsive designs.

Template Features:

Automatic iFrame Integration

Seamless integration with Portal iFrame architecture

Responsive Layout

Full support for responsive designs across all device sizes

Portal UI Components

Includes task actions, case information, and process step visualization

Configurable Details

Customizable task details and branding options

Configuration Levels

Control whether tasks start in an iFrame at multiple levels. Portal evaluates these settings in priority order, with more specific levels overriding general ones.

Priority Order: Request Start (highest) → Task → Case → Engine (lowest, default: true)

Priority Order: Request Start (highest) → Task → Case → Engine (lowest, default: true)

Level	Priority	Description
Request Start	Highest	Set embedInFrame in Request tab custom fields. Overrides all other settings
Task	High	Set embedInFrame in Task custom fields. Overrides Case and Engine settings
Case	Medium	Set embedInFrame in Case custom fields. Overrides Engine settings
Engine	Lowest	Global setting Portal.EmbedInFrame in Portal admin settings

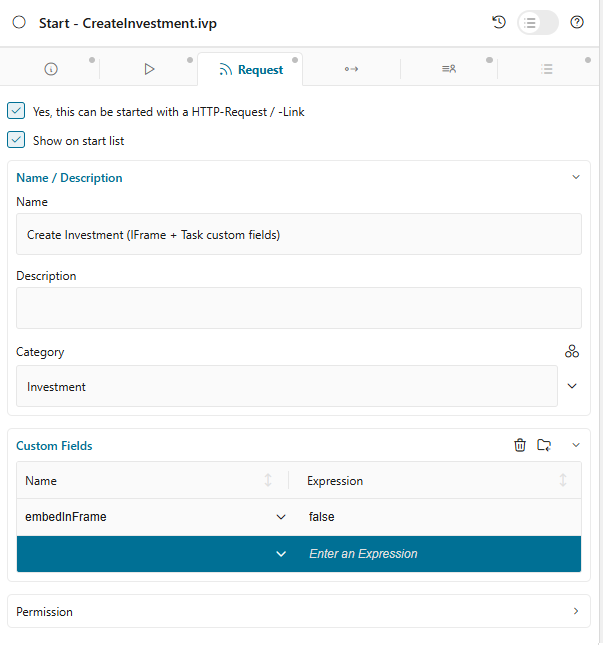

Request Start Level

Set the embedInFrame field in Request tab custom fields:

• true: Start inside iFrame

• false: Do not start inside iFrame

• Unset: Use Task, Case, or Engine configuration

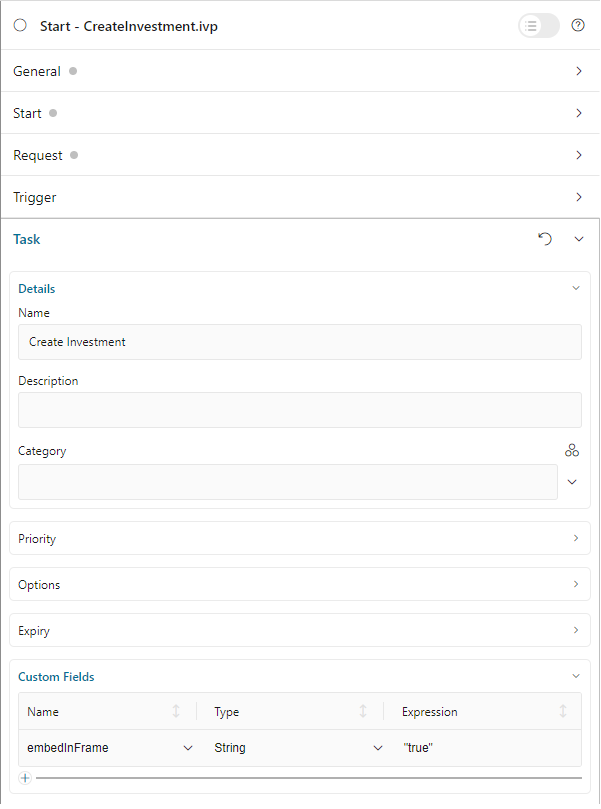

Task Level

Set the embedInFrame field in Task custom fields:

• true: Start inside iFrame

• false: Do not start inside iFrame

• Unset: Use Case or Engine configuration

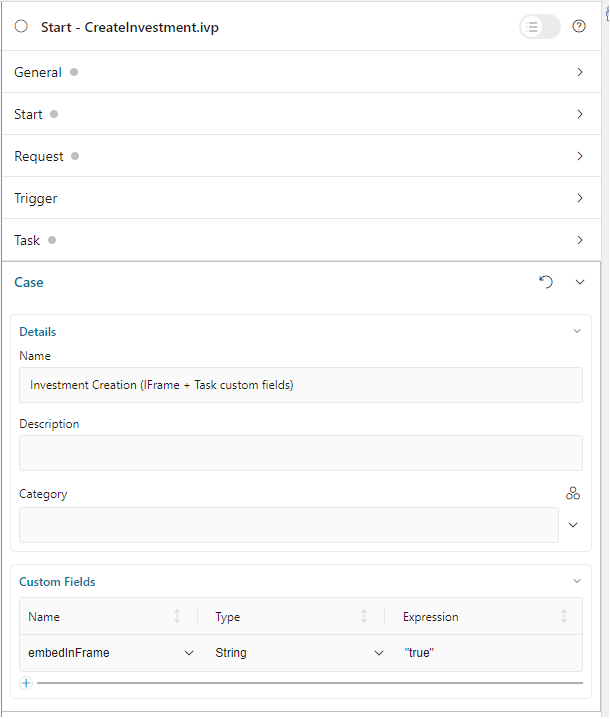

Case Level

Set the embedInFrame String field in Case custom fields:

• true: Start inside iFrame

• false: Do not start inside iFrame

• Unset: Use Engine configuration

Engine Level

Portal Administrators can globally configure all tasks to start inside iFrames by setting the Portal.EmbedInFrame value in Portal admin settings.

Refer to HowTo: Update Portal Settings for configuration details.

Configure IFrame Template

Portal provides extensive configuration options for iFrame templates to customize the appearance and behavior of embedded tasks, including task name and icon customization, process chain visualization, case information display, task action buttons, custom breadcrumb views, and card-style frame layout.

Template Parameters Reference

Task Details

taskName (string)

Custom text for the task name display.

taskIcon (string)

Icon using Streamline or Font Awesome (e.g., "si si-bulb").

isHideTaskName (boolean, default: false)

true = hide task name, false = show.

Case Information

caseId (string)

ID of the case to display in case information dialog.

isHideCaseInfo (boolean, default: false)

true = hide “Show Information” button, false = show.

Process Steps

currentProcessStep (string/number)

Current step index or step name.

processSteps (string/array)

List of step names or JSON string.

isShowAllSteps (boolean, default: false)

true = show all steps on large screens, false = compact view.

processChainDirection (string)

"VERTICAL" or "HORIZONTAL".

processChainShape (string)

"LINE" or "CIRCLE".

Task Actions

isHideTaskAction (boolean, default: false)

true = hide task action button, false = show.

isWorkingOnATask (boolean, default: true)

true = show navigation warning, false = no warning.

Miscellaneous

announcementInvisible (boolean, default: false)

true = hide announcements, false = show.

isCardFrame (boolean, default: false)

true = display content in card-style container, false = standard.

viewName (string)

Custom breadcrumb view (see View Names below).

Available View Names:

HOME, PROCESS, TASK, TASK_DETAIL, CASE_DETAIL, CASE, TECHNICAL_CASE, RELATED_TASK, USER_PROFILE, ABSENCES_MANAGEMENT, DASHBOARD_CONFIGURATION, EDIT_DASHBOARD_DETAILS, PROCESS_VIEWER, PORTAL_MANAGEMENT, NOTIFICATION

Configuration Methods

Configure iFrame templates using the IFrameTaskConfig component.

Note

Always sanitize your parameters before passing them to avoid XSS vulnerabilities. Use SanitizeAPI.escapeForJavascript for dynamic values.

Using IFrameTaskConfig Component

The recommended approach uses the Portal component for type-safe configuration:

<h:body>
   <ui:composition template="/layouts/frame-10.xhtml">
      <ui:define name="content">
         <ic:com.axonivy.portal.components.IFrameTaskConfig
            taskName="Approve Investment"
            taskIcon="si si-bulb"
            isHideTaskName="false"
            caseId="123456"
            isHideCaseInfo="false"
            currentProcessStep="0"
            processSteps='["Create Investment Request", "Approve Investment Request"]'
            isShowAllSteps="true"
            processChainDirection="VERTICAL"
            processChainShape="LINE"
            isHideTaskAction="false"
            isWorkingOnATask="true"
            announcementInvisible="false"
            isCardFrame="true"
            viewName="TASK_DETAIL"
         />

         <!-- Your custom UI content -->
         <h:form>
            <!-- ... -->
         </h:form>
      </ui:define>
   </ui:composition>
</h:body>

Configuration Examples

Configure Task Details

You can customize task details, such as the task name and icon.

<ic:com.axonivy.portal.components.IFrameTaskConfig
   taskName="Approve Investment Request"
   taskIcon="si si-bulb"
   isHideTaskName="false"
/>

Configure Case Information

Customize how case details are displayed and whether to show the “Show Information” button.

<ic:com.axonivy.portal.components.IFrameTaskConfig
   caseId="#{ivy.case.uuid}"
   isHideCaseInfo="false"
/>

Configure Process Steps

<ic:com.axonivy.portal.components.IFrameTaskConfig
   currentProcessStep="1"
   processSteps='["Create Request", "Manager Approval", "Finance Review", "Complete"]'
   isShowAllSteps="true"
   processChainDirection="HORIZONTAL"
   processChainShape="LINE"
/>

Note

Add JSP function tag to your HTML dialog: xmlns:fn="http://xmlns.jcp.org/jsp/jstl/functions"

Configure Task Actions

Control the visibility and behavior of task-related buttons and actions.

<ic:com.axonivy.portal.components.IFrameTaskConfig
   isHideTaskAction="false"
   isWorkingOnATask="true"
/>

Configure Card Frame Layout

<ic:com.axonivy.portal.components.IFrameTaskConfig
   isCardFrame="true"
   announcementInvisible="false"
   viewName="TASK_DETAIL"
/>

Complete Configuration Example

<h:body>
   <ui:composition template="/layouts/frame-10.xhtml">
      <ui:define name="content">
         <ic:com.axonivy.portal.components.IFrameTaskConfig
            taskName="#{data.taskName}"
            taskIcon="si si-file-edit"
            isHideTaskName="false"
            caseId="#{ivy.case.uuid}"
            isHideCaseInfo="false"
            currentProcessStep="#{data.currentStep}"
            processSteps="#{portalComponentUtilsBean.convertToJSON(data.processSteps)}"
            isShowAllSteps="true"
            processChainDirection="HORIZONTAL"
            processChainShape="LINE"
            isHideTaskAction="false"
            isWorkingOnATask="true"
            announcementInvisible="false"
            isCardFrame="true"
            viewName="TASK_DETAIL"
         />

         <h:form id="investmentForm">
            <p:panel header="Investment Request">
               <!-- Your form fields -->
            </p:panel>

            <p:commandButton value="Submit" action="#{logic.submit}" />
            <p:commandButton value="Cancel" action="#{logic.cancel}" />
         </h:form>
      </ui:define>
   </ui:composition>
</h:body>

Developer Tips

Navigation Without Task Completion

If your project has navigation buttons that don’t complete a task (e.g., Cancel), redirect users to the desired page (application home, task list, process list, etc.) directly in the HTML dialog.

Example:

public void cancelTask() {
   // Redirect to task list instead of completing task
   String taskListUrl = PortalNavigatorAPI.buildUrlByKeyword("TASK");
   Ivy.html().sendRedirect(taskListUrl);
}

JavaScript String Sanitization

Always sanitize your data before sending it to prevent XSS attacks. Portal provides the public API SanitizeAPI.escapeForJavascript in the portal-components project.

Example:

import ch.ivy.addon.portalkit.publicapi.SanitizeAPI;

public class TaskBean {
   public String getSafeTaskName() {
      String rawTaskName = getUserInputTaskName();
      return SanitizeAPI.escapeForJavascript(rawTaskName);
   }
}

In your HTML dialog:

<ic:com.axonivy.portal.components.IFrameTaskConfig
   taskName="#{taskBean.safeTaskName}"
/>

Tip

Always sanitize user input, database values, or any dynamic content before passing to Portal components or JavaScript.

Best Practices

1. Use IFrameTaskConfig Component: Prefer the component-based approach over JavaScript configuration

2. Sanitize All Parameters: Use SanitizeAPI.escapeForJavascript for dynamic values

3. Process Steps: Provide clear, descriptive step names for better user experience

4. Task Icons: Use consistent icon styles (Streamline or Font Awesome) across your application

5. Card Frame: Enable isCardFrame for better visual separation of embedded content
