Settings

This guide covers Portal configuration including roles, permissions, variables, and integrations. Settings control global Portal behavior across dashboards, widgets, and administrative features. Proper configuration ensures Portal aligns with your organization’s security policies, business processes, and user experience requirements.

What Settings Control:

  • User interface language and translations

  • Security roles and permissions for Portal features

  • Global variables affecting Portal behavior

  • Document upload restrictions and virus scanning

  • External integrations (announcements, third-party apps, external links)

  • Statistical chart configurations for dashboards

Related Sections:

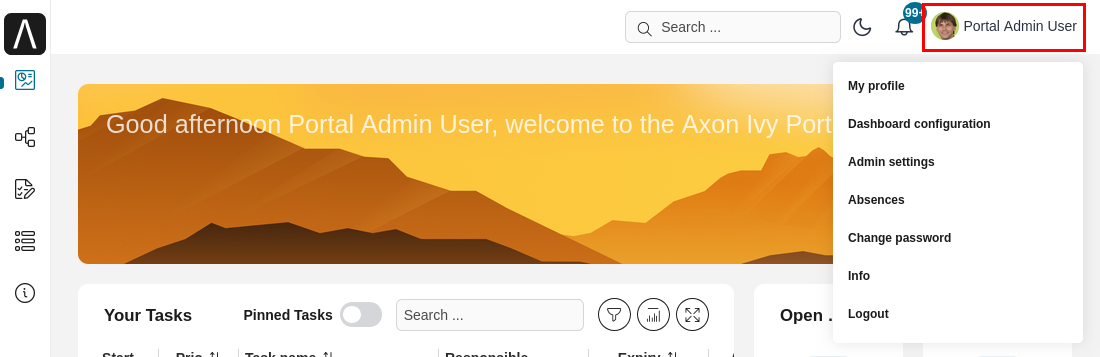

portal-header

Portal Settings Configuration

Portal settings control global behavior and can be configured through multiple methods:

Configuration Methods:

  • Admin Settings UI: See HowTo: Update Portal Settings for user-friendly configuration

  • Variables File: Update portal/config/variables.yaml for development (survives Designer restarts)

  • Engine Cockpit: Configure via Variables

Tip

In development, configure settings in portal/config/variables.yaml to avoid re-configuring after each Designer restart.

Language Settings

HowTo: Add a New Language to Portal

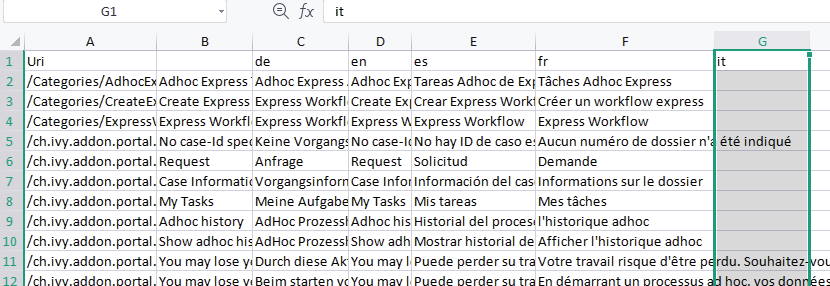

  1. Export CMS Entries

    Export all CMS entries of the Portal to an Excel file

  2. Add Language Column

    • Open the exported Excel file

    • Add a new column at the end with the language locale code (e.g., it for Italian)

    • Refer to Java supported locales for supported locale codes

    export-cms

  3. Translate CMS Entries

    • For each row in the Excel file, add the translated text in the new language column

    • Base your translations on the existing English (en) or German (de) values

    • Ensure all cells in the new language column are filled with appropriate translations

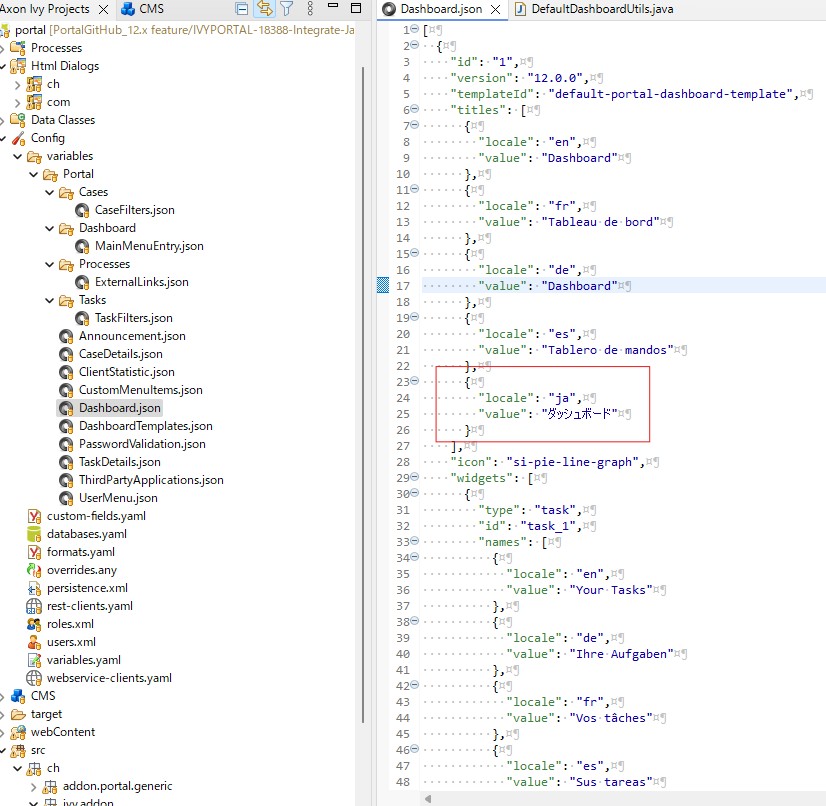

  4. Update JSON Configuration Files

    For each JSON file in portal/config/variables/:

    • Open the file and locate the locale arrays

    • Add a new locale/value pair for your language following the existing pattern

    • Example: {"locale": "it", "value": "Translated text"}

    translate-json

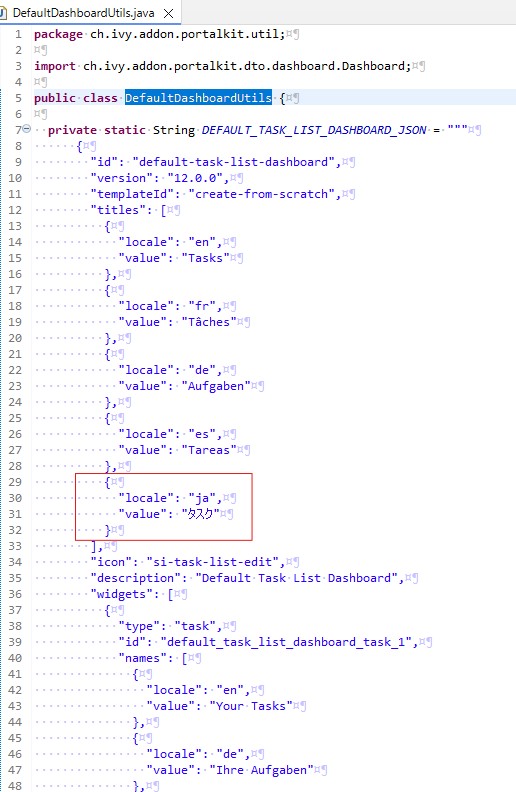

  5. Update Java Source Files

    In DefaultDashboardUtils.java:

    • Add new locale/value entries for your language into default dashboard constants.

    translate-java

  6. Import and Deploy

    • Import the Excel file back into the Portal

    • Redeploy the Portal

Role Configuration

Portal uses specific roles to control administrative access:

Role

Description

AXONIVY_PORTAL_ADMIN

Can access Portal Admin page, configure internal role properties, and create public filters.

Permission Settings

Configure permissions in the Engine Cockpit. All Portal permissions are grouped under “PortalPermissions”.

Important

Portal Permission Support:

The Portal is built as a layer above the Axon Ivy Engine core. Not every core engine permission is automatically honored or supported by the Portal. Supporting every core permission would require significant effort and increase maintenance overhead. If you require a specific engine permission that is not currently supported by the Portal, please contact Axon Ivy support to discuss your requirements.

Note

General Permission Rules:

  • Normal users can only see tasks and cases they can work on

  • Administrators with 🔑TaskReadAll and 🔑CaseReadAll can see all tasks/cases

  • Administrators can interact with, create, update, and delete all workflows

  • Normal users can only update/delete workflows they created and work on assigned tasks

Task Permissions

Add Note

User needs permission: 🔑TaskCaseAddNote

Delegate

Required permissions:

Important

Only tasks ready for user processing can be delegated. Task state cannot be: CREATED, DONE, DESTROYED, RESUMED, FAILED

Reset

Required permissions:

Important

Only works for tasks in states: RESUMED, PARKED, READY_FOR_JOIN, FAILED

Delete

User needs permission: 🔑TaskDestroy

Important

Only works if task state is not DESTROYED or DONE

Reserve

Required permissions:

Important

Only possible if task is in states: CREATED, RESUMED, SUSPENDED

Change Description

User needs permission: 🔑TaskWriteDescription

Important

Terminated tasks cannot be changed. Task state cannot be: DONE, DESTROYED, FAILED

Change Deadline

User needs permission: 🔑TaskWriteExpiryTimestamp

Important

Task cannot be in states: DONE, DESTROYED, FAILED

Change Priority

User needs permission: 🔑TaskWriteOriginalPriority

Important

Task cannot be in states: DONE, DESTROYED, FAILED

Display Additional Options

User needs permission: 🔑TaskDisplayAdditionalOptions

Display Workflow Events

User needs permission: 🔑TaskDisplayWorkflowEventAction

Display Custom Fields

User needs permission: 🔑TaskDisplayCustomFieldsAction

Share Task Details Link

User needs permission: 🔑ShareTaskDetailsLink

Change Expiry Activator

User needs permission: 🔑TaskWriteExpiryActivator

Important

Task cannot be in states: DONE, DESTROYED, FAILED

Read System Tasks

User needs permission: 🔑SystemTaskReadAll

Case Permissions

Add Note

User needs permission: 🔑TaskCaseAddNote

Delete

User needs permission: 🔑CaseDestroy

Important

Case state must be RUNNING

Change Description

User needs permission: 🔑CaseWriteDescription

Important

Case state cannot be DESTROYED

See Related Tasks of Case

Required permissions:

Important

Case state cannot be DESTROYED

Display Show Detail Link

User needs permission: 🔑ShowCaseDetails (not assigned to Everybody by default)

Share Case Details Link

User needs permission: 🔑ShareCaseDetailsLink

Display Custom Fields

User needs permission: 🔑CaseDisplayCustomFieldsAction

Other Permissions

Action

Permission required

Absence

Read

🔑UserReadOwnAbsences or 🔑UserReadAbsences

Create, edit

🔑UserCreateOwnAbsence or 🔑UserCreateAbsence

Delete

🔑UserDeleteOwnAbsence or 🔑UserDeleteAbsence

Read absences of all users

🔑UserReadAbsences

Delete absences of all users

🔑UserDeleteAbsence

Create new absence for all users

🔑UserCreateAbsence

Substitute

Manage substitute

🔑UserCreateSubstitute and 🔑UserReadSubstitutes

Document

Upload, delete

🔑DocumentWrite 🔑DocumentOfInvolvedCaseWrite

Portal permission

Access to full process list, it’s “Processes” on the left menu and link “Show all processes” on Dashboard

🔑AccessFullProcessList

Access to full task list, it’s “Tasks” on the left menu and link “Show full task list” on Dashboard

🔑AccessFullTaskList

Access to full case list, it’s “Cases” on the left menu

🔑AccessFullCaseList

Add note to task/case

🔑TaskCaseAddNote

Display show more note

🔑TaskCaseShowMoreNote

Create public external link, all other users can see that link in the full process list

🔑CreatePublicExternalLink

Dashboard sharing

🔑ShareDashboardLink

Modify notification channels preferences in My Profile page

🔑NotificationChannelsSetting

Role management (Admin Settings)

🔑RoleManagement

News management (Dashboard)

🔑NewsManagement

Password validation settings

🔑PasswordValidation

Read all notes on tasks/cases

🔑NoteReadAllCaseTaskDetails

Virus Scanning Settings

PrimeFaces is delivered with one implementation of the interface that uses VirusTotal. To enable VirusTotal you need to create a community account at the VirusTotal website. You receive an API key once you have an account. To configure the API key add the following snippet to the configuration/web.xml file:

<context-param>
<param-name>primefaces.virusscan.VIRUSTOTAL_KEY</param-name>
<param-value>PUT YOUR API KEY HERE</param-value>
</context-param>

By default, after you configured the context-param in the web XML file, the Virus Scanning is enabled. You can change the variable EnableVirusScanner to false in portal/config/variables.yaml if you want to disable virus scanning.

Reference: How to check if uploaded files contain a virus.

Warning

Files that are checked for viruses are uploaded to VirusTotal. If you may not store the data of your application on servers outside the internal network or a given country, you might want to refrain from using this solution.

Variables

These variables are stored as key-value pairs. They have to be edited in the Engine Cockpit.

Variable

Default value

Description

PortalStartTimeCleanObsoletedDataExpression

0 6 * * *

Cron expression defines the time to clean up data of obsolete users. E.g.: expression for at 6AM every day is 0 6 * * *. Refer to CRON Expression. Restart Ivy engine after changing this variable.

PortalDeleteAllFinishedHiddenCases

false

If set to true, the above cron job runs daily and removes all finished hidden cases on the engine.

Otherwise, just cases which were generated by this Portal will be deleted.

PortalHiddenTaskCaseExcluded

true

By default, Portal will query tasks and cases which are not hidden. If set to false, Portal will ignore this property.

PortalLoginPageDisplay

true

By default, Portal will redirect to Login Page if login is required and the user is unknown. Set to false to redirect to the login error page and hide Logout in the User menu (when you use external authentication and the user is not present in your application user list.)

Configuration

These variables are stored in JSON format. You can edit them in the cockpit, or use the UI on the Portal Admin settings.

Portal Announcement

The standard announcement for Portal is intended to be used for general information (e.g. Downtime, Changes, etc.). This message can be seen by all Portal users.

Filename: variables.Portal.Announcement.json

Data model:

{
    "contents": [
        {
            "language": "en",
            "value": "The announcement content in English"
        }
    ],
    "enabled": false
}

  • contents: list of supported languages and content for each language.

    • language: the language code such as en, de, es, and fr

    • value: the announcement content of that language

  • enabled: the status of the announcement, true shows the announcement

Third Party Applications Linked Into Portal

You can define your custom menu item in the following JSON file. It will be included in the left menu.

Filename: variables.Portal.ThirdPartyApplications.json

Data model:

[
   {
      "id": "284352a58c7a48a2b64be8a946857c7a",
      "displayName": "{\"de\":\"AxonIvy ger\",\"en\":\"AxonIvy\"}",
      "menuIcon": "fa-group",
      "menuOrdinal": 1,
      "name": "{\"de\":\"AxonIvy ger\",\"en\":\"AxonIvy\"}",
      "link": "https://developer.axonivy.com/download"
   }
]

  • id: the identification number of a third-party application. It is an auto-generated UUID.

  • displayName: the display name of the app that is shown in the left menu. Supports multi-language.

  • menuIcon: the style class of the app icon that shows in the left menu.

  • menuOrdinal: index of the app. Used to sort menu items in the left menu.

  • name: the name of third-party app.

  • link: the URL of third-party app.

Portal Statistic Charts

You can define filter logic, appearance, and other settings for all statistic charts that can be used by the Statistic widget of Portal dashboard.

Filename: variables.Portal.CustomStatistic.json

Data model:

{
  "id": "3e188e86a6534324b864167320ef3831",
  "version": "13.1.0",
  "statisticAggregation": {
    "field": "state",
    "type": "standard",
    "kpiField": "InvoiceTotalAmount",
    "aggregationMethod": "avg"
  },
  "filters": [
    {
      "field": "state",
      "values": [
        "DONE",
        "IN_PROGRESS",
        "OPEN"
      ],
      "operator": "in",
      "type": "standard"
    }
  ],
  "permissions": [
    "Everybody"
  ],
  "chartTarget": "task",
  "chartType": "bar",
  "icon": "si-add-circle",
  "refreshInterval": 300,
  "names": [
    {
      "locale": "en",
      "value": "New statistic"
    },
    {
      "locale": "fr",
      "value": "Nouvelle statistique"
    },
    {
      "locale": "de",
      "value": "Neue Statistik"
    },
    {
      "locale": "ja",
      "value": "新しい統計"
    },
    {
      "locale": "es",
      "value": "Nueva estadística"
    }
  ],
  "descriptions": [
    {
      "locale": "en",
      "value": "Demo new statistic"
    },
    {
      "locale": "fr",
      "value": "Démonstration d'une nouvelle statistique"
    },
    {
      "locale": "de",
      "value": "Neue Demo-Statistik"
    },
    {
      "locale": "ja",
      "value": "新しい統計のデモ"
    },
    {
      "locale": "es",
      "value": "Demo nueva estadística"
    }
  ],
  "barChartConfig": {
    "xTitles": [
      {
        "locale": "en",
        "value": "State"
      },
      {
        "locale": "fr",
        "value": "État"
      },
      {
        "locale": "de",
        "value": "Status"
      },
      {
        "locale": "ja",
        "value": "状態"
      },
      {
        "locale": "es",
        "value": "Estatus"
      }
    ],
    "yTitles": [
      {
        "locale": "en",
        "value": "Number of tasks"
      },
      {
        "locale": "fr",
        "value": "Nombre de tâches"
      },
      {
        "locale": "de",
        "value": "Anzahl der Aufgaben"
      },
      {
        "locale": "ja",
        "value": "タスクの数"
      },
      {
        "locale": "es",
        "value": "Número de tareas"
      }
    ],
    "backgroundColors": [
      "#6299f7",
      "#8dc261",
      "#98bffa",
      "#bee3cb",
      "#c8befa",
      "#f5bf9f",
      "#f8da96",
      "#f9908c"
    ]
  }
}

  • id: ID of the widget.

  • version: current version of the widget.

  • statisticAggregation: statistic’s aggregation.

    • field: aggregation (group by) field.

    • type: type of the field, could be standard or custom.

    • kpiField (optional): the numeric custom field on which to perform calculations.

    • aggregationMethod (optional): the calculation method to apply, could be sum, avg, max or min.

    When kpiField and aggregationMethod are not provided, returns count statistics (counting number of tasks or cases). In contrast, the system applies the specified aggregation method to the numeric values in kpiField.

  • filters: filters for the statistic chart.

    • field: field to filter.

    • values: value of the filter to query.

    • operator: operator for the filter.

    • type: type of the field.

  • permissions: permissions for statistic chart.

  • chartTarget: chart’s target, could be case or task.

  • icon: icon for the statistic chart.

  • refreshInterval: number of seconds for the chart auto-refreshed, minimum value is 60.

  • names: name for the statistic chart, multi-language supported.

  • descriptions: description for the statistic chart, multi-language supported.

  • chartType: chart’s type, could be bar, line, pie or number.

    pie: Pie chart

    pie-chart

    bar: Bar chart

    bar-chart

    line: Line chart

    line-chart

    number: Labelled number chart

    number-chart

For some specific charts such as Bar, Pie, Line or Number, there are additional fields:

  • barChartConfig: additional fields for configuring the Bar chart, you can add if chart type is bar

    • xTitles: the multilingual display title for the x-axis

    • yTitles: the multilingual display title for the y-axis

    • backgroundColors : the colors to display the chart

  • lineChartConfig: additional fields for configuring the Line chart, you can add if chart type is line

    • xTitles: the multilingual display title for the x-axis

    • yTitles: the multilingual display title for the y-axis

    • backgroundColors : the colors to display the chart

  • pieChartConfig: additional fields for configuring the Pie chart, you can add if chart type is pie

    • backgroundColors : the colors to display the chart

  • numberChartConfig: additional fields for configuring the Number chart, you can add if chart type is number

    • hideLabel: toggle to show label of the number chart
