Configure Process Widget

The process widget displays a list of available processes with four different display modes: compact (process list), combined (process with tasks/cases), full (process details), and image (process with visual representation). Each mode provides different levels of detail and interaction.

Define Process Widget

The process widget displays processes in one of four modes. Refer to Process List Widget for widget behavior details.

Configuration Example

The basic structure of the JSON of a process widget is as follows:

{
   "type": "compact-process",
   "id": "process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      },
      {
         "locale": "de",
         "value": "Prozess-Widget"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 4,
      "h": 6
   },
   "showFullscreenMode": true,
   "showWidgetInfo": true
}

JSON Configuration Reference

Required Properties

Property	Type	Description
`type`	string	Widget type. Options: `"compact-process"`, `"combined-process"`, `"full-process"`, `"image-process"`
`id`	string	Unique identifier for the widget
`names`	array	Multilingual display names. Each entry: `{"locale": "en", "value": "Name"}`
`layout`	object	Widget position and size (see Layout Properties below)

Layout Properties

Property	Type	Description
`x`	number	Column position in 12-column grid (0-11). CSS left = `x / 12 * 100%`
`y`	number	Row position. CSS top = `y / 12 * 100%`
`w`	number	Width in grid columns (1-12). Pixel width = `60 * w + 20 * (w - 1)`
`h`	number	Height in grid rows (min 4). Pixel height = `60 * h + 20 * (h - 1)`
`styleClass`	string	(Optional) CSS classes for custom styling
`style`	string	(Optional) Inline CSS styles

Display Properties

Property	Type	Default	Description
`showFullscreenMode`	boolean	`true`	Show/hide fullscreen mode icon
`showWidgetInfo`	boolean	`true`	Show/hide widget information icon

Process Widget Types

The type property determines the display mode:

compact-process - Compact list of processes with icons and names
combined-process - Single process with its related tasks and cases
full-process - Detailed view of a single process
image-process - Visual representation of a single process with image

Each mode has specific configuration requirements. Refer to the sections below for mode-specific properties.

Compact Mode

Compact mode displays a list of processes with icons and names, ideal for showing multiple processes in a compact space.

Configuration Example

Below is a standard JSON definition of a Process widget in compact mode:

{
   "type": "compact-process",
   "id": "compact-process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Available Processes"
      },
      {
         "locale": "de",
         "value": "Verfügbare Prozesse"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 4,
      "h": 6
   },
   "processPaths": [
      "designer/portal-developer-examples/Start Processes/Request/createNewRequest.ivp",
      "designer/portal-developer-examples/Start Processes/Request/collectDataRequest.ivp"
   ],
   "categories": ["/Categories/Showcase/Customized", "/Categories/Showcase/PortalDialogExample"],
   "sorting": "SORTING_INDEX",
   "enableQuickSearch": true,
   "showFullscreenMode": true,
   "showWidgetInfo": true
}

Compact Mode Properties

Property	Type	Default	Description
`processPaths`	array	(all processes)	IWebStartable identifiers of specific processes to display
`categories`	array	(all processes)	CMS URI of process categories. Shows all processes in these categories
`sorting`	string	`"ALPHABETICALLY"`	Sort order: `"ALPHABETICALLY"` or `"SORTING_INDEX"` (requires custom field)
`enableQuickSearch`	boolean	`true`	Enable quick search textbox for process names

Note

If both processPaths and categories are defined, processPaths takes precedence
If neither is defined, all available processes are displayed

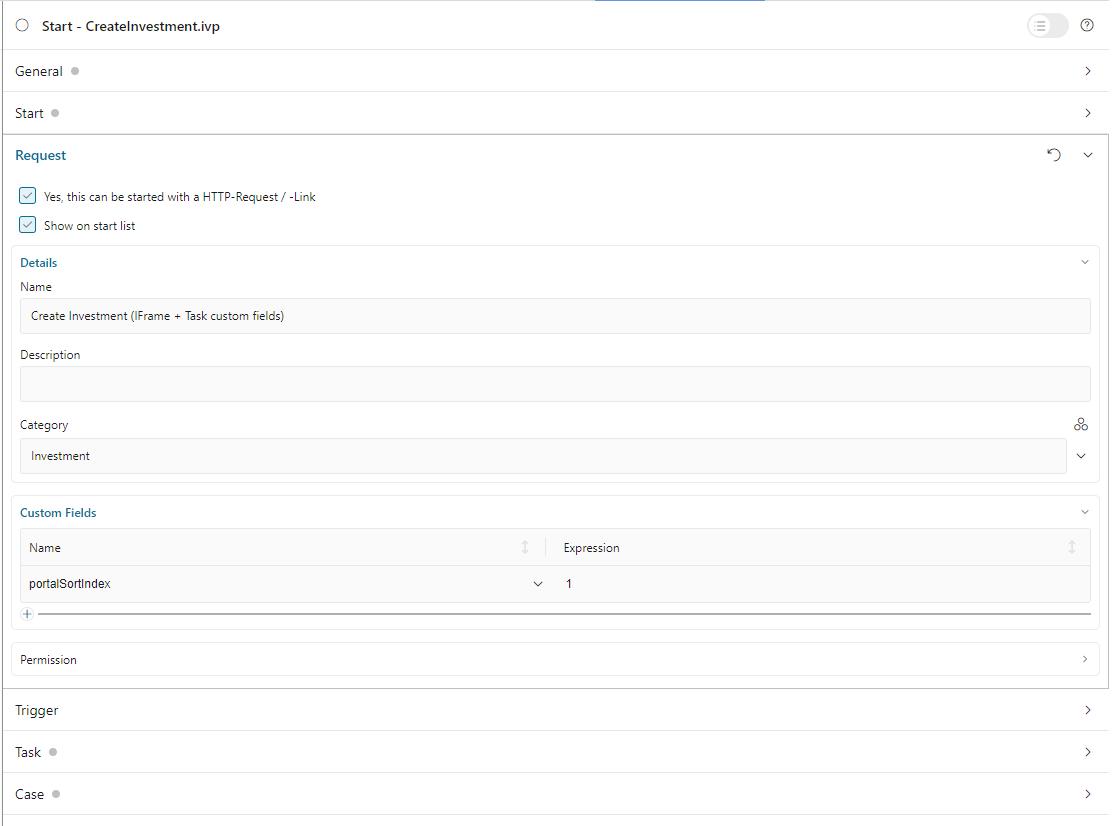

For SORTING_INDEX mode, define custom field portalSortIndex with numeric value in process start

dashboard-process-sort-index

Tip

Recommended compact mode size: Width 3-5 columns, Height 5-8 rows for optimal process list display.

Combined Mode

Combined mode displays a single process along with its related tasks and cases, providing a comprehensive view of process execution status.

Configuration Example

Below is a standard JSON definition of a Process widget in combined mode:

{
   "type": "combined-process",
   "id": "combined-process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Payment Process Overview"
      },
      {
         "locale": "de",
         "value": "Zahlungsprozess-Übersicht"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 8,
      "h": 9
   },
   "processPath": "designer/portal-developer-examples/Start Processes/CreateTestData/createNewPayment.ivp",
   "rowsPerPage": 5,
   "showFullscreenMode": true,
   "showWidgetInfo": true
}

Combined Mode Properties

Property	Type	Default	Description
`processPath`	string	(required)	IWebStartable identifier of the process to display with its tasks/cases
`rowsPerPage`	number	`5`	Number of tasks/cases displayed per page

Tip

Recommended combined mode size: Width 6-12 columns, Height 8-12 rows to accommodate process details and related items.

Full mode

Full mode displays detailed information about a single process, including description, start options, and metadata.

Configuration Example

Below is a standard JSON definition of a Process widget in full mode:

{
   "type": "full-process",
   "id": "full-process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Process Details"
      },
      {
         "locale": "de",
         "value": "Prozessdetails"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 6,
      "h": 8
   },
   "processPath": "designer/portal-developer-examples/Start Processes/CreateTestData/createNewPayment.ivp",
   "showFullscreenMode": true,
   "showWidgetInfo": true
}

Full Mode Properties

Property	Type	Description
`processPath`	string	IWebStartable identifier of the process to display in detail

Tip

Recommended full mode size: Width 5-8 columns, Height 6-10 rows for complete process information display.

Image Mode

Image mode displays a process with its associated image/icon, providing a visual representation alongside process information.

Configuration Example

Below is a standard JSON definition of the Process widget in image mode:

{
   "type": "image-process",
   "id": "image-process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Featured Process"
      },
      {
         "locale": "de",
         "value": "Ausgewählter Prozess"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 4,
      "h": 6
   },
   "processPath": "designer/portal-developer-examples/Start Processes/CreateTestData/createNewPayment.ivp",
   "showFullscreenMode": true,
   "showWidgetInfo": true
}

Image Mode Properties

Property	Type	Description
`processPath`	string	IWebStartable identifier of the process to display with its image

Tip

Recommended image mode size: Width 3-5 columns, Height 4-7 rows for optimal process image and info display.

Note

The process image is configured in the process properties within the Axon Ivy Designer.
