Configure Case Widget

The case widget displays an interactive, customizable list of cases with advanced filtering, sorting, and search capabilities. It supports custom columns (including custom action buttons), pre-configured filters, quick search across multiple fields, and multi-language support for custom string fields via CMS.

Define Case Widget

The case widget displays cases with full control over columns, filters, sorting, and layout. Refer to Case List Widget for widget behavior details.

Configuration Example

Below is a sample JSON definition of the case widget in the Portal dashboard.

{
   "type": "case",
   "id": "case-widget",
   "names": [
      {
         "locale": "en",
         "value": "Your Cases"
      },
      {
         "locale": "de",
         "value": "Ihre Vorgänge"
      }
   ],
   "layout": {
      "x": 0,
      "y": 0,
      "w": 10,
      "h": 9,
      "style": "text-color: blue;",
      "styleClass": "your-widget-class"
   },
   "sortField": "name",
   "rowsPerPage": 20,
   "showWidgetInfo": true,
   "showFullscreenMode": true,
   "isTopMenu": false,
   "columns": [
      {
         "field": "id"
      },
      {
         "field": "name",
         "visible": "false"
      },
      {
         "field": "description"
      },
      {
         "field": "creator"
      },
      {
         "field": "state",
         "headers": [
         {
            "locale": "en",
            "value": "State"
         },
         {
            "locale": "de",
            "value": "Status"
         }
         ]
      },
      {
         "field": "startTimestamp"
      },
      {
         "field": "actions"
      }
   ]
}

JSON Configuration Reference

Required Properties

Property	Type	Description
`type`	string	Widget type. Must be `"case"` for case widget
`id`	string	Unique identifier for the widget
`names`	array	Multilingual display names. Each entry: `{"locale": "en", "value": "Name"}`
`layout`	object	Widget position and size (see Layout Properties below)
`columns`	array	Column configurations (see Columns section below)

Layout Properties

Property	Type	Description
`x`	number	Column position in 12-column grid (0-11). CSS left = `x / 12 * 100%`
`y`	number	Row position. CSS top = `y / 12 * 100%`
`w`	number	Width in grid columns (1-12). Pixel width = `60 * w + 20 * (w - 1)`
`h`	number	Height in grid rows (min 5). Pixel height = `60 * h + 20 * (h - 1)`
`styleClass`	string	(Optional) CSS classes for custom styling
`style`	string	(Optional) Inline CSS styles

Tip

Recommended case widget size: Width 8-12 columns, Height 8-12 rows for optimal table display with pagination.

Display & Behavior Properties

Property	Type	Default	Description
`sortField`	string	(none)	Default column for sorting (e.g., `"name"`, `"startTimestamp"`)
`sortDescending`	boolean	`false`	Sort direction. `false` = ascending, `true` = descending
`rowsPerPage`	number	`10`	Number of cases displayed per page
`showWidgetInfo`	boolean	`true`	Show/hide widget information icon
`showFullscreenMode`	boolean	`true`	Show/hide fullscreen mode icon
`enableQuickSearch`	boolean	`false`	Enable quick search text box
`isTopMenu`	boolean	`false`	`true` = top-level nav item, `false` = under Dashboard menu

Columns Configuration

Each column object in the columns array:

Property	Type	Default	Description
`field`	string	(required)	Column field name (see Standard Columns below)
`visible`	string	`"true"`	Column visibility: `"true"` or `"false"`
`quickSearch`	string	`"false"`	Include in quick search: `"true"` or `"false"`
`headers`	array	(none)	Multilingual column headers: `[{"locale": "en", "value": "Header"}]`
`type`	string	`"STANDARD"`	Column type: `"STANDARD"` or `"CUSTOM"`
`style`	string	(none)	Inline CSS for custom columns (e.g., `"width: 110px"`)

Standard Column Fields

id - Case ID
Pin - Pin button for case
name - Case name
description - Case description
state - Case business state
creator - Case creator
startTimestamp - Creation date and time
endTimestamp - End date and time
owner - List of case owners
category - Case category
actions - Action buttons (details, destroy, etc.)

Filters Configuration

The filters array defines pre-configured filter conditions:

Property	Type	Description
`field`	string	Column field name to filter
`values`	array	Filter values (format depends on field type)
`operator`	string	Filter operator (see Filter Conditions section)
`type`	string	`"standard"` or `"custom"`

Note

For detailed filter configuration, see the Filter Conditions section below.

Custom Columns

The Portal supports custom fields for a case. You can show them on the case widget as a column.

Traditional Custom Columns

You can predefine which columns to display, along with other attributes such as filters, formats, and styles. Below is a standard JSON example of a custom column.

{
   ...

   "columns": [
      {
         "type": "CUSTOM",
         "field": "HIDE",
         "style": "width: 110px"
      }
   ]
}

Besides the attributes explained in the previous section, a custom column has two differences:

type: type of the widget column. There are two options: STANDARD and CUSTOM.

field: this attribute is the name of the case’s custom field which will be used to get data for the column.

Important

Portal only displays custom fields declared in the custom-fields.yaml file. Refer to Custom Fields Meta Information for more information.

Custom Action Button Columns

Portal supports creating custom action buttons as a column in case widget for specific needs. By clicking on these buttons, a custom process is triggered.

Follow these steps to implement it:

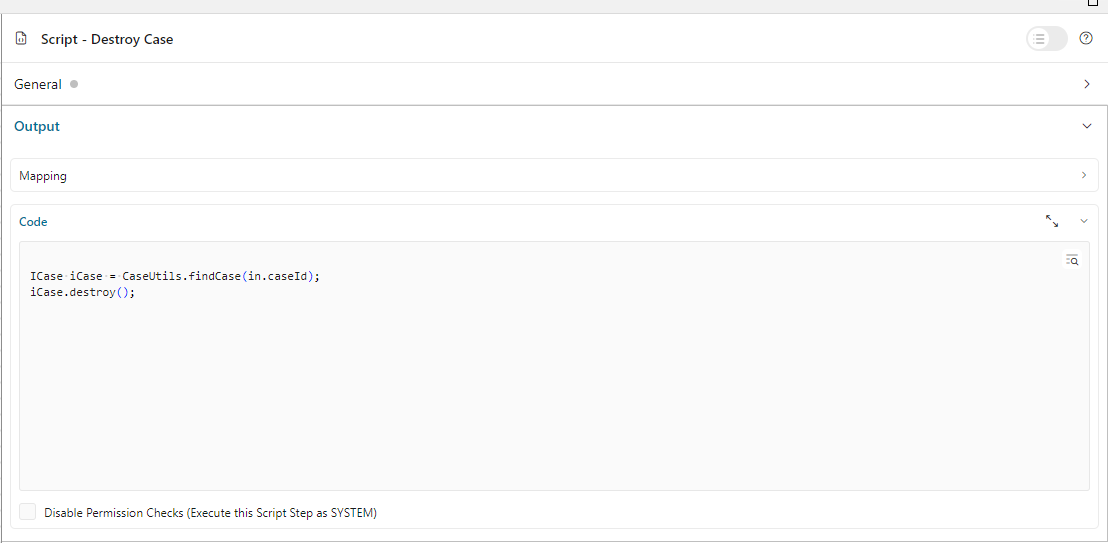

#. Create a new process that will be triggered after clicking on the custom action button. In this process, define a request start event that accepts the uuid parameter. When the Custom Action button on the case details page is clicked, Portal will call this process and pass the case UUID as the uuid parameter.

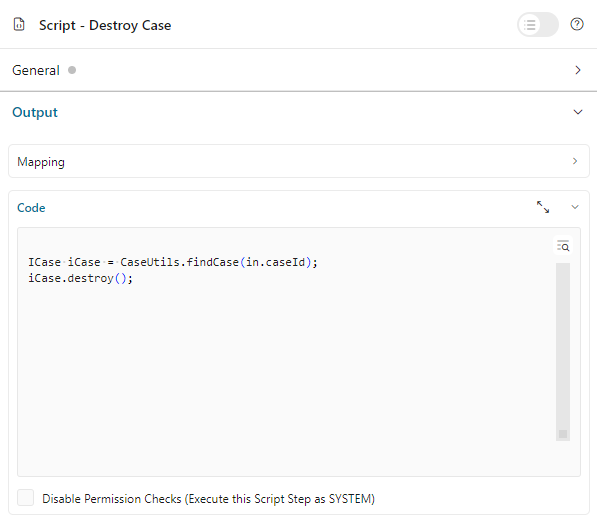

Design and implement the action/script for the custom action within this process.
Describe the custom action button in custom-fields.yaml.
CustomFields:
   Cases:
      DestroyCaseAction:
         Label: Destroy Case Action
         Category: Custom Case Action
         Icon: si si-controls-play
         IsCustomAction: true
IsCustomAction: true is mandatory to inform Portal that it is an action button.

For the Icon, please refer to the streamline icon showcase available in Html Dialog Demos on Axon Ivy Market.

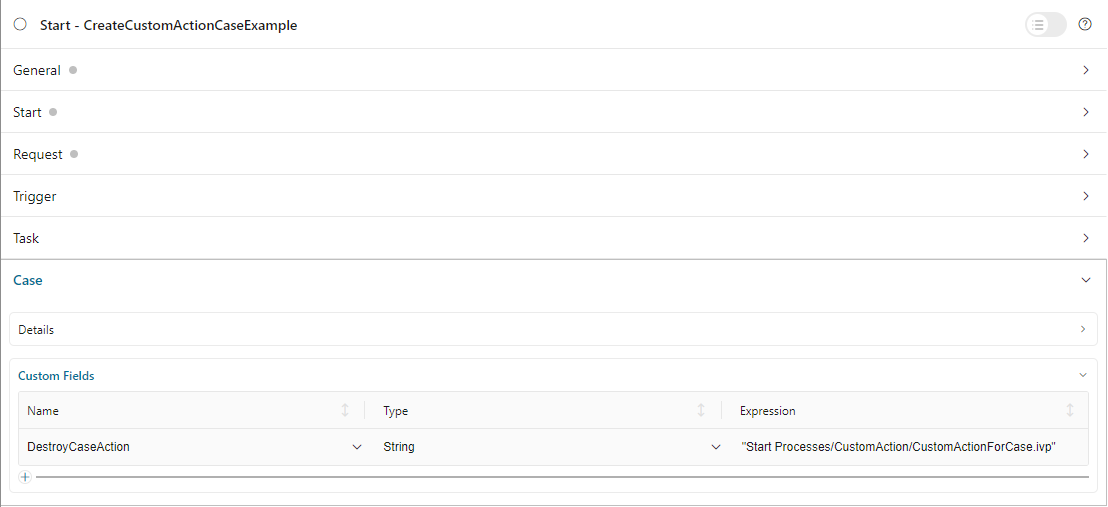

On the process start of the main process, assign a custom field to it.

Filter Conditions

You can predefine filter conditions for most columns of the case widget. Each column has different conditions: some accept only a list, some accept only a string, and others require a string in a specific format, such as date-time. Please refer to Complex Filter for more details.

Base structure of filter json:

{
   ...

   "columns": [
      {
         "field": "name"
      }
   ],
   "filters" : [
      {
         "field" : "name",
         "values" : [ "Mike ", "Nam" ],
         "operator" : "contains",
         "type" : "standard"
      }
   ]
}

field: filter field name corresponding with column name

values: filter value, could be a list, a string or a number

operator: filter operator, operators can be difference depend on each field type.

String column: is, is_not, empty, not_empty, contains, not_contains, start_with, not_start_with, end_with, not_end_with

Number column: between, not_between, empty, not_empty, equal, not_equal, less, less_or_equal, greater, greater_or_equal

Date column: today, yesterday, is, is_not, before, after, between, not_between, current, last, next, empty, not_empty

type: standard for a standard column or custom for a custom column

Date type additional field:

periodType: string value, YEAR, MONTH, WEEK, DAY

from: string value. E.g.: “03/19/2024”

to: string value. E.g.: “01/01/2024”

Number type additional field:

from: string value. E.g.: “3.0”

to: string value. E.g.: “55.2”

There are additional fields dependent on the operator and many specific filters for each field type. Below is the list of filterable columns and their corresponding filter conditions.

Tip

We encourage utilizing dashboard configurations to edit widgets and then leveraging the export dashboard feature to ensure better expectations when customizing these widgets.

Standard Column:

name

{
   ...

   "columns": [
      {
         "field": "name"
      }
   ],
   "filters" : [
      {
         "field" : "name",
         "values" : [ "Mike ", "Nam" ],
         "operator" : "contains",
         "type" : "standard"
      }
   ]
}

This column accepts all operators available for String column. Additionally, it accepts values as a list of strings .

description

{
   ...

   "columns": [
      {
         "field": "description"
      }
   ],
   "filters" : [
      {
         "field" : "description",
         "values" : [ "Leave" ],
         "operator" : "not_end_with",
         "type" : "standard"
      }
   ]
}

This column accepts all operators available for String column. Additionally, it accepts values as a list of strings .

state: Case business state

{
   ...

   "columns": [
      {
         "field": "state"
      }
   ],
   "filters" : [
      {
         "field" : "state",
         "values" : [ "DESTROYED", "DONE", "OPEN" ],
         "operator" : "in",
         "type" : "standard"
      }
   ]
}

This column only accepts a list of case business state names as the filter value. The available filter operator is in.

Refer to Case business states for available case business states.

creator

{
   ...

   "columns": [
      {
         "field": "creator"
      }
   ],
   "filters" : [
      {
         "field" : "creator",
         "values" : [ "backendDev2", "gm1" ],
         "operator" : "in",
         "type" : "standard"
      },
      {
         "field" : "creator",
         "operator" : "current_user",
         "type" : "standard"
      }
   ]
}

This column only accepts a list of usernames as filter value for the case creator’s username. The available filter operators are in, not_in and current_user. The current_user operator does not require value field.

startTimestamp and endTimestamp: created date and finished date of the Case

{
   ...

   "columns": [
      {
         "field": "creator"
      }
   ],
   "filters" : [
      {
         "field" : "startTimestamp",
         "to" : "03/12/2024",
         "operator" : "after",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "operator" : "current",
         "periodType" : "MONTH",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "from" : "03/01/2024",
         "to" : "03/17/2024",
         "operator" : "between",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "operator" : "last",
         "periods" : 2,
         "periodType" : "YEAR",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "from" : "03/19/2024",
         "operator" : "is",
         "type" : "standard"
      },
      {
         "field" : "startTimestamp",
         "operator" : "empty",
         "type" : "standard"
      }
   ]
}

This column accepts all operators available for Date column. Fields may vary depending on the operator. The JSON example above covers most use cases for the Date field. Acceptable date formats: dd.MM.yyyy, dd.MM.yyyy HH:mm, MM/dd/yyyy and MM/dd/yyyy HH:mm.

category

{
   ...

   "columns": [
      {
         "field": "category"
      }
   ],
   "filters" : [
      {
         "field" : "category",
         "values" : [ "LeaveRequest", "Leave_Request_1" ],
         "operator" : "in",
         "type" : "standard"
      }
   ]
}

The available filter operators are in, not_in, no_category, contains and not_contains. The no_category operator does not require value field.

Custom Field Column:

Custom Columns are using the same operator as Standard Column
type field must be custom

{
   ...

   "columns": [
      {
         "field": "InvoiceNumber"
      }
   ],
   "filters" : [
      {
         "field" : "InvoiceNumber",
         "value" : "566.00",
         "operator" : "less_or_equal",
         "type" : "custom"
      }
   ]
}

Quick Search

The Quick search is a useful function for users to quickly search the cases within the case widget. The configuration of the quick search has two attributes:

enableQuickSearch: enables the quick search feature for the widget.

quickSearch: indicates that a column is searchable using the quick search feature.

If you set the enableQuickSearch attribute to false, the quick search feature will be disabled, regardless of the quickSearch attribute’s value.

Conversely, if you set the enableQuickSearch attribute to true, the quick search feature will search within the values of all columns that have the quickSearch attribute set to true. If you haven’t assigned the quickSearch attribute to any column in the case widget, the quick search feature will default to searching the name and description fields.

Below are the definition of these attributes:

enableQuickSearch: to enable/disable the quick search feature, set the enableQuickSearch field of the case widget as shown below.
{
   ...
   "type": "case",
   "id": "case_98ae4fc1c83f4f22be5244c8027ecf40"
   ...
   "enableQuickSearch": "true",
   ...
}
Valid values:

true: show the quick search text box.

false: hide the quick search text box.

not defined: hide the quick search text box.
quickSearch: to choose which columns can be searched by the quick search feature, set the quickSearch field for each column as shown below.
{
   ...
   "type": "case",
   "id": "case_98ae4fc1c83f4f22be5244c8027ecf40"
   ...
   "columns": [
      {
         "field": "id",
         "quickSearch": "false"
      },
      ...
   ]
   ...
}
Valid values:

true: apply quick search for this column.

false: do not apply quick search for this column.

not defined: the name and description columns are true, other columns are false by default.

Multi-Language Support for Custom String Fields

With the Multi-Language Support for Custom Fields feature, we enable the provision of values in a custom field in multiple languages. The field content is displayed based on the language selected in the custom field.

Important

Portal only supports Multi-Language for Custom Fields with TYPE: STRING.

Enabling Multi-Language Support

To allow a custom field to retrieve multilingual values from the CMS, set the HasCmsValue attribute to true in the corresponding custom-field yaml file configuration. Otherwise, the logic remains unchanged, and the custom field uses the static value. Additionally, the value must be entered and maintained in the CMS in multiple languages.

Following this path to add your custom field values: /CustomFields/Cases/{fieldName}/Values/{value} Please follow this Localize Label, Description, Category and Values to get more information.

Example YAML Configuration

Country:
   Label: Country
   Description: Country description
   HasCmsValues: true
   TYPE: STRING

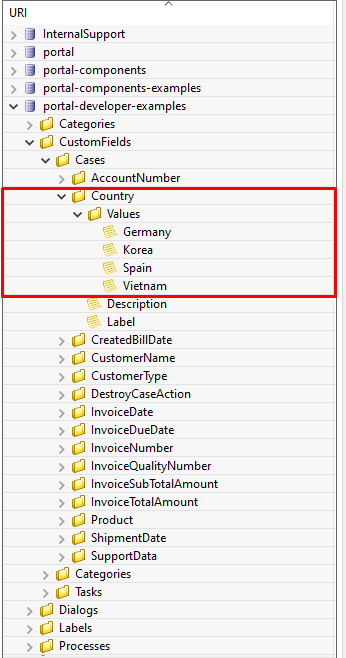

In your CMS, the path should be /CustomFields/Cases/Country/Values/Vietnam, /CustomFields/Cases/Country/Values/Korea or /CustomFields/Cases/Country/Values/Germany.

Result

If HasCmsValues is set with true, the values from the CMS are used.
If the values are entered and translated in the CMS, then the custom field is displayed based on the selected language.
If the translation for a value is missing in the CMS, the static value from the entry is used instead.

Sorting, Filtering, and Searching with Multi-Language Custom Fields

Sorting

HasCmsValues = false or not set. Sorting is performed as usual based on the stored values.
HasCmsValues = true. Sorting is performed based on values translated in the currently selected language.

Note

If HasCmsValues = true but a translation is missing in a specific language, only the translated values are sorted.

Searching

HasCmsValues = false or not set. The search is performed as usual based on the stored value.
HasCmsValues = true. The search is conducted in both the CMS translations and the original value.

Example: When language is Spanish, a user can search for Corea or the original value Korea.

Filtering

HasCmsValues = false or not set. Filtering is performed as usual based on the stored value.
HasCmsValues = true. The filter is conducted in both the CMS translations and the original value.

Important

When enabling the Multi-Language for Custom Fields, only accepted CONTAINS operator.

Tip

If a value needs to be filtered in multiple languages, all corresponding translations must be in the filter.

Conclusion

With Multi-Language Support for Custom Fields, we enable flexible and dynamic provision of field content in multiple languages. The functionalities for searching, sorting, and filtering have been adapted accordingly to ensure consistent behavior for multilingual content.
