Task Item Details

TaskItemDetails is a built-in component of Portal which contains role, user, task, case, and time information that users can interact with. To show the needed task information, configure the TaskItemDetails component via the Portal variable rather than overriding concepts.

Each TaskItemDetails contains

Data and Description 1
Documents 2
Histories 3
Custom panels (widgets)

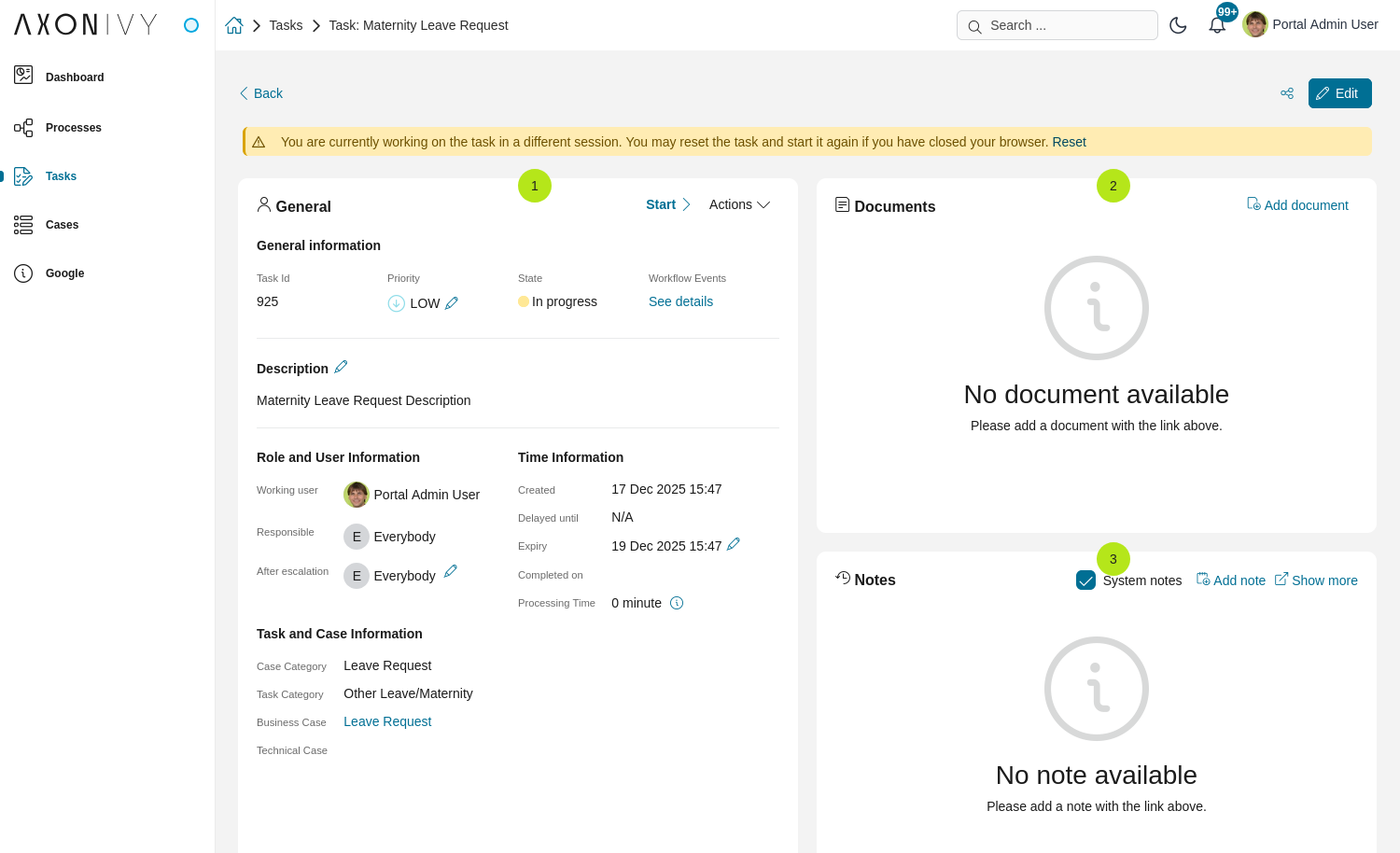

task-standard

Important

All visible widgets will be configured in Variable Portal.TaskDetails.

How to configure widgets in task details

Settings of all visible widgets on task details page are saved in variable Portal.TaskDetails.
Cockpit Administrator can configure widgets via variable Portal.TaskDetails on Cockpit settings page.

Default configuration includes 3 widgets.

[
   {
      "id": "default-task-detail",
      "filters": {
         "categories" : ["support"],
         "states" : ["DONE", "OPEN"]
      },
      "widgets":
      [
         {
            "id": "information",
            "type": "information",
            "layout": {
               "x": 0, "y": 0, "w": 6, "h": 6
            }
         },
         {
            "id": "history",
            "type": "history",
            "layout": {
               "x": 6, "y": 6, "w": 6, "h": 6
            }
         },
         {
            "id": "document",
            "type": "document",
            "layout": {
               "x": 6, "y": 0, "w": 6, "h": 6
            }
         },
         {
            "id": "custom",
            "type": "custom",
            "layout": {
               "x": 0, "y": 6, "w": 6, "h": 6
            },
            "data" : {
               "processPath": "Start Processes/TaskDetailsCustomWidgetExample/invoiceDetails.ivp",
               "params": {
                  "startedTaskId": "task.id",
                  "startedTaskCategory": "task.category",
                  "invoiceId": "000001573",
                  "invoiceDescription": "task.customFields.invoiceDescription"
               }
            }
         }
      ]
   }
]

Structure of each task details layout in variable Portal.TaskDetails:

id: ID which used to identify layout.

widgets: definition of widgets in layout.

filters: conditions to determine which tasks can use the layout. There are 2 filter types: categories (task categories) and states (task business states).
Structure of each widget inside task details layout in variable Portal.TaskDetails:

type: Supported values: information, document, history, custom

x: HTML DOM Style left will be calculated by formula x / 12 * 100%

y: HTML DOM Style top will be calculated by formula y / 12 * 100%

w: HTML DOM Style width will be calculated by formula 60 * w + 20 * (w - 1)

h: HTML DOM Style height will be calculated by formula 60 * h + 20 * (h - 1)

styleClass (optional): add CSS Classes to HTML DOM

style (optional): add inline style to HTML DOM (avoid inline styles when possible).

data (for custom widget): data for custom widget using iframe
type: type of custom widget which is not using IFrame. Supported values: taskItemDetailCustomPanelTop and taskItemDetailCustomPanelBottom.

url: URL for external website

processPath: the user-friendly request path of the Ivy process which will be displayed in the custom widget

params: parameters for the Ivy process above, each parameter can be defined as follows:
Key name that will be parameter name for the Ivy process above. Note: don’t use taskId.

Key value for task has to start with task.. Supported are two values: task.id, task.category.

Key value for task custom fields have to start with task.customFields., follow by the custom field name.

Other key values will be treated as hard coded values.

Important

Do not change type of widgets. You can change x, y, w and h to update size and position of widgets.
x, y, w and h must be integers.
x + w must not be larger than 12.
For data of custom widget, if you input processPath, don’t input url. You can only use one of them.
We support all task business states for filter type states. Please refer to Task Business States to check for available task business states.

Show Custom Panels (Widgets)

Tip

To quickly understand how the JSON of custom task details looks like.

Refer to variables.Portal.TaskDetails.json file in portal-developer-examples/resources/files project.
Copy to the corresponding application folder located in the designer.
- E.g., AxonIvyDesigner/configuration/applications/designer
Create some destroyed task or start the process Start Processes/TaskDetailsCustomWidgetExample/SalesManagement.ivp in portal-developer-examples project.
Go to the example homepage by the process Start Processes/ExamplePortalStart/DefaultApplicationHomePage.ivp
Lastly, go to task details to check the new custom layout.

About how to configure Variables, refer to Axon Ivy Variables

There are two steps for adding new custom panels.

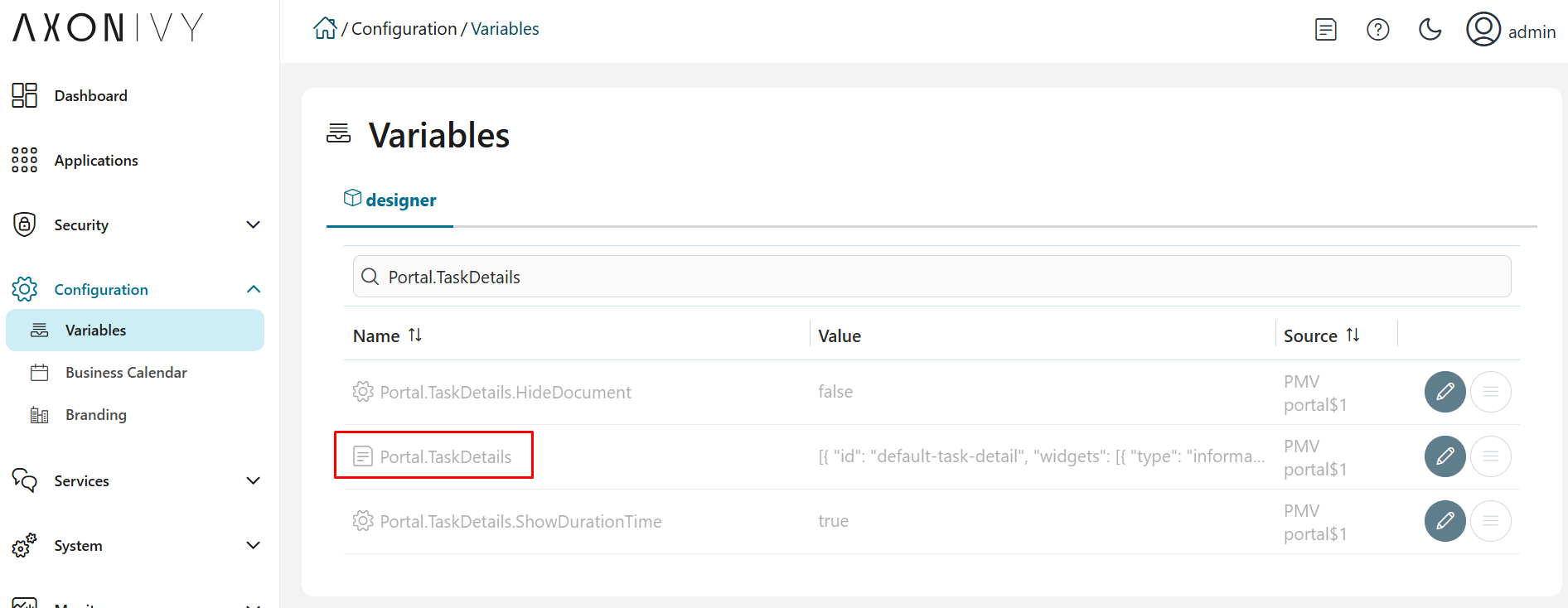

The Engine administrator has to configure variable Portal.TaskDetails on Cockpit Page to add custom widgets.

Example Portal.TaskDetails with layout configuration includes 4 custom widgets:

[
   {
      "id": "default-task-detail",
      "widgets":
         [
            {
               "type": "information",
               "layout": {
                  "x": 0, "y": 4, "w": 6, "h": 12
               }
            },
            {
               "type": "document",
               "layout": {
                  "x": 6, "y": 4, "w": 6, "h": 6
               }
            },
            {
               "type": "history",
               "layout": {
                  "x": 6, "y": 10, "w": 6, "h": 6
               }
            },
            {
               "type": "custom",
               "layout": {
                  "x": 0, "y": 0, "w": 12, "h": 4
               },
               "data" : {
                  "type": "taskItemDetailCustomPanelTop"
               }
            },
            {
               "type": "custom",
               "layout": {
                  "x": 0, "y": 16, "w": 6, "h": 4
               },
               "data" : {
                  "type": "taskItemDetailCustomPanelBottom"
               }
            }
         ]
      }
  ]

To customize task details using an IFrame, please make sure

Must input parameter url if you want to use external URL.
Must input parameter ivy if you want to start an Ivy process.

If you usestart process, you can predefine parameter for params.

Customized task details using external URL

[
   {
      "id": "task-detail",
      "widgets": [
         {
            "type": "information",
            "layout": {
            "x": 0, "y": 0, "w": 4, "h": 12
            }
         },
         {
            "type": "custom",
            "layout": {
            "x": 6, "y": 0, "w": 8, "h": 6
            },
            "data" : {
            "url": "https://www.lucide.dev/"
            }
         }
      ]
   }
]

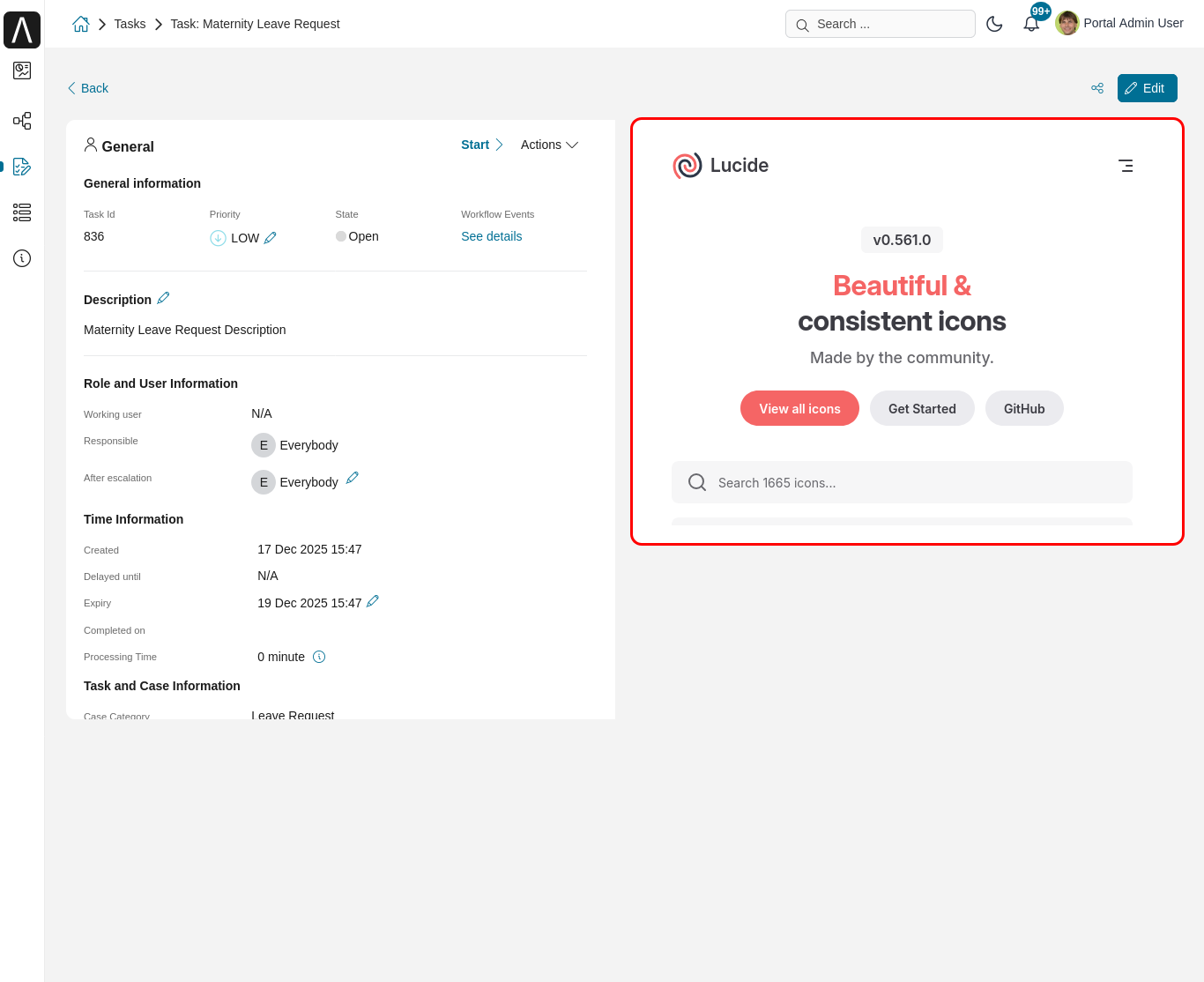

Result

task-customized-iframe-url

Customized task details using a process start, please refer to TaskDetailsCustomWidgetExample in portal-developer-examples for details.

[
   {
      "id": "task-detail",
      "widgets": [
         {
            "type": "information",
            "layout": {
            "x": 0, "y": 0, "w": 6, "h": 12
            }
         },
         {
            "type": "history",
            "layout": {
            "x": 6, "y": 6, "w": 6, "h": 6
            }
         },
         {
            "type": "custom",
            "layout": {
            "x": 0, "y": 6, "w": 6, "h": 6
            },
            "data" : {
               "processPath": "Start Processes/TaskDetailsCustomWidgetExample/invoiceDetails.ivp",
               "params": {
                  "startedTaskId": "task.id",
                  "startedTaskCategory": "task.category",
                  "invoiceId": "000001573",
                  "invoiceDescription": "task.customFields.invoiceDescription"
               }
            }
         }
      ]
   }
]

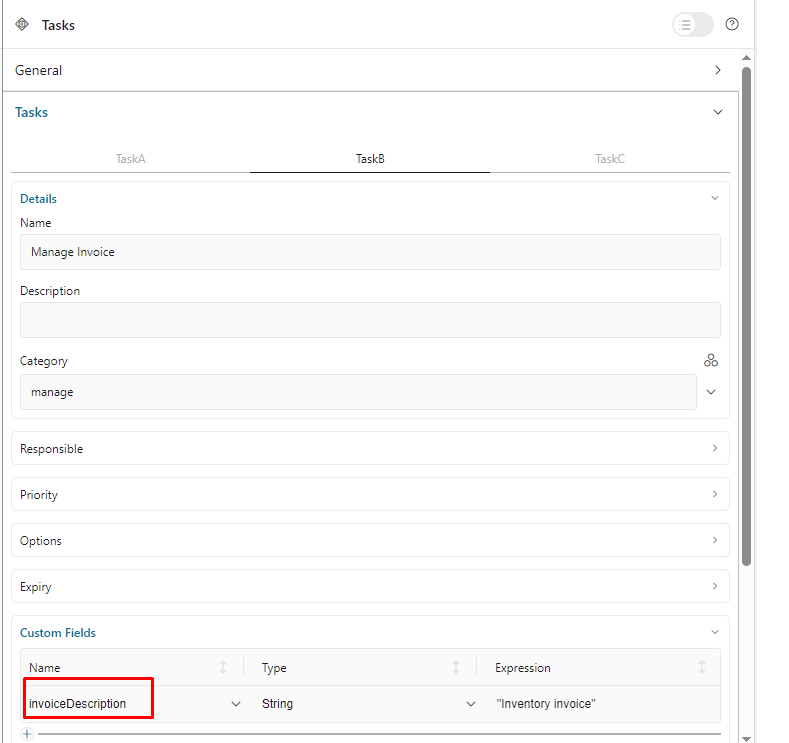

Provide task custom field

task-customized-iframe-process-custom-field

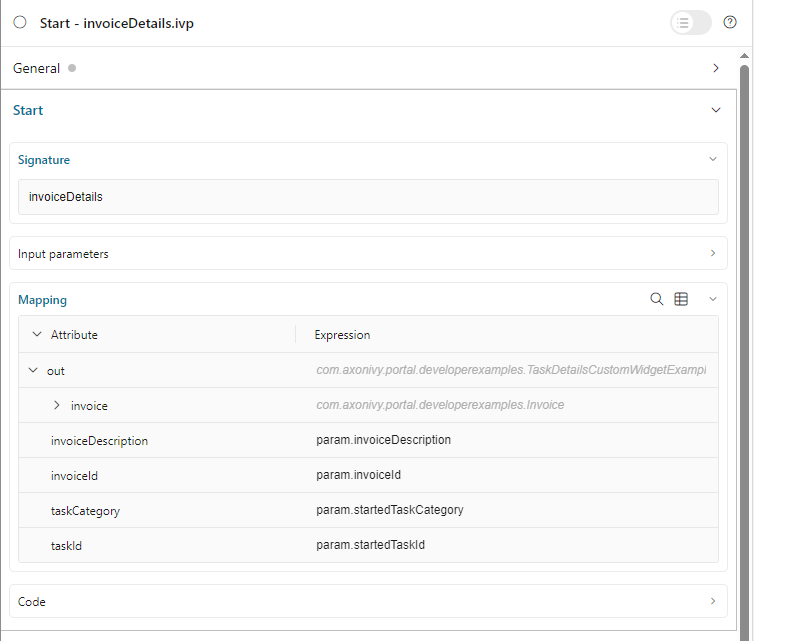

Map parameters to process data

task-customized-iframe-process-input-mapping

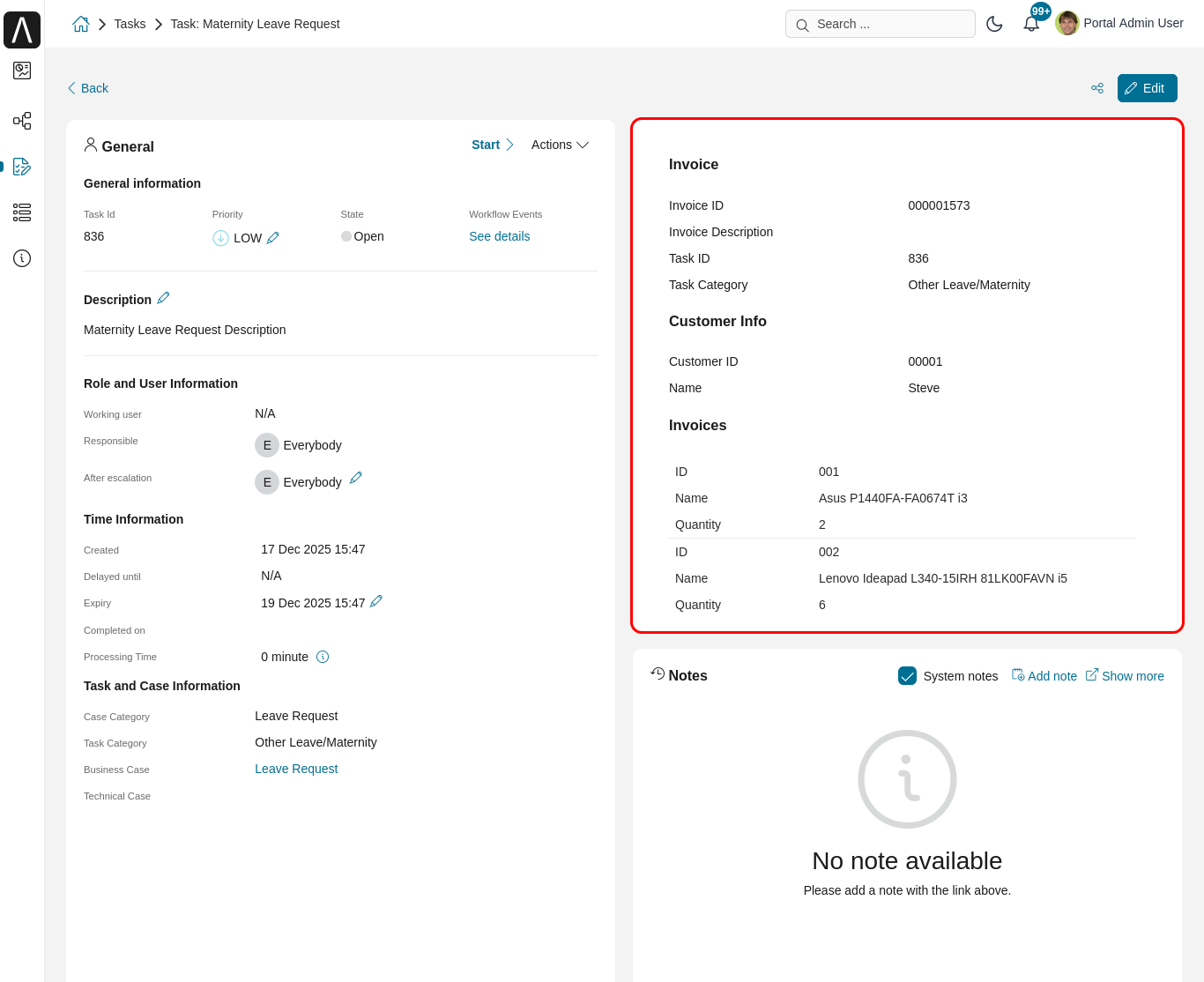

Result

task-customized-iframe-process
