Express external data provider

Introduction

In Portal express we can provide the external data for checkbox values when creating form, like a product catalogue can be maintained in the background and the process calls this data provider.

Customization

  1. Create a callable subprocess that has signature “portalExpressDataProvider”

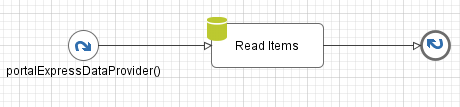

    callable-sub-process

    The subprocess return the list of String:

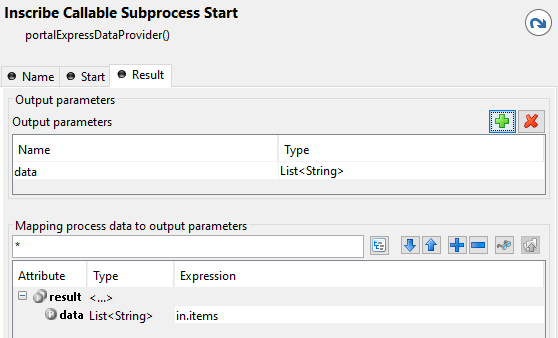

    callable-sub-process-result

    Below is an example that use Database element to read the data from DB as a data provider.

    In the DB tab:

    • Kind of Query: choose “Read query”

    • Database: select the database name

    • Table: select the table name

    • Fields: choose “Specified Fields” and tick one column that use for data provider.

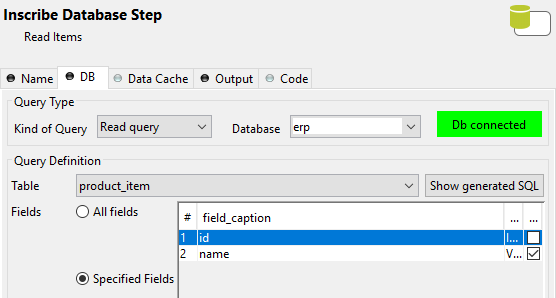

    database

    In the Output tab, set the value for the output variable:

    out.items = recordset.getColumn("[name of the column]")

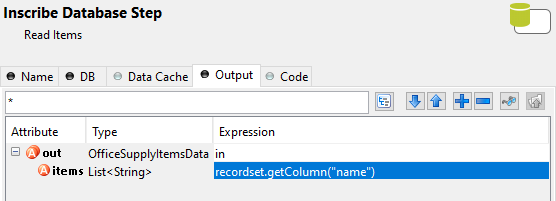

    database-output

  2. Create new Express Workflow

    In the form creation, choose Checkbox and select the data provider in the dropdown list. Then fill the label of check box and press Create button. You can drag and drop the checkbox element to the Placement of form elements and preview the values of the checkbox.

    Note: The first item in the dropdown list is “Special static data provider”, it means that user will provide the values of the checkbox manually.

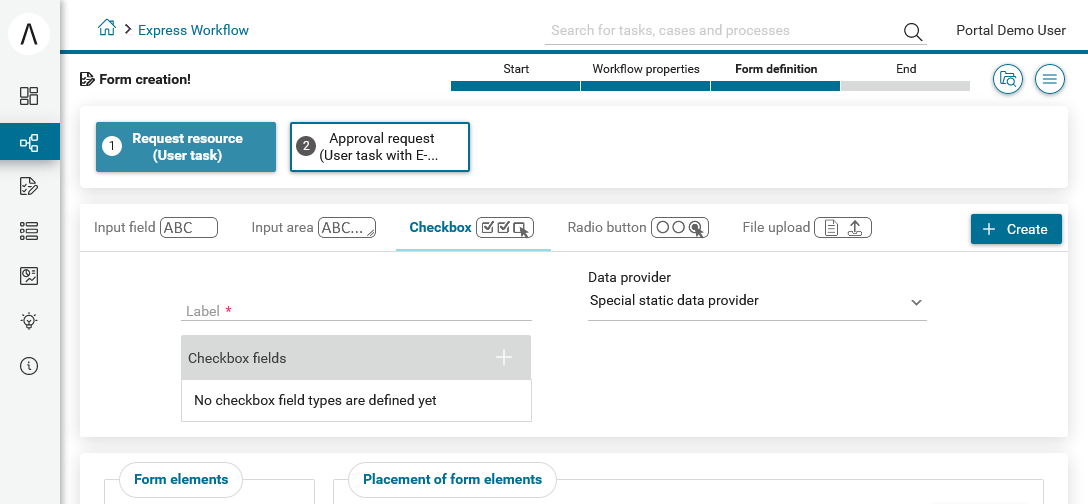

    express-workflow
