Case widget

CaseWidget is a built-in component of Portal which contains the cases which users can interact with. In order to show needed case’s information, Portal supports overriding concept for CaseWidget. Each CaseWidget contains 2 parts:

  1. UI : CaseListHeader, CaseHeader and CaseFilter

  2. Data query : display the cases as you want by modifying data query

Important

  • Case header customization currently support responsive design. Refer to this part for more detail.

  • Case header’s buttons cannot be modified (they stay where they are)

How to override case widget’s UI

Refer to portal-developer-examples project for examples

  1. Introduce an Axon Ivy project which has PortalTemplate as a required library.

  2. To customize case widget, you must customize Portal Home first. Refer to Customize Portal home to set new home page.

  3. Copy the PortalStart process from PortalTemplate to your project. Point PortalHome element to your custom home page in previous step. This process is new home page and administrator should register this link by Portal’s Admin Settings.

  4. Use Axon Ivy HtmlOverride wizard to override PortalCases HTML dialog.

    Tip

    This action overrides Case widget in: CaseList page, Case Search result.

  5. After previous steps, you can override CaseHeader and CaseListHeader and CaseFilter

Case List Header and Case Header

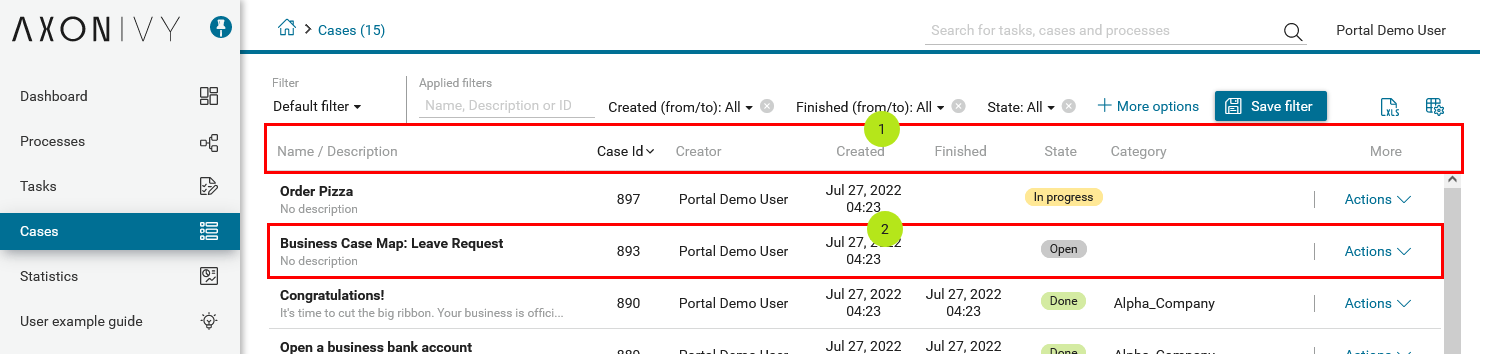

Refer to the caseListHeader (1) and caseHeader (2) sections in PortalCases.xhtml of PortalTemplate. In case your case widget has new columns, you should override CaseLazyDataModel to make the sort function of these columns work:

case-list

  • Introduce a java class extends CaseLazyDataModel

  • Override the extendSort method and extend the sort function for the added columns (see the method’s Javadoc comments)

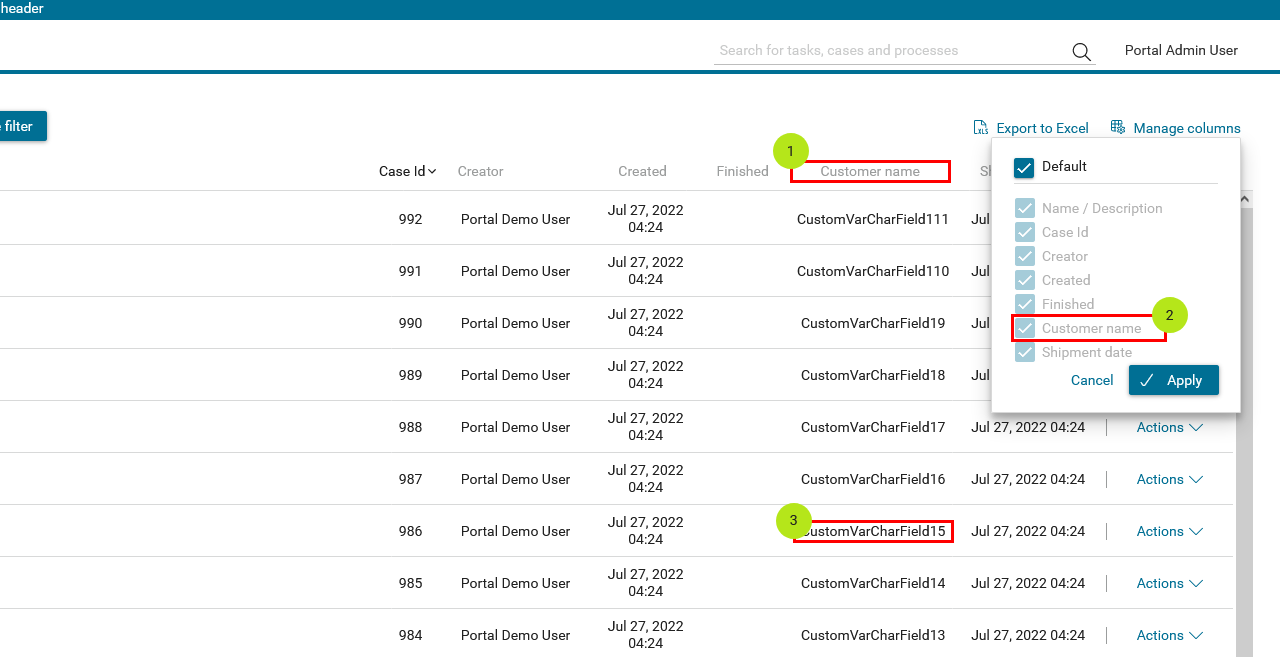

  • Default caseList supports user to config display/hide column: Custom SortFields (1), Custom Checkboxes (2) and Custom header column (3).

    case-columns-configuration

    • In case you have new columns, override method getDefaultColumns of the extended class from CaseLazyDataModel to display checkboxes in Config columns panel and display/hide sortFields (see the methods’ Javadoc comments)

    • To add cms for checkboxes’s label, add new entries to folder /ch.ivy.addon.portalkit.ui.jsf/caseList/defaultColumns/ in PortalStyle or override method getColumnLabel(see the methods’ Javadoc comments)

    • In caseListHeader section, use CaseColumnHeader component

    • In caseHeader section, use CaseCustomField component for each additional column. This component will handle display/hide new columns on case list.

      Currently, CaseCustomField only supports text field. If you want to create your own component, remember to add rendered="#{caseView.dataModel.isSelectedColumn('YOUR_CUSTOM_COLUMN')}"

      For example: Show custom field customer name which stored in case.customVarCharField1

    <ic:ch.ivy.addon.portalkit.component.cases.column.CaseCustomField id="case-customer-name-component" panelGroupId="customVarCharField1-column-case-header-panel" componentId="customVarCharField1-column-case-header-text" column="customVarCharField1" dataModel="#{caseView.dataModel}" labelValue="#{case.customVarCharField1}" />

  • Use Axon Ivy Override to override the InitializeCaseDataModel callable and initialize data model by your customized one.

  • In your customized Portal cases HTMLDialog, the customized data model should be passed as a parameter to components (refer to PortalCases.xhtml).

Case filter

  • Refer to the caseFilter section in PortalCases.xhtml of PortalTemplate.

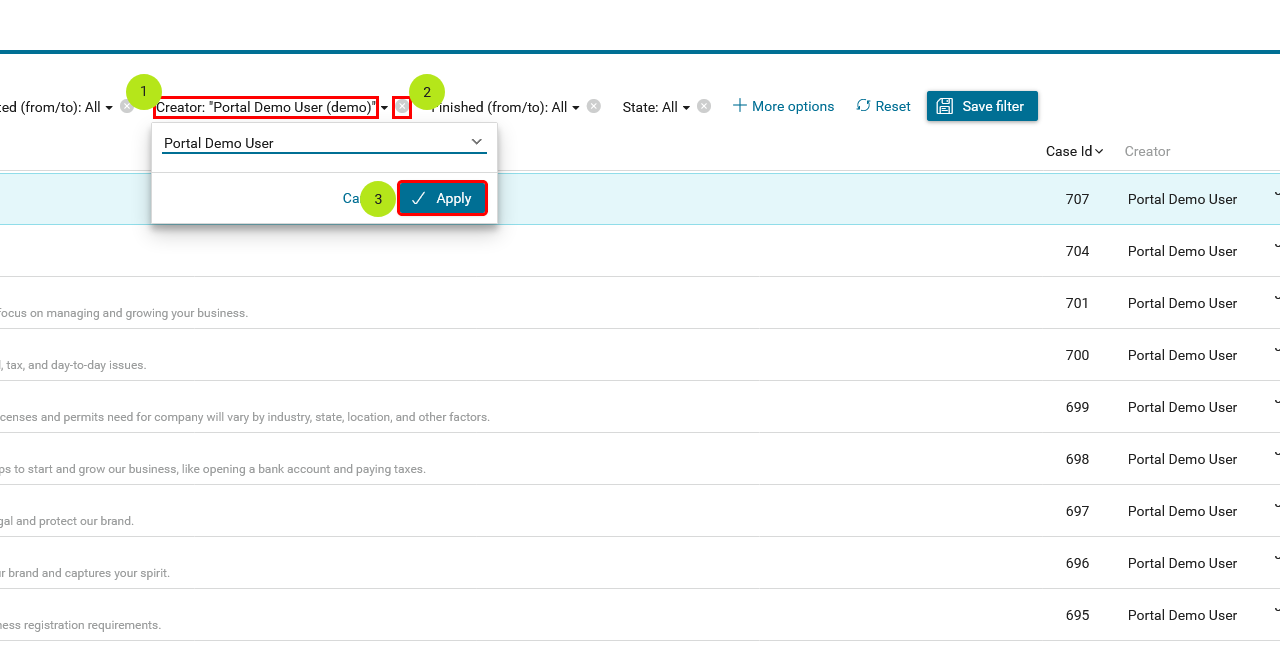

  • In order to introduce new filter, create a new java class extends CaseFilter and override its methods (see javadoc comments)

    1. Filter label() and value() method.

    2. Filter resetValue() is called when click on X icon.

    3. Filter validate() is called when click on Apply button.

    case-filter

  • Introduce a java class extends CaseFilterContainer. This filter container contains your filters, you can reuse default filters, refer to DefaultCaseFilterContainer.java

    Tip

    StateFilter is added as default to container. If you don’t need it, use this code in constructor: filters.remove(stateFilter);

  • Introduce a java class extends CaseLazyDataModel. Override the initFilterContainer method and initialize filter container (see javadoc comments)

  • Use Axon Ivy Override to override the InitializeCaseDataModel callable and initialize data model by your customized one.

  • In your customized Portal cases HTMLDialog, the customized data model and filter container should be passed as parameters to components (refer to PortalCases.xhtml).

  • Portal supports storing/restoring filters. Your filter class (extends CaseFilter) is stored in business data. Properties stored user input values should be persisted, properties controlled logic should not be persisted to reduce persisted data size in business data. Use annotation @JsonIgnore to exclude properties. By default, Portal takes care storing/restoring filters. If you want to customize storing/restoring filter data, do it in your data model class (extends CaseLazyDataModel class).

  • By default, filters are stored/restored in process model level. You can change this by setting the ui:param filterGroupId in PortalCases.xhtml to a new Long value.

    Tip

    If you have multiple case lists in your project, you may want to set filterGroupId to an unique identifier for each of your PortalCases.xhtml across your projects

How to override case widget’s data query

Override the BuildCaseQuery callable process of PortalKit and build your own query to effect the data of case widget.

Apply the following steps in case you would like to provide data for case list after navigating to case list from your page:

  • Use the OpenPortalCases callable process with the CaseView parameter. It is used to define which information are displayed in CaseWidget.

  • Refer to CaseView, CaseSearchCriteria to build your CaseView

    CaseLazyDataModel dataModel = new CaseLazyDataModel();
dataModel.getCriteria().setCustomCaseQuery(YOUR_CASE_QUERY); // Set your CaseQuery
dataModel.getCriteria().setAdminQuery(true); // Display the cases of all users
out.caseView = CaseView.create().dataModel(dataModel)
.withTitle("My Cases").buildNewView();

How to override export feature

  1. Extend the CaseExporter java class of PortalKit.

    • Override the getColumnName method.

    @Override
protected String getColumnName(String column) {
   String columnName = getSpecialColumnName(column);
   return columnName != null ? columnName : Ivy.cms().co("/DefaultColumns/caseList/" + column);
}

    • Override the getColumnValue method.

    @Override
protected Object getColumnValue(String column, ICase caseItem) {
   switch (column) {
      case CustomizedCaseLazyDataModel.CUSTOM_VARCHAR_FIELD1:
         return caseItem.customFields().stringField(CustomFields.CUSTOM_VARCHAR_FIELD1).getOrNull();
      case CustomizedCaseLazyDataModel.CUSTOM_TIMESTAMP_FIELD1:
         return caseItem.customFields().timestampField(CustomFields.CUSTOM_TIMESTAMP_FIELD1).getOrNull();
      default:
         return getCommonColumnValue(column, caseItem);
   }
}

  2. Override the ExportCaseToExcel callable process and apply your extended CaseExporter java class.

    CaseExporter exporter = new CustomizedCaseExporter(in.columnsVisibility);
in.exportedFile = exporter.getStreamedContent(in.collectedCasesForExporting);

How to make responsive case list

If you have customized case list and want it responsive on different screen sizes, please follow below steps.

You can refer to portal-developer-examples project for examples

  1. Add responsiveStyleClass param (in case you’re using Portal component), or styleClass (in case you’re using Primefaces or JSF component) with the same responsive css class for both caseListHeader and caseHeader. You can find responsive class in this part.

          <!-- New field -->
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseColumnHeader id="customVarCharField1-column-header"
      styleClass="TexAlCenter customized-case-header-column"
      responsiveStyleClass="u-hidden-lg-down
      js-hidden-when-expand-menu"
      value="#{ivy.cms.co('/DefaultColumns/caseList/customVarCharField1')}" sortedField="customVarCharField1"
      sortable="true" dataModel="#{caseView.dataModel}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseColumnHeader id="customTimestampField1-column-header"
      styleClass="TexAlCenter customized-case-header-column"
      responsiveStyleClass="u-hidden-lg-down
      js-hidden-when-expand-menu "
      value="#{ivy.cms.co('/DefaultColumns/caseList/customTimestampField1')}" sortedField="customTimestampField1"
      sortable="true" dataModel="#{caseView.dataModel}" />
</ui:define>

<ui:define name="caseHeader">
      <div class="case-header-name-desc-cell u-truncate-text">
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseName caseNameId="case-header-name-cell"
      caseDescriptionId="description-cell" case="#{case}" dataModel="#{caseView.getDataModel()}" />
      </div>
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseId componentId="case-id-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseCreator componentId="case-creator-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseDate componentId="case-creation-date-cell"
      rendered="#{caseView.dataModel.isSelectedColumn('CREATION_TIME')}" value="#{case.startTimestamp}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseDate componentId="case-expiry-date-cell"
      rendered="#{caseView.dataModel.isSelectedColumn('FINISHED_TIME')}" value="#{case.endTimestamp}"
      responsiveStyleClass="js-hidden-when-expand-menu u-hidden-md-down" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseState componentId="case-state-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />

      <!-- New field -->
      <h:panelGroup styleClass="customized-case-header-column js-hidden-when-expand-menu
      u-hidden-lg-down"
      rendered="#{caseView.dataModel.isSelectedColumn('customVarCharField1')}">
      <h:outputText value="#{case.customFields().stringField('CustomVarCharField1').getOrNull()}"
      styleClass="case-header-default-cell customized-case-header-column" />
      </h:panelGroup>
      <h:panelGroup styleClass="customized-case-header-column js-hidden-when-expand-menu
      u-hidden-lg-down"
      rendered="#{caseView.dataModel.isSelectedColumn('customTimestampField1')}">
      <h:outputText value="#{case.customFields().timestampField('CustomTimestampField1').getOrNull()}"
      styleClass="case-header-default-cell">
      <f:convertDateTime pattern="#{dateTimePatternBean.configuredPattern}" />
      </h:outputText>
      </h:panelGroup>
</ui:define>

    Tip

    CaseCustomField component has default responsiveStyleClass is u-hidden-sm-down

  1. Responsiveness could be broken when you anchor left menu. In this case, to maintain the responsiveness, you could hide some columns by add js-hidden-when-expand-menu to responsiveStyleClass or styleClass param of caseListHeader and caseHeader.

          <!-- New field -->
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseColumnHeader id="customVarCharField1-column-header"
      styleClass="TexAlCenter customized-case-header-column"
      responsiveStyleClass="u-hidden-lg-down
      js-hidden-when-expand-menu"
      value="#{ivy.cms.co('/DefaultColumns/caseList/customVarCharField1')}" sortedField="customVarCharField1"
      sortable="true" dataModel="#{caseView.dataModel}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseColumnHeader id="customTimestampField1-column-header"
      styleClass="TexAlCenter customized-case-header-column"
      responsiveStyleClass="u-hidden-lg-down
      js-hidden-when-expand-menu "
      value="#{ivy.cms.co('/DefaultColumns/caseList/customTimestampField1')}" sortedField="customTimestampField1"
      sortable="true" dataModel="#{caseView.dataModel}" />
</ui:define>

<ui:define name="caseHeader">
      <div class="case-header-name-desc-cell u-truncate-text">
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseName caseNameId="case-header-name-cell"
      caseDescriptionId="description-cell" case="#{case}" dataModel="#{caseView.getDataModel()}" />
      </div>
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseId componentId="case-id-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseCreator componentId="case-creator-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseDate componentId="case-creation-date-cell"
      rendered="#{caseView.dataModel.isSelectedColumn('CREATION_TIME')}" value="#{case.startTimestamp}" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseDate componentId="case-expiry-date-cell"
      rendered="#{caseView.dataModel.isSelectedColumn('FINISHED_TIME')}" value="#{case.endTimestamp}"
      responsiveStyleClass="js-hidden-when-expand-menu u-hidden-md-down" />
      <ic:ch.ivy.addon.portalkit.component.cases.column.CaseState componentId="case-state-cell" case="#{case}"
      dataModel="#{caseView.getDataModel()}" />

      <!-- New field -->
      <h:panelGroup styleClass="customized-case-header-column u-hidden-lg-down
      js-hidden-when-expand-menu "
      rendered="#{caseView.dataModel.isSelectedColumn('customVarCharField1')}">
      <h:outputText value="#{case.customFields().stringField('CustomVarCharField1').getOrNull()}"
      styleClass="case-header-default-cell customized-case-header-column" />
      </h:panelGroup>
      <h:panelGroup styleClass="customized-case-header-column u-hidden-lg-down
      js-hidden-when-expand-menu "
      rendered="#{caseView.dataModel.isSelectedColumn('customTimestampField1')}">
      <h:outputText value="#{case.customFields().timestampField('CustomTimestampField1').getOrNull()}"
      styleClass="case-header-default-cell">
      <f:convertDateTime pattern="#{dateTimePatternBean.configuredPattern}" />
      </h:outputText>
      </h:panelGroup>
</ui:define>

    Tip

    The smallest browser width you can anchor the left menu is 1025. So you could reduce width of browser to 1025 to test and decide which columns need to be hidden.
