Case item details

CaseItemDetails is a built-in component of Portal which contains the case info which users can interact with. In order to show needed case’s information, Portal supports overriding concept for CaseItemDetails.

Each CaseItemDetails contains

  • CaseItemGeneralInformation 1

  • CaseItemDetailsDocuments 2

  • CaseItemDetailsRelatedCases 3

  • CaseItemDetailsRelatedTasks 4

  • CaseItemDetailsHistories 5

  • Case details custom panel: caseItemDetailCustomTop, caseItemDetailCustomMiddle, caseItemDetailCustomBottom

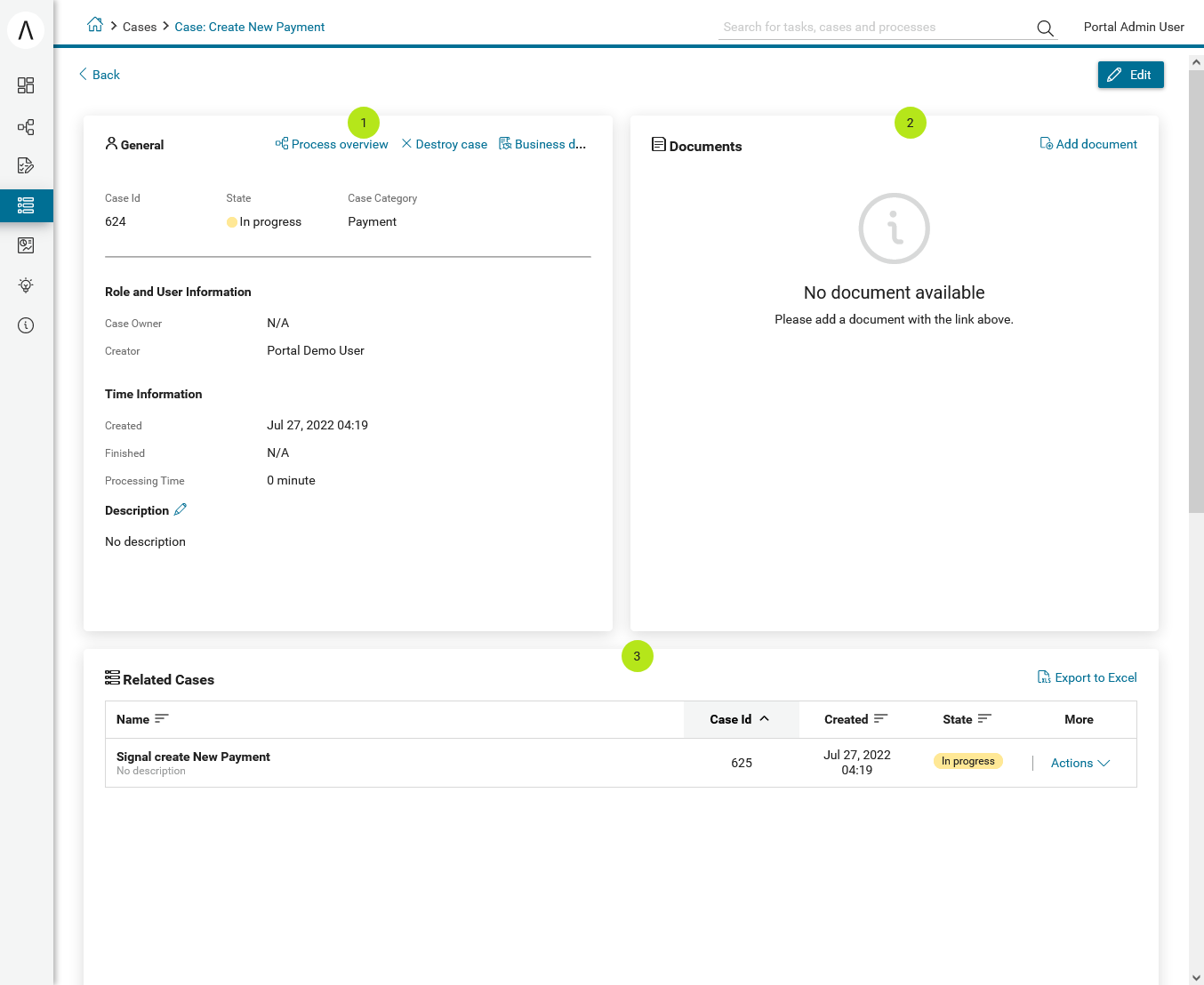

case-standard-1

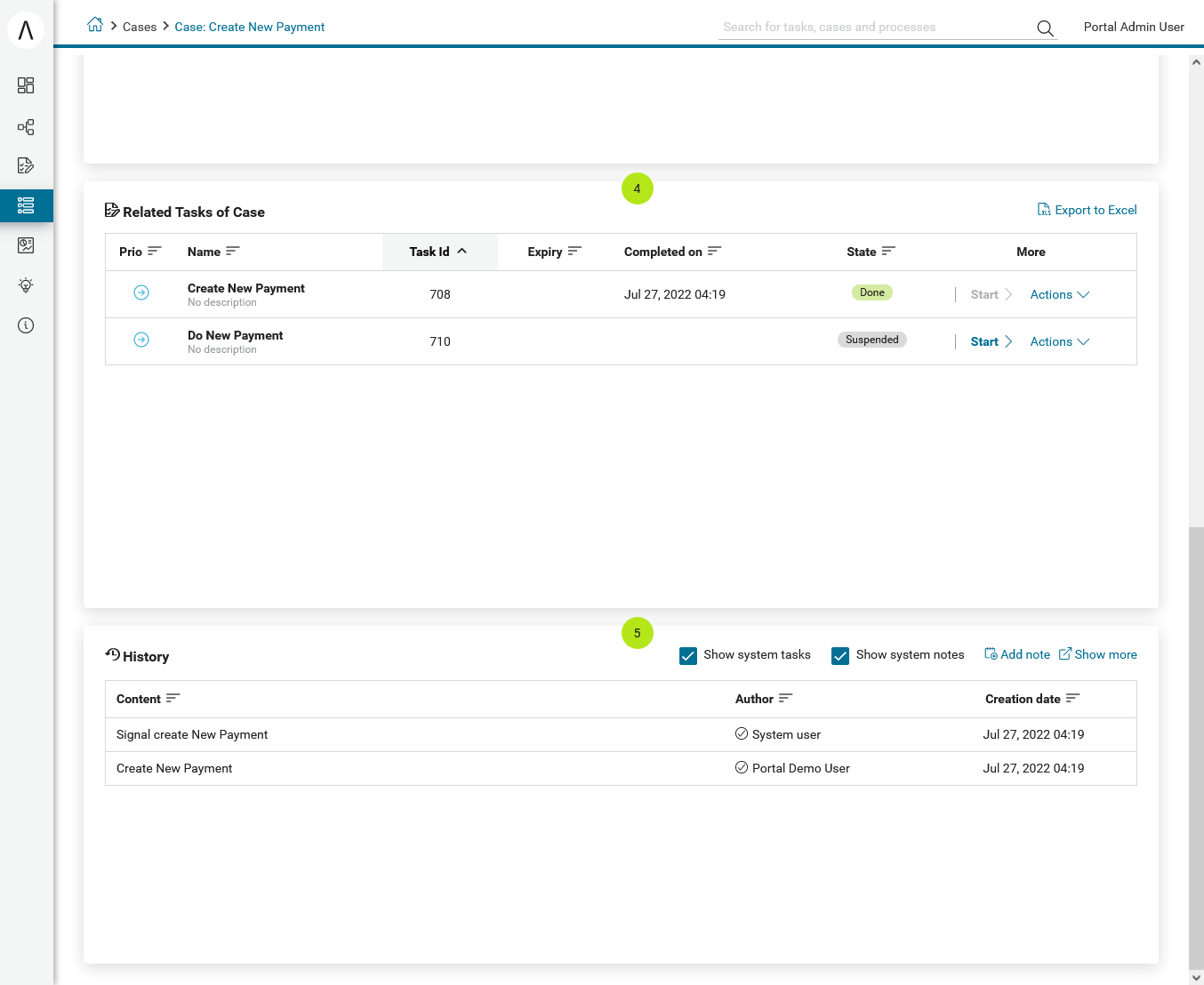

case-standard-2

Important

All visible widgets will be configured in Global Variable Portal.CaseDetails

How to configure widgets in case details

  • Settings of all visible widgets on case details page are saved in Global Variable Portal.CaseDetails.

  • Cockpit Administrator can configure widgets via global variable Portal.CaseDetails on Cockpit settings page. edit-variable-portal-task-case-details

  • Default configuration includes 5 widgets.

    [{
       "id": "default-case-detail",
       "widgets": [{
             "type": "information",
             "id": "information",
             "layout": {
                "w": 6, "h": 8, "x": 0, "y": 0
               }
          }, {
             "type": "document",
             "id": "document",
             "layout": {
                "w": 6, "h": 8, "x": 6, "y": 0
               }
          }, {
             "type": "technicalCase",
             "id": "technicalCase",
             "layout": {
                "w": 12, "h": 6, "x": 0, "y": 8
               }
          }, {
             "type": "relatedTask",
             "id": "relatedTask",
             "layout": {
                "w": 12, "h": 6, "x": 0, "y": 14
               }
          }, {
             "type": "history",
             "id": "history",
             "layout": {
                "w": 12, "h": 6, "x": 0, "y": 20
               }
            }
          ]
       }
    ]

    • Structure of each case details layout in variable Portal.CaseDetails:

      id: ID of layout.

      widgets: definition of widgets in layout.

      filters: conditions to determine which cases able to use the layout. There are 2 types of filter: categories (case categories), states (case states).

    • Structure of each widget inside case details layout in variable Portal.CaseDetails:

      id: ID of widget.

      type: type of widget, there are 6 types: information, document, technicalCase, relatedTask, history, custom.

      layout: definition of the UI styling of the widget.

      x: HTML DOM Style left will be calculated by formula x / 12 * 100%.

      y: HTML DOM Style top will be calculated by formula y / 12 * 100%.

      w: HTML DOM Style width will be calculated by formula 60 * w + 20 * (width - 1).

      h: HTML DOM Style height will be calculated by formula 60 * h + 20 * (height - 1).

      styleClass (optional): add CSS Classes to HTML DOM.

      style (optional): add inline style to HTML DOM.

      data (for custom widget): data for custom widget, refer to Show custom widgets

    Important

    • Do not change type and id of widgets.

    • You can change x, y, w and h to update size and position of widgets.

    • x, y, w and h must be integers.

    • x + w must not be larger than 12.

    • We support all case states for filter type states.

How to custom Case details UI

Refer to portal-developer-examples project for examples.

  1. Introduce an Axon Ivy project which has PortalTemplate as a required library.

  2. To customize case detail, you must customize Portal Home first. Refer to Customize Portal home to set new home page.

  3. Copy the PortalStart process from PortalTemplate to your project. Point PortalHome element to your custom home page in previous step. This process is new home page and administrator should register this link by Portal’s Admin Settings.

  4. Use Axon Ivy HtmlOverride wizard to override CaseInformation HTML dialog.

  5. After the above steps were done, you can override Case details UI elements by some options below:

    • To show/hide, please using showItemDetailsHeader and showItemBackButton code. For more details, please refer to Show/Hide components.

    • And to show a new elements in CaseInformation customized, please refer to Show custom widgets code.

Show/Hide components by keywords

Refer to the ui:param tag list in CaseInformation.xhtml of PortalTemplate. In case, we want to show/hide any elements on CaseItemDetails, we should override value of ui:param

List valid parameters:

  • ui:param name="showItemDetailsHeader" value="true" to show/hide case header, by default it’s true, you should set as false if you set alwaysShowDetails for CaseItem.

  • ui:param name="showItemBackButton" value="true" to show/hide back button, by default it’s true.

Show custom widgets

For the custom widget, we have a new node is data inside of case details widget. The structure of data on each custom widget will be:

  • type: type of custom widget panel, there are 3 types: caseItemDetailCustomTop, caseItemDetailCustomMiddle, caseItemDetailCustomBottom.

  • url: URL for external website

  • processStart: relative link to the ivy process which will be displayed in custom widget

  • params: paramters for ivy process above, each parameter can be defined as follows:

    • Key name that will be parameter name for ivy process above. Note: don’t use caseId.

    • Key value for case: must start with case.. Support 2 values: case.id, case.category.

    • Key value for case custom fields: must start with case.customFields., follow by custom field name.

    • Other key value will be treated as hard code value.

Tip

To quickly understand how the JSON of custom case details looks like.

  • Refer to variables.Portal.CaseDetails.json file in portal-developer-examples/resources/files project.

  • Copy to the corresponding application folder located in the designer.

    • e.g: AxonIvyDesigner/configuration/applications/designer.

  • Create some destroyed case or start the process Start Processes/CaseDetailsCustomWidgetExample/CreateEventTest.ivp in portal-developer-examples project.

  • Go to the example homepage by the process Start Processes/ExamplePortalStart/DefaultApplicationHomePage.ivp.

  • And then go to case details to check the new custom layout.

About how to configure Variables, refer to Axon Ivy Variables

Adding new custom panels

There are two steps for adding new custom panels.

  1. Cockpit admin must configure global variable Portal.CaseDetails on Cockpit Page to add custom widgets.

    • Example Portal.CaseDetails with including 3 custom widgets configuration:

       [{
          "id": "default-case-detail",
          "widgets": [{
                "type": "information",
                "id": "information",
                "layout": {
                   "w": 6, "h": 8, "x": 0, "y": 0
                }
             }, {
                "type": "document",
                "id": "document",
                "layout": {
                   "w": 6, "h": 8, "x": 6, "y": 0
                }
             }, {
                "type": "history",
                "id": "history",
                "layout": {
                   "w": 12, "h": 6, "x": 0, "y": 8
                }
             }, {
                "type": "custom",
                "id": "customTop",
                "layout": {
                   "x": 0, "y": 14, "w": 12, "h": 6
                },
                "data" : {
                   "type": "caseItemDetailCustomTop"
                }
             }, {
                "type": "custom",
                "id": "customMiddle",
                "layout": {
                   "x": 0, "y": 20, "w": 12, "h": 6
                },
                "data" : {
                   "type": "caseItemDetailCustomMiddle"
                }
             }, {
                "type": "custom",
                "id": "customBottom",
                "layout": {
                   "x": 0, "y": 26, "w": 12, "h": 6
                },
                "data" : {
                   "type": "caseItemDetailCustomBottom"
                 }
              }
           ]
         }
      ]

  2. Refer to the caseItemDetailCustom* section in CaseInformation.xhtml of PortalTemplate.

    • We need to define ui:define with a valid name such as caseItemDetailCustomTop, caseItemDetailCustomMiddle and caseItemDetailCustomBottom.

    • Add your custom code into tags above.

    • Finally, your custom widget will be displayed in CaseItemDetails page.

    • Below is example code for adding custom widgets to case details

    <!--!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
       !!!! START: AREA SHOULD BE CUSTOMIZED !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
       !!!!!!!! START: TO SHOW /HIDDEN ANY SECTIONS OF CASE DETAILS, YOU CAN TURN TRUE/FALSE FOR BELOW PARAMETERS !!!!!!!!!!!!!!!!!!!!!!!!
       !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
       Attribute showItemDetailsHeader: To show the header of case details. By default it's true
       !!!!!!!! END SHOW /HIDDEN SECTIONS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!-->

    <ui:param name="id" value="#{cc.clientId}" />
    <ui:param name="showItemDetailsHeader" value="#{cc.attrs.showItemDetailsHeader}" />
    <ui:param name="descriptionComponentToUpdate" value="#{cc.attrs.descriptionComponentToUpdate}" />
    <ui:param name="isWorkingOnTask" value="#{cc.attrs.isWorkingOnTask}" />

    <!--!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
       !!!!!!!! START: TO ADD YOUR CUSTOMIZATION CODE ON THE CASE DETAILS PAGE, WE PROVIDE 3 SECTIONS AS BELOW HELP YOU CAN DO IT !!!!!!!!
       !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!-->

    <ui:define name="caseItemDetailCustomTop">
       <h:panelGroup styleClass="ui-g-12" layout="block">
          <div class="card card-w-title case-detail-card">
             <div class="case-detail-section-title u-truncate-text">
             <h:outputText value="This is custom panel on top section" />
             </div>
             <div class="Separator" />

             <div class="custom-task-details-panel-top">
             <h1>This is custom content on top</h1>
             <p>Custom height to auto</p>
             <p>Custom font size to 1.6rem</p>
             </div>
          </div>
       </h:panelGroup>
    </ui:define>

    <ui:define name="caseItemDetailCustomMiddle">
       <h:panelGroup styleClass="ui-g-12" layout="block">
          <div class="card card-w-title case-detail-card">
             <div class="case-detail-section-title u-truncate-text">
             <h:outputText value="This is custom panel on middle section" />
             </div>
             <div class="Separator" />

             <div class="custom-task-details-panel-middle">
             <h1>This is custom content on middle</h1>
             <p>Custom height to auto</p>
             <p>Custom font size to 1.6rem</p>
             </div>
          </div>
       </h:panelGroup>
    </ui:define>

    <ui:define name="caseItemDetailCustomBottom">
       <h:panelGroup styleClass="ui-g-12" layout="block">
          <div class="card card-w-title case-detail-card">
             <div class="case-detail-section-title u-truncate-text">
             <h:outputText value="This is custom panel on bottom section" />
             </div>
             <div class="Separator" />

             <div class="custom-task-details-panel">
             <h1>This is custom content on bottom</h1>
             <p>Custom height to auto</p>
             <p>Custom font size to 1.6rem</p>
             </div>
          </div>
       </h:panelGroup>
    </ui:define>

    <!-- !!!!!!!! END ADD YOUR CUSTOMIZATION !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!-->
    <!-- !!!! END: AREA SHOULD BE CUSTOMIZED!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!-->

    • In additional, we have a full flexibility page if we use ui-g-* class to define the width of panel

  3. To customize case details use IFrame, please make sure

    • Must input parameter url in data node if you want to use external URL.

    • Must input parameter processStart in data node if you want to use ivy start process. And you can predefine parameter for the process via params in data node.

      Important

      If you input processStart, don’t input url. You can only use one of them.

      Customized case details using external URL:

       [
          {
          "id": "case-detail",
          "widgets": [
             {
                "type": "information",
                "id": "information",
                "layout": {
                   "x": 0, "y": 0, "w": 6, "h": 8
                }
             },
             {
                "type": "custom",
                "id": "customURL",
                "layout": {
                   "x": 6, "y": 0, "w": 6, "h": 8
                },
                "data" : {
                    "url": "https://www.axonivy.com/"
                }
             }
           ]
        }
      ]

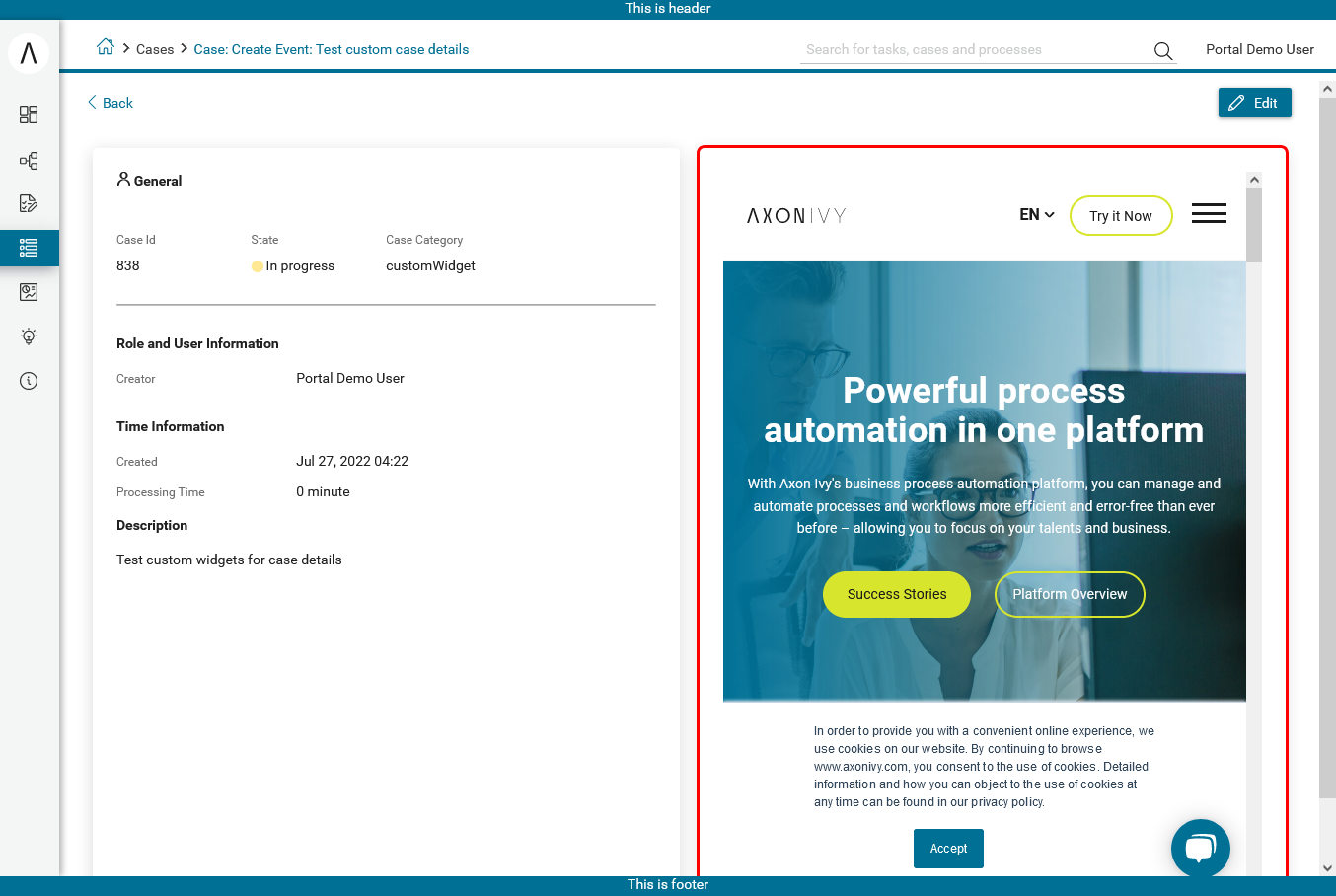

      Result:

      case-customized-iframe-url

      Customized case details using ivy process start, please refer to CaseDetailsCustomWidgetExample process in portal-developer-examples for more details

      [{
           "id": "case-detail",
           "widgets": [
              {
                 "type": "information",
                 "id": "information",
                 "layout": {
                    "x": 0, "y": 0, "w": 6, "h": 8
                 }
              },
              {
                 "type": "history",
                 "id": "history",
                 "layout": {
                    "x": 6, "y": 0, "w": 6, "h": 8
                 }
              },
              {
                 "type": "custom",
                 "id": "customIvyProcess",
                 "layout": {
                    "x": 0, "y": 6, "w": 12, "h": 8
                 },
                 "data": {
                    "processStart": "Start Processes/CaseDetailsCustomWidgetExample/startReview.ivp",
                    "params": {
                       "startedCaseId": "case.id",
                       "startedCaseCategory": "case.category",
                       "investmentId": "1573111",
                       "investmentDescription": "case.customFields.investmentDescription"
                    }
                 }
              }
            ]
          }
       ]

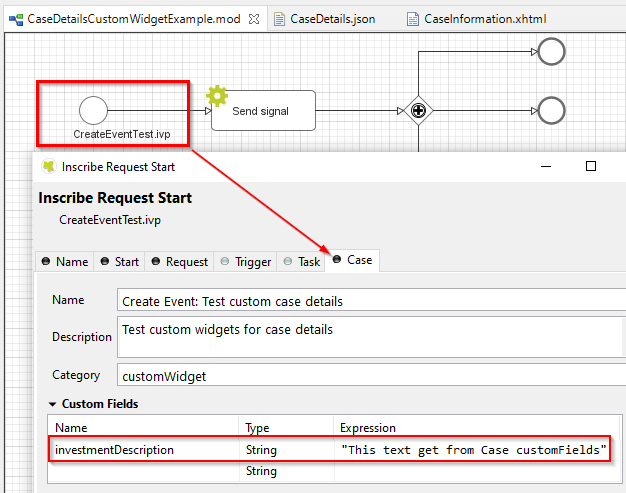

      Provide case custom fields:

      case-customized-iframe-process-custom-field

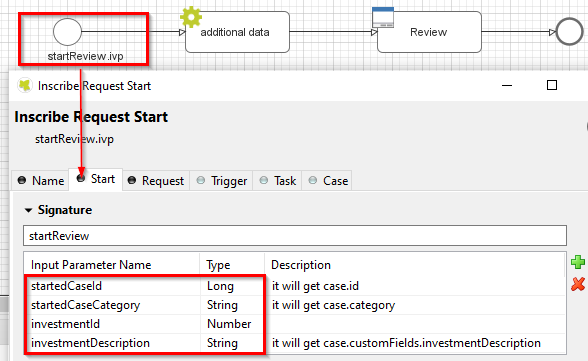

      Map parameters to process data:

      case-customized-iframe-process-input-mapping

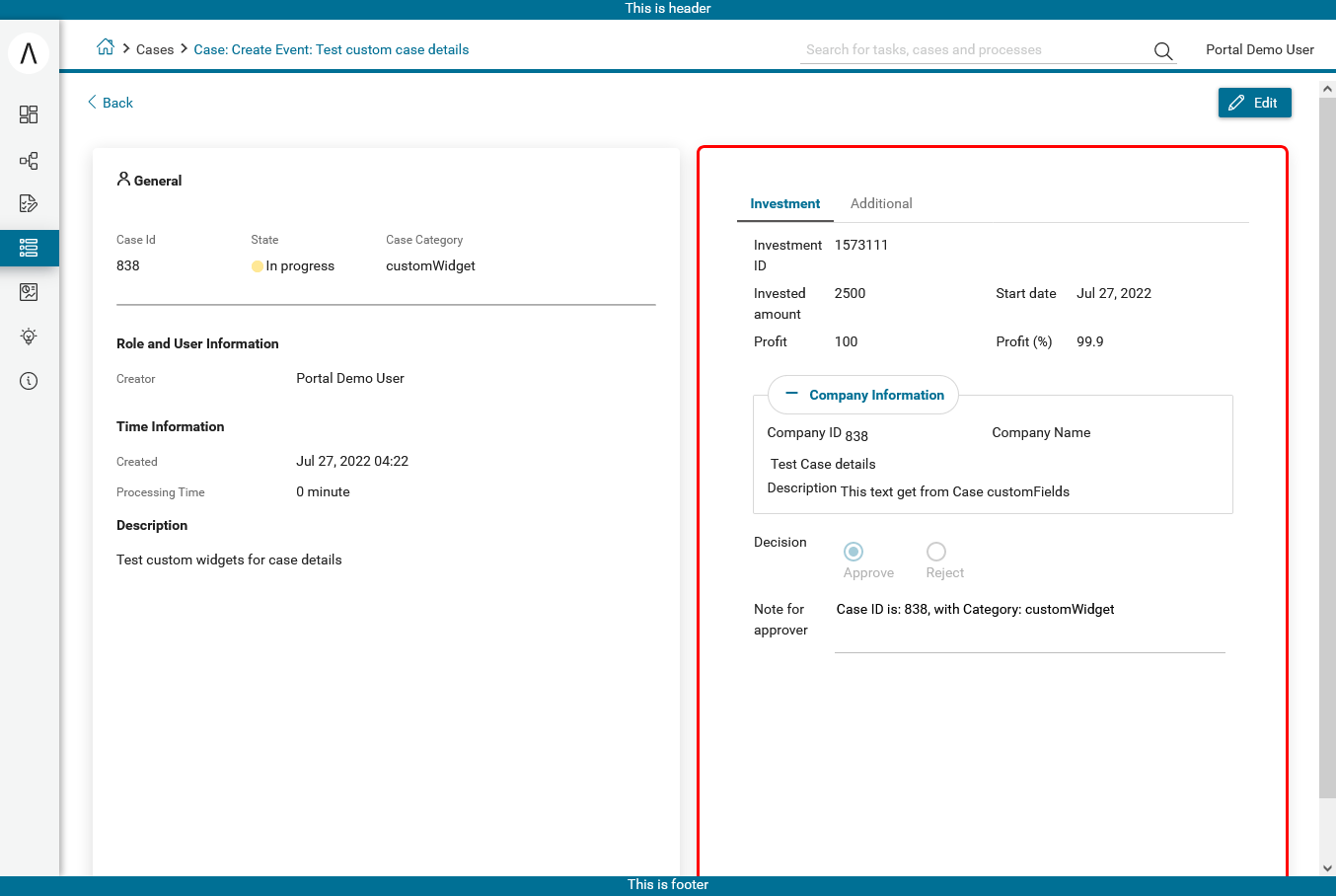

      Result:

      case-customized-iframe-process
