Express External Data Provider (Deprecated)

Warning

Deprecated: This feature is marked for removal in version LTS 12.

Introduction

In Portal Express, we can provide the external data for checkbox values when creating form, like a product catalog that can be maintained in the background; the process calls this data provider.

Customization

  1. Create a callable subprocess that has the signature “portalExpressDataProvider”

    callable-sub-process

    The subprocess returns a list of strings:

    callable-sub-process-result

    Below is an example that uses the Database element to read the data from a database as a data provider.

    In the Database tab, set these fields:

    • Kind of Query: choose “Read query”

    • Database: select the database name

    • Table: select the table name

    • Fields: choose “Specified Fields” and tick one column that is used as the data provider.

    database

    In the Output tab, set the value for the output variable:

    out.items = recordset.getColumn("[name of the column]")

    database-output

  2. Create new Express Workflow

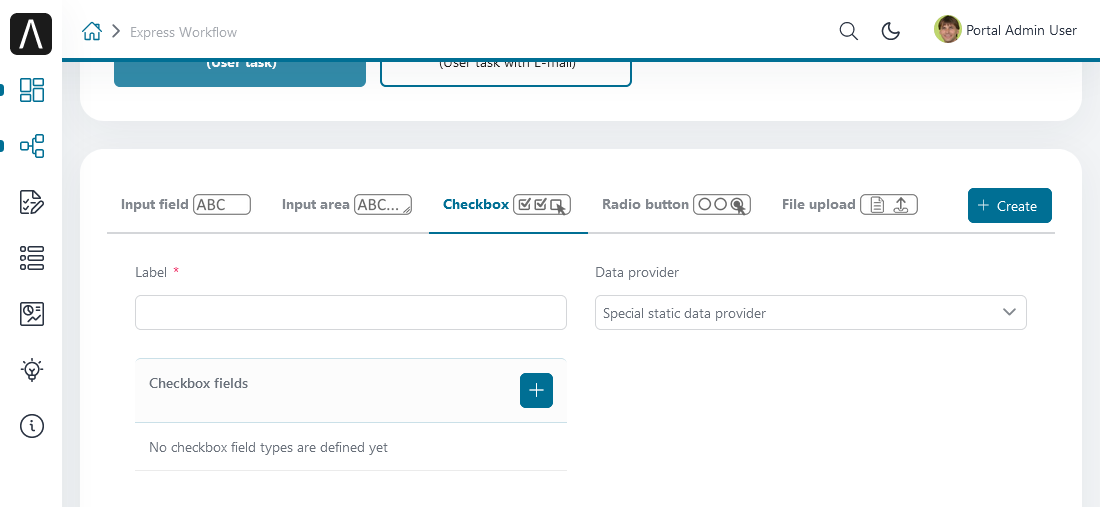

    In the form creation, choose Checkbox and select the data provider in the dropdown list. Then set the label of the check box and press the Create button. You can drag and drop the checkbox element to its intended location and preview the values of the checkbox.

    Note: The first item in the dropdown list is “Special static data provider”, it means that the user will provide the values of the checkbox manually.

    express-workflow
