Layout templates

Templates for development

Your Portal project is dependent on PortalTemplate project, in which there are 7 templates that can be used directly without IFrame. In addition 3 templates are described to be used with IFrame.

Templates without IFrame:

  1. Basic template

  2. Task template 8

  3. Deprecated task template 7 (Deprecated)

  4. Two column template (Deprecated)

  5. Task list template

  6. Case list template

  7. Default homepage template

Templates to use with IFrame:

  1. IFrame Task template (Template used internally by portal to configure IFrame)

  2. Task template (Deprecated)

  3. frame-8 template (Provided by core, use Serenity theme)

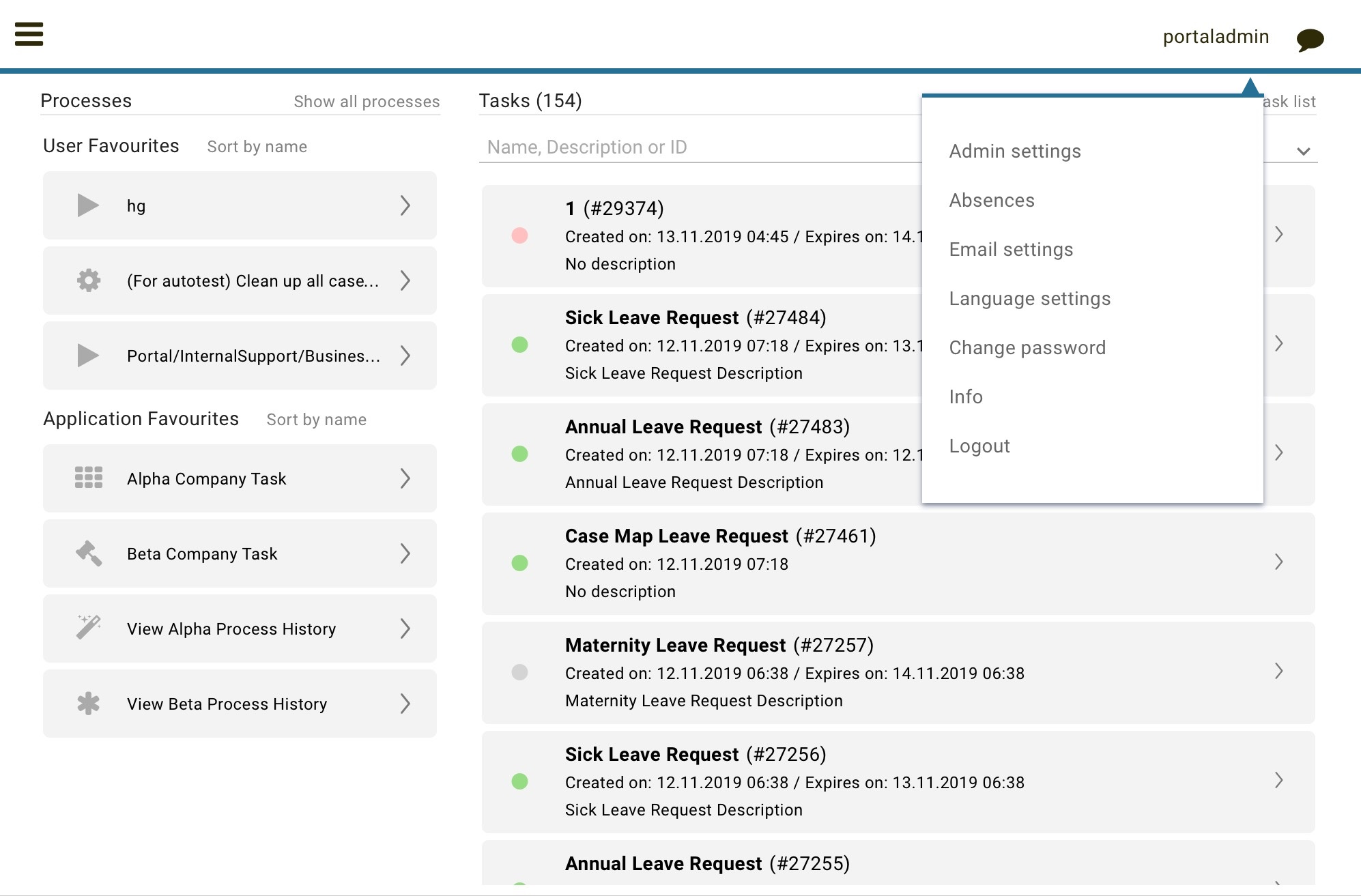

These templates have the same header, which is a menu of applications that you configure in Administration page. Since version 8.0, Portal officially supports responsiveness, every templates has its default responsiveness, you can refer to Responsiveness to override it. Besides, there are user settings like: Absences, Email, Language Settings and Administration (for admin only). Details about user settings can be found in Settings.

portal-header

Basic template

Basic template provides basic layout where user can put their custom content. It lacks Portal menu and Case details. We recommend to use task template for your process.

How to use Basic template

  1. Create a new HTML User Dialog and then use ui:composition to define the template inside and reuse the default responsiveness behavior. To override it, please use pageContent instead of simplePageContent and Responsiveness.

    <ui:composition template="/layouts/BasicTemplate.xhtml">
<ui:define name="title">Sample Page</ui:define>
<ui:define name="simplePageContent">
This is sample content.
</ui:define>
</ui:composition>

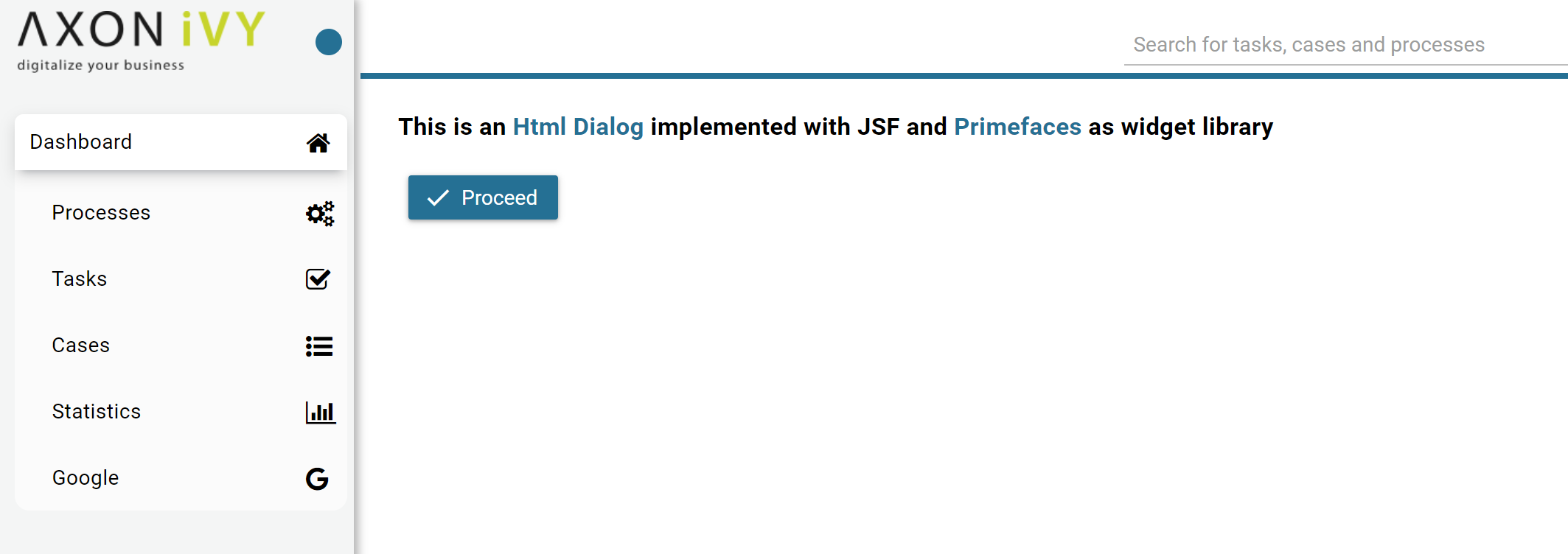

  2. See the result after using Basic template for example:

basic-template

IFrame Task template

IFrame Task Template is used for displaying task functionality (e.g. process chain) and related case information to support completing the task. It renders your task UI inside IFrame (refer to IFrame in Portal).

The template is prepared to receive some params passed by JavaScript. Inside your UI, you can configure these parameters which will be rendered by the template automatically:

<script>
        // Follow one of these formats to set process steps:
        window.processSteps = ["Create Investment Request", "Approve Investment Request"];
        window.processSteps = "Create Investment Request,Approve Investment Request";

        // If process steps are set in HTML dialog logic or java code, convert it to one of above formats by jstl (following code) or java code
        // Include this namespace xmlns:fn="http://xmlns.jcp.org/jsp/jstl/functions" to the "html" tag
        // Use this code if process steps are a java String list
        window.processSteps = "#{fn:join(data.steps.toArray(), ',')}";
        // Use this code if process steps are a java String array
        window.processSteps = "#{fn:join(data.steps, ',')}";

        // Current process step could be a number or String:
        window.currentProcessStep = 0;
        window.currentProcessStep = #{data.currentProcessStep};
        window.currentProcessStep = "#{data.currentProcessStep}";
        window.isShowAllSteps = true;
        window.isHideTaskName= false;
        window.isHideTaskAction = false;
        window.isHideCaseInfo = false;
        window.isWorkingOnATask = false;
        window.processChainDirection = "VERTICAL";
        window.processChainShape = "LINE";
        window.announcementInvisible = false;

        // Use this code to show case details of a case different from current case of working task.
        // by send the case ID of that case.
        window.caseId = 123456;
</script>

Note

Do not use or refer to this template in your Dialog. This will be done automatically by Portal if you use the mentioned IFrame Approach. You can refer to IFrameTaskTemplate.xhtml in PortalTemplate to see more detailed information about how to use and pass params.

When define param processSteps, please make sure that you added jsp function tag to your XHTML file: xmlns:fn="http://xmlns.jcp.org/jsp/jstl/functions

In case your project has navigation button without finishing a task, e.g Cancel, to

  • Home page: call navigateToPortalHome() from class PortalNavigatorInFrameAPI.

  • Previous page: call navigateToPortalEndPage() from class PortalNavigatorInFrameAPI.

  • A specific url: call navigateToUrl(String url) from class PortalNavigatorInFrameAPI.

Task template (Deprecated)

Task template is used for displaying task functionality and related information to support completing the task. There are a lot of regions to be filled with your custom content

This template is dedicated for iFrame and Modena theme, so all Modena styles need to be provided in your project.

Warning

There should be no encouragement to stay on modena - unless you want to follow a dead path on purpose.

Important

This template must be used inside IFrame. Refer to IFrame in Portal.

How to use TaskTemplate

Create a new HTML User Dialog and then use ui:composition to define template which you use inside.

<ui:composition template="/layouts/TaskTemplate.xhtml">

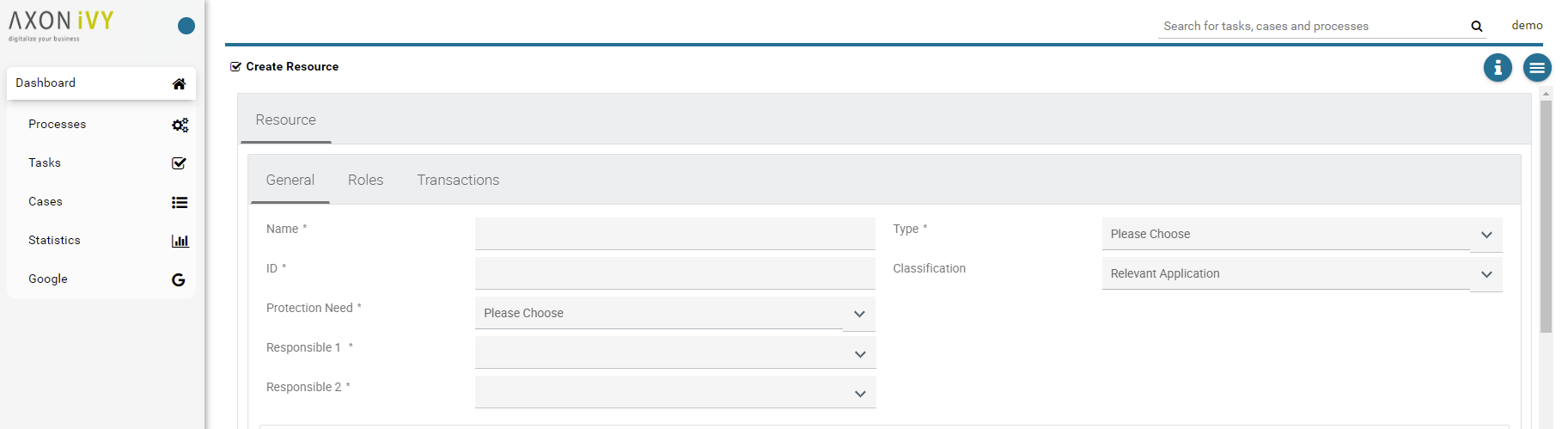

task-name-template

In case your project has navigation button without finishing a task, e.g Cancel, to

  • Home page: call navigateToPortalHome() from class PortalNavigatorInFrameAPI.

  • Previous page: call navigateToPortalEndPage() from class PortalNavigatorInFrameAPI.

  • A specific url: call navigateToUrl(String url) from class PortalNavigatorInFrameAPI.

How to migrate TaskTemplate

Your style customization in PortalStyle hasn’t effected anymore, you should include it yourself in your HTML dialog

Pros

Cons

  • Keep the old look&feel since Portal 7

  • Less migration effort

  • Modena is out of support by Primefaces

  • Modena was highly customized by Portal

  • Different look&feel between Portal and UIs

TaskTemplate-8

Task template 8 is new template with Serenity theme introduced since Portal 8. There is no TabView, you have to define it if needed.

Warning

Portal styles are included, your HTML dialogs are also effected. Therefore, it could spend some migration effort in future. It’s highly recommended to use IFrame in Portal.

Important

This template must not be used inside IFrame.

How to use TaskTemplate-8

Create a new HTML User Dialog and then use ui:composition to define template.

<ui:composition template="/layouts/TaskTemplate-8.xhtml">

Refer to TaskTemplate-8.xhtml for params and template areas.

In case your project has navigation button without finishing a task, e.g Cancel, to

  • Home page: call navigateToPortalHome() from class PortalNavigatorAPI.

  • Previous page: call navigateToPortalEndPage() from class PortalNavigatorAPI.

How to migrate TaskTemplate-8

If you migrate Portal since previous versions to TaskTemplate-8, please follow below steps to migrate your content:

  • The <ui:define name="taskForm" /> to define the content inside the Request tab, TabView is removed and <ui:define name="taskForm" /> is DEPRECATED, use <ui:define name="content" /> instead.

  • The <ui:define name="dynamicTabs" /> is removed, design your TabView if needed.

Refer to TaskTemplate-8.xhtml for params and template areas.

Pros

Cons

  • Use Serenity theme

  • Usage improvements are considered

  • Consistent look&feel with Portal

  • UI styles are taken over from Portal

  • Some migration effort

External case information

By default, TaskTemplate-8 will show business case details of the working task in the Case Information dialog. But you can modify it to show details of another case instead by using parameter caseId. The parameter caseId only accept case ID of an existing case, if Portal cannot find the case it will show business case details of the working task instead. Please refer to example below.

<ui:param name="caseId" value="123456" />

TaskTemplate-7 (Deprecated)

Task template 7 is old task template with Serenity theme. If your project wants to apply new theme, but keep the TabView (e.g. Case Information, dynamic tabs), you can use this template.

Warning

Portal styles are included, your HTML dialogs are also effected. Therefore, it could spend some migration effort in future. It’s highly recommended to use IFrame in Portal.

Important

This template must not be used inside IFrame.

How to use TaskTemplate-7

Create a new HTML User Dialog and then use ui:composition to define template.

<ui:composition template="/layouts/TaskTemplate-7.xhtml">

In case your project has navigation button without finishing a task, e.g Cancel, to

  • Home page: call navigateToPortalHome() from class PortalNavigatorAPI.

  • Previous page: call navigateToPortalEndPage() from class PortalNavigatorAPI.

How to migrate TaskTemplate-7

Adapt the ui:composition template to this template.

Pros

Cons

  • Keep the old structure for UIs (TabView)

  • Use Serenity theme from Portal

  • Consistent look&feel with Portal

  • UI styles are taken over from Portal

  • Template is deprecated (will remove in v9.0)

  • Few migration effort

Two column template (Deprecated)

Two column template inherits Basic Template. It has 2 columns which user can customize their contents. Normally, the first column is for navigation, the second for displaying corresponding content.

How to use Two column template

  1. Create a HTML User Dialog, define template in ui:composition and insert content of second column and third column using ui:define.

1<ui:composition template="/layouts/TwoColumnTemplate.xhtml">
2<ui:define name="title">Sample Page</ui:define>
3<ui:define name="navigationRegion">
4Navigation Region
5</ui:define>
6<ui:define name="contentRegion">
7Content Region
8</ui:define>
9</ui:composition>

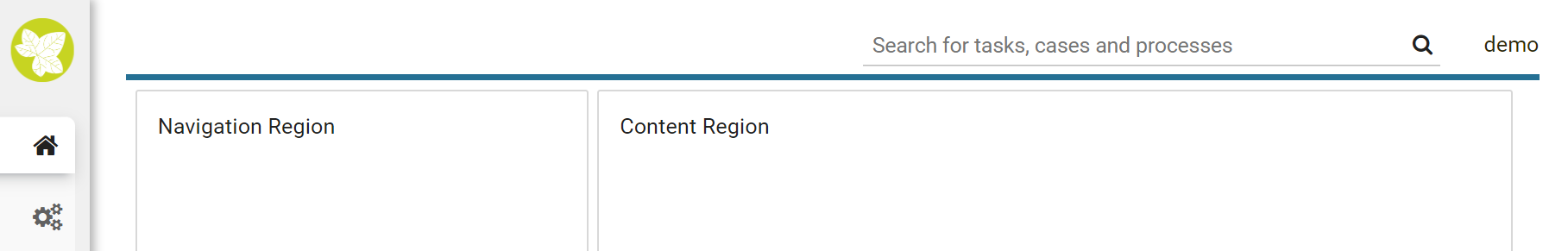

  1. See the result after using Two column template for example:

two-column-template

Task list template

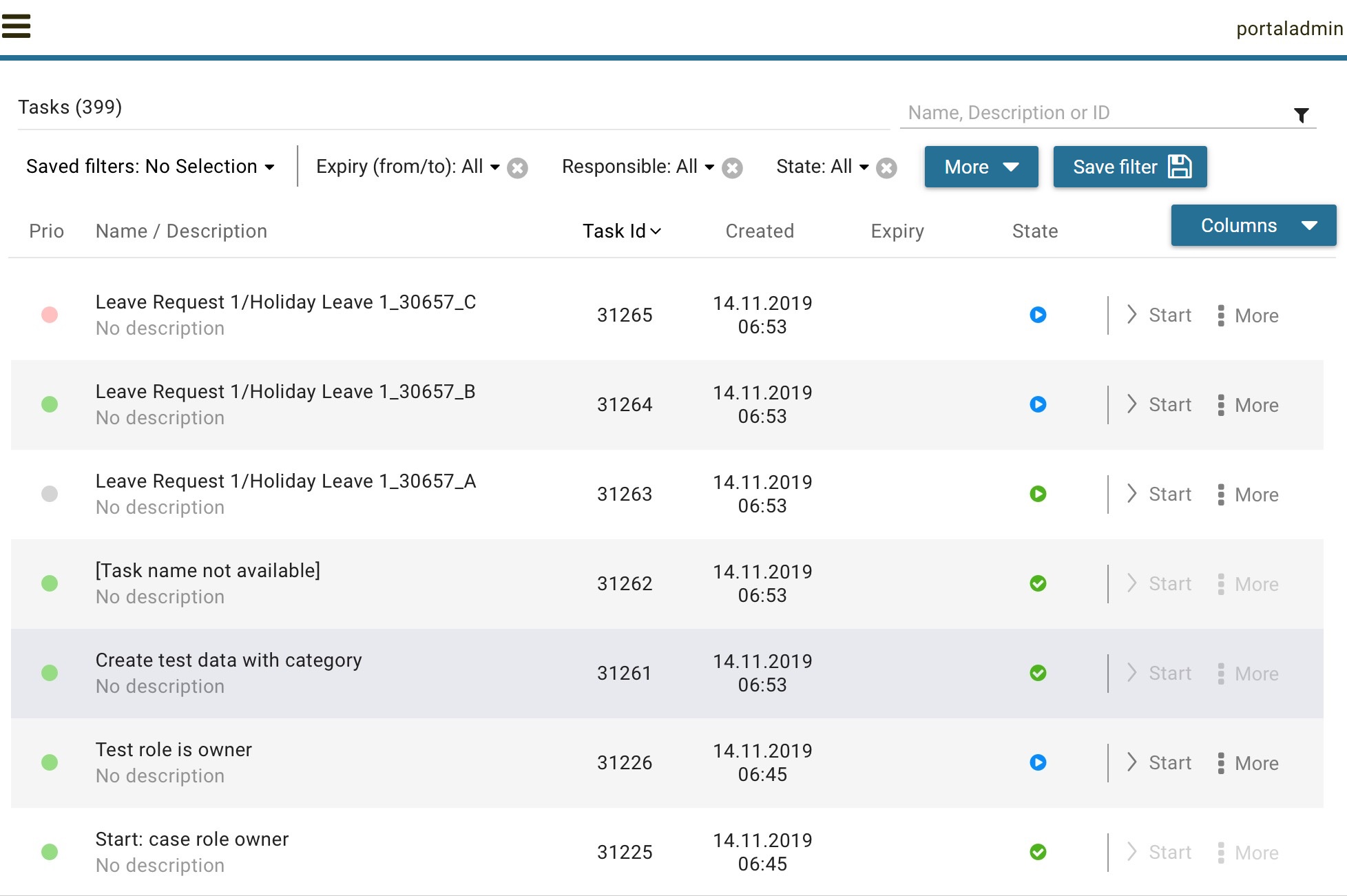

Task list template is used to display task list where user can see tasks and their details.

task-list-template

How to use task list template

  1. Create a new HTML User Dialog and then use ui:composition to define template.

<ui:composition template="/layouts/PortalTasksTemplate.xhtml">
</ui:composition>

  1. Data class of this dialog should have an attribute named taskView with type ch.ivy.addon.portal.generic.view.TaskView. By changing this attribute, user can modify title of the task list widget, collected tasks (through dataModel) and more. The following is a sample to build a taskView.

import ch.ivy.addon.portalkit.datamodel.TaskLazyDataModel;
import ch.ivy.addon.portal.generic.view.TaskView;
TaskLazyDataModel dataModel = new TaskLazyDataModel();
dataModel.setAdminQuery(true);
dataModel.setSortField(ch.ivy.addon.portalkit.enums.TaskSortField.PRIORITY.toString(), true);
category.setValue("My Task List");
out.taskView = TaskView.create().dataModel(dataModel).pageTitle("My Task List").hideTaskFilter(true)
.showHeaderToolbar(false).createNewTaskView();

Case list template

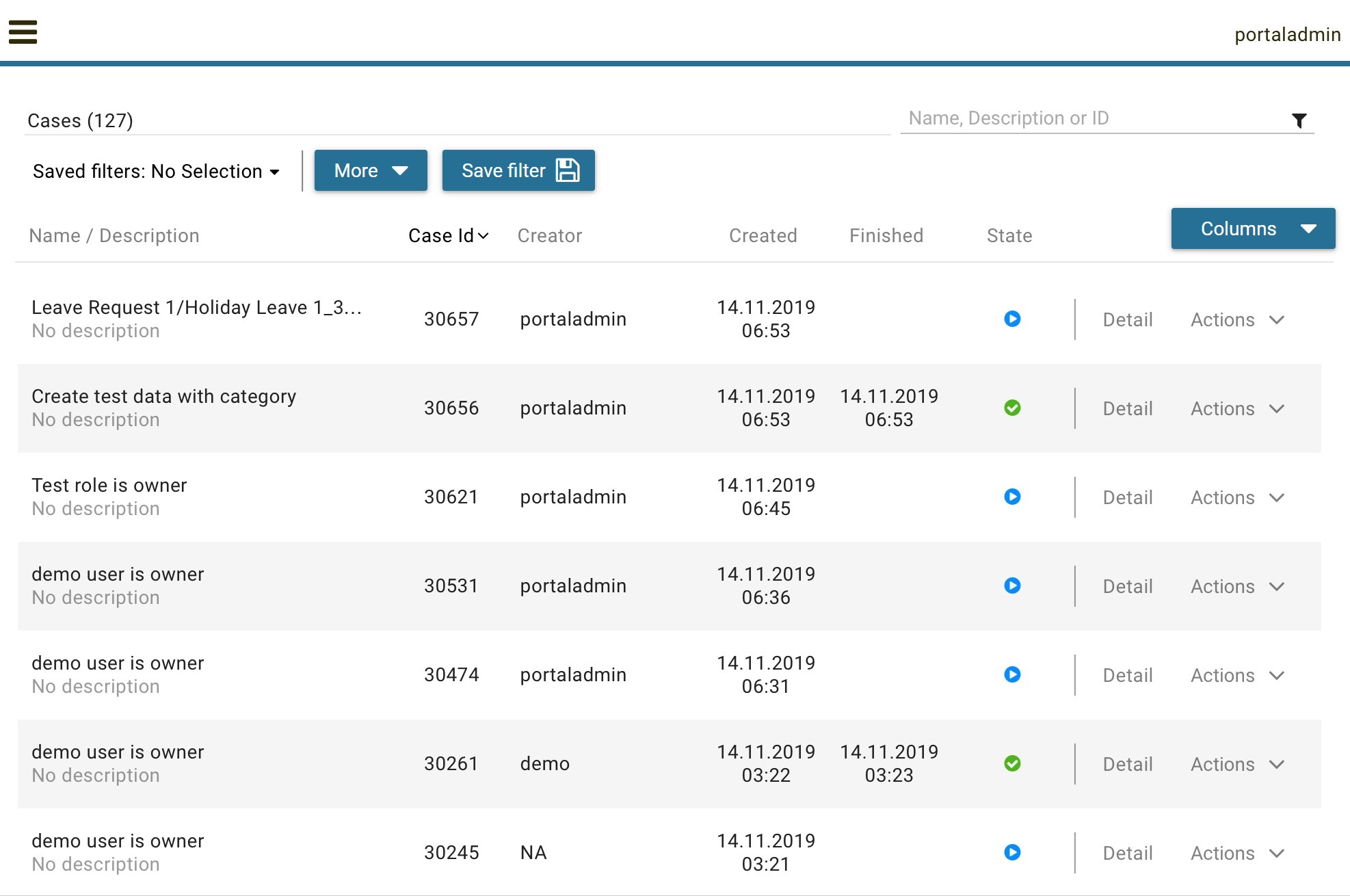

Case list template is used to display case list where user can see cases and their details.

case-list-template

How to use case list template

  1. Create a new HTML User Dialog and then use ui:composition to define template.

<ui:composition template="/layouts/PortalCasesTemplate.xhtml>
</ui:composition>

  1. Data class of this dialog should have an attribute named caseView with type ch.ivy.addon.portal.generic.view.CaseView. By changing this attribute, user can modify title of the case list widget, collected cases (through dataModel) and more. The following is an example to build a caseView.

import ch.ivy.addon.portalkit.datamodel.CaseLazyDataModel;
import ch.ivy.addon.portal.generic.view.CaseView;
CaseLazyDataModel dataModel = new CaseLazyDataModel();
out.caseView = CaseView.create().dataModel(dataModel).withTitle("My Cases").buildNewView();

Handle required login in templates

All templates require login to access by default. But templates also provide functionality to access page without login by adding the isNotRequiredLogin parameter.

How to handle required login in template

  1. Create a new HTML User Dialog and then use ui:param to define the template inside

<ui:composition template="/layouts/BasicTemplate.xhtml">
<ui:param name="isNotRequiredLogin" value="#{data.isNotRequiredLogin}" />
<ui:define name="pageContent">
This is sample content.
</ui:define>
</ui:composition>

  1. Result after using template for example (All user settings and application menus will not visible).

Default homepage template

Default homepage template is used to create pages that have the look as default homepage of Portal. Besides, users can customize it by disabling default widgets, add new widgets, change position of widgets. For more details including basic and advanced customization, refer to Portal home

How to use default homepage template

Create a new HTML User Dialog and then use ui:composition to define template.

<ui:composition template="/layouts/DefaultHomePageTemplate.xhtml">

Responsiveness

Since version 8.0, Portal has simplified ResponsiveToolKit and now Portal supports various screen resolution, not fit 3 screen widths as before.

To apply your styles for the specific resolution, you can add your own media query css:

@media screen and (max-width: 1365px) {/*.....*/}

In Portal’s new design, the main container’s width should be changed according to menu state (expand/colapse).

To adapt the change, you need to initialize the ResponsiveToolkit JavaScript object and introduce 1 object to handle screen resolutions and your object has to implement the updateMainContainer method.

Portal templates define their own responsiveness, you can redefine the footer section to override:

E.g. Initialize ResponsiveToolkit for TaskList page.

<ui:define name="footer">
<script type="text/javascript">
$(function(){
var simpleScreen = new TaskListScreenHandler();
var responsiveToolkit = ResponsiveToolkit(simpleScreen);
Portal.init(responsiveToolkit);
});
</script>
</ui:define>
