Document Table

This component is a case document table with functions display, upload, preview, download and delete document entries.

document-table

Attributes

Name

Default

Type

Description

nameColumnRendered

TRUE

Boolean

Boolean value to specify the rendering of the name column, when set to false name column will not be rendered.

sizeColumnRendered

TRUE

Boolean

Boolean value to specify the rendering of the size column, when set to false size column will not be rendered.

typeColumnRendered

TRUE

Boolean

Boolean value to specify the rendering of the type column, when set to false type column will not be rendered.

functionColumnRendered

TRUE

Boolean

Boolean value to specify the rendering of the function column, when set to false function column will not be rendered.

previewRendered

TRUE

Boolean

Boolean value to specify the rendering of the preview icon, when set to false preview icon will not be rendered.

uploadRendered

TRUE

Boolean

Boolean value to specify the rendering of the upload icon, when set to false upload icon will not be rendered.

downloadRendered

TRUE

Boolean

Boolean value to specify the rendering of the download icon, when set to false download icon will not be rendered.

deleteRendered

TRUE

Boolean

Boolean value to specify the rendering of the delete icon, when set to false delete icon will not be rendered.

renameRendered

TRUE

Boolean

Boolean value to specify the rendering of the edit filename icon, when set to false the icon will not be rendered.

messageRendered

TRUE

Boolean

Boolean value to specify the rendering of the message, when set to false message will not be rendered.

renderChooseUploadIcon

TRUE

Boolean

Defines if the button to upload document is displayed or not.

lazy

FALSE

Boolean

Boolean value to specify whether the table should load data lazily and enable pagination.

fileLimit

-1

Integer

Maximum number of files that can be uploaded.

sizeLimit

null

Long

Maximum size of an individual file in bytes.

uploadText

Upload

String

Label text displayed on the upload button.

updatedComponentAfterUploaded

null

String

Space-separated clientIds (or EL expressions) of components to update after a successful upload. Example: ‘document-table document-messages’.

previewTitle

Preview

String

Tooltip text displayed when hovering over the preview icon.

previewIcon

fa-eye

String

Icon class for the preview link.

previewStyleClass

null

String

Custom CSS style class to apply to the preview link.

previewDialogStyleClass

null

String

Custom CSS style class to apply to the preview dialog.

previewPDFStyleClass

null

String

Custom CSS style class to apply to PDF preview media element.

previewImageStyleClass

null

String

Custom CSS style class to apply to image preview element.

downloadTitle

Download

String

Tooltip text displayed when hovering over the download icon.

downloadIcon

fa-download

String

Icon class will be displayed in download link.

downloadStyleClass

null

String

Styles for download link.

deleteTitle

Delete

String

Tooltip text displayed when hovering over the delete icon.

deleteIcon

fa-trash-o

String

Icon class will be displayed in delete link.

deleteStyleClass

null

String

Custom CSS style class to apply to the download link.

updatedComponentAfterDeleted

null

String

Space-separated clientIds (or EL expressions) of components to update after a successful deletion. Example: ‘document-table document-messages’.

renameText

Rename document

String

Tooltip text displayed when hovering over the rename icon.

renameTitle

Rename document

String

Title text displayed in the rename dialog header.

renameStyleClass

null

String

Custom CSS style class to apply to the rename link.

updatedComponentAfterRenamed

null

String

Space-separated clientIds (or EL expressions) of components to update after a successful rename. Example: ‘document-table document-messages’.

selectedType

String

Default document type to be selected. If not provided, the first item of typeSelectionItems will be used.

typeSelectionItems

DOCUMENTATION,CONTRACT,INFORMATION,EMAIL,OTHERS

com.axonivy.portal.components.enums.DocumentType[]

Array of DocumentType objects for the type selection dropdown. Default is #{documentUploadBean.documentTypes} which returns BasicDocumentType enum values (DOCUMENTATION, CONTRACT, INFORMATION, EMAIL, OTHERS).

enableScriptCheckingForUploadedDocument

Boolean
Boolean value to specify script checking. Set to true to enable script checking.
The setting will detect Portal setting Portal.Document.EnableScriptChecking as its default value, refer to HowTo: Update Portal Settings for more details.
If the Portal setting is not available, defaults to false.

enableVirusScannerForUploadedDocument

Boolean
Boolean value to specify virus scanning. Set to true to enable virus scanning. Refer to Virus Scanning Setting for more details.
The setting will detect Portal setting Portal.Document.EnableVirusScanner as its default value, refer to HowTo: Update Portal Settings for more details.
If Portal setting is not available, default value is false.

allowedUploadFileTypes

String
String value to specify the list of file extension that can be uploaded.
The setting will detect Portal setting Portal.Document.WhitelistExtension as its default value, refer to HowTo: Update Portal Settings for more details.
If Portal setting is not available, default value is doc,docx,xls,xlsx,xlsm,csv,pdf,ppt,pptx,txt,zip,jpg,jpeg,bmp,png.

Virus scanning

The Document Table has options to check for harmful scripts and viruses inside the file before uploading it to the system.

  • Set enableScriptCheckingForUploadedDocument to true to check for harmful scripts.

  • Set enableVirusScannerForUploadedDocument to true to enable virus scanning.

Code example:

<ic:com.axonivy.portal.components.DocumentTable id="document-table-component"
   enableScriptCheckingForUploadedDocument="true"
   enableVirusScannerForUploadedDocument="true" />

Please refer to Virus Scanning Settings for more details about virus scanning.

Customize

In your project, create callable subprocesses with the information below to customize the functions of the Document Table.

Tip

You can refer to process CustomDocumentFeatures in project portal-components-examples to examine how to customize.

Get document list

To customize how Document Table gets documents, create a callable subprocess with:

Signature: portalGetDocumentItems

Parameters:

businessCase (ch.ivyteam.ivy.workflow.ICase)

The case for which to retrieve documents.

Result:

documents (java.util.List<com.axonivy.portal.components.ivydata.bo.IvyDocument>)

List of documents associated with the case. After retrieving documents from your DMS, convert them into this type with mandatory fields: id, uuid, name, contentType.

message (java.lang.String)

Status or error message from the document retrieval operation.

Upload document

To customize what Document Table should do when a user uploads a document, create a callable subprocess with:

Signature: portalUploadDocumentItem

Parameters:

businessCase (ch.ivyteam.ivy.workflow.ICase)

The case to upload the document to.

uploadedFile (org.primefaces.model.file.UploadedFile)

The file being uploaded by the user.

enableScriptCheckingForUploadedDocument (java.lang.Boolean)

Whether to check uploaded files for embedded scripts.

enableVirusScannerForUploadedDocument (java.lang.Boolean)

Whether to scan uploaded files for viruses.

allowedUploadFileTypes (java.lang.String)

Comma-separated list of allowed file extensions.

Result:

uploadedDocument (ch.ivyteam.ivy.workflow.document.IDocument)

The uploaded document object.

message (java.lang.String)

Status or error message from the upload operation.

status (java.lang.String)

Operation status: OK or FAIL.

Download document

To customize behavior when a user downloads a document from Document Table, create a callable subprocess with:

Signature: portalDownloadDocumentItem

Parameters:

businessCase (ch.ivyteam.ivy.workflow.ICase)

The case containing the document.

document (com.axonivy.portal.components.ivydata.bo.IvyDocument)

The document to be downloaded.

Result:

streamedContent (org.primefaces.model.StreamedContent)

The document content stream for download.

Delete document

To customize behavior when a user deletes a document from Document Table, create a callable subprocess with:

Signature: portalDeleteDocumentItem

Parameters:

businessCase (ch.ivyteam.ivy.workflow.ICase)

The case containing the document.

document (com.axonivy.portal.components.ivydata.bo.IvyDocument)

The document to be deleted.

Result:

message (java.lang.String)

Status or error message from the delete operation.

Rename document

To customize behavior when a user rename a document from Document Table, create a callable subprocess with:

Signature: portalRenameDocumentItem

Parameters:

businessCase (ch.ivyteam.ivy.workflow.ICase)

The case containing the document.

document (com.axonivy.portal.components.ivydata.bo.IvyDocument)

The document to be renamed. The new filename should already be modified in the document’s name attribute.

Result:

message (java.lang.String)

Message to inform the user that their new filename is successfully updated or invalid to use.

isSuccess (java.lang.Boolean)

true if the document’s name is successfully updated, otherwise false.

status (java.lang.String)

Operation status: OK or SKIP (if customized process skipped updating the filename).

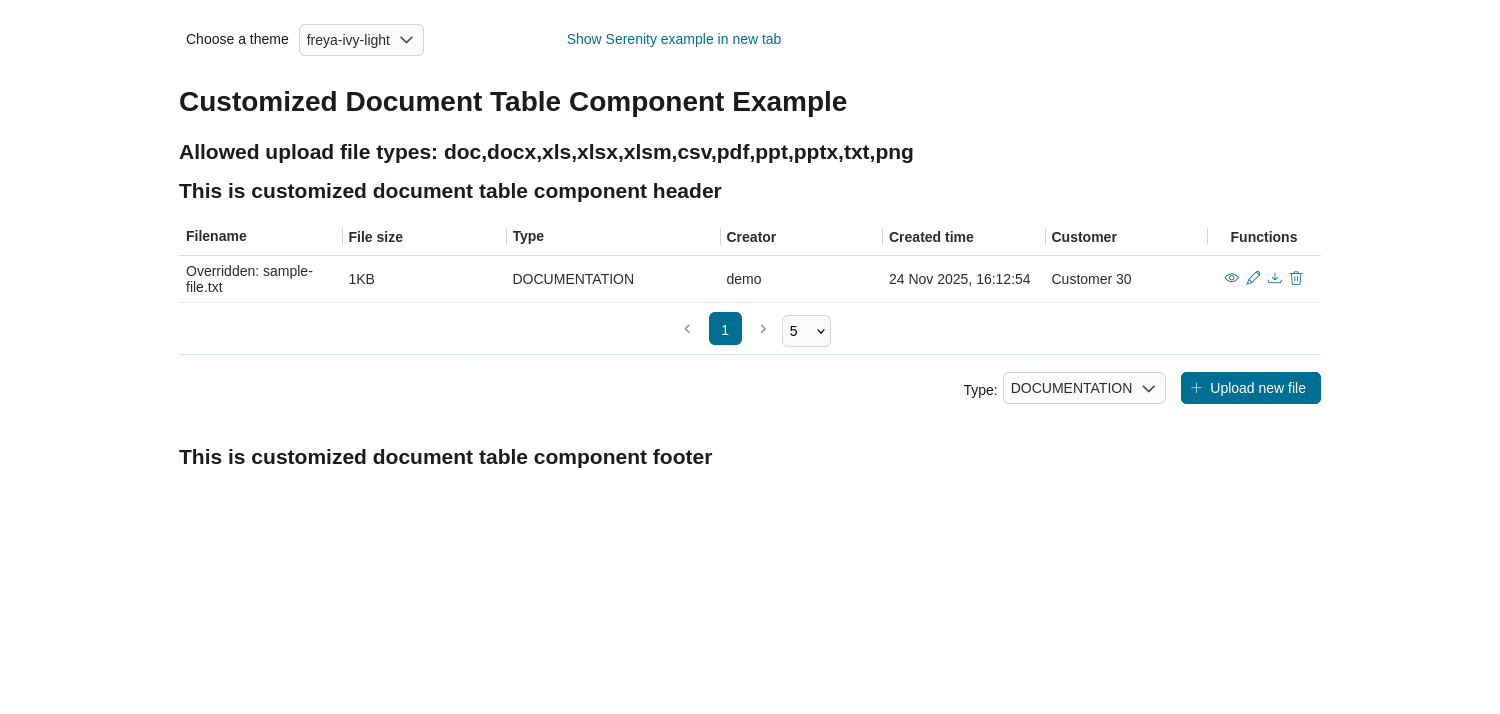

User interface

Not only the functions, but you can also customize the UI of the Document Table such as adding a new column, removing default columns or enable the lazy loading and pagination.

Code Example:

<h:form id="form">
   <ic:com.axonivy.portal.components.DocumentTable id="document-table-component"
      allowedUploadFileTypes="doc,docx,xls,xlsx,xlsm,csv,pdf,ppt,pptx,txt,png"
      typeSelectionItems="#{documentTableExampleBean.documentTypes}"
      lazy="true">
      <f:facet name="componentHeader">
         <h2>This is the customized document table component header</h2>
      </f:facet>
      <p:column headerText="Creator" styleClass="document-creator-column">
         <h:outputText id="creator" value="#{document.creation.userName}" title="#{document.creation.userName}" />
      </p:column>
      <p:column headerText="Created time" styleClass="document-created-column">
         <h:outputText id="created-time" value="#{document.creation.timestamp}" title="#{document.creation.timestamp}" />
      </p:column>
      <p:column headerText="Customer" styleClass="document-customer-column">
         <h:outputText id="customer" value="#{document.customer}" title="#{document.customer}" />
      </p:column>
      <f:facet name="componentFooter">
         <h2>This is the customized document table component footer</h2>
      </f:facet>
   </ic:com.axonivy.portal.components.DocumentTable>
</h:form>

Tip

Refer to process DocumentTableExample in project portal-components-examples for more details.

Migration Notes

Migrate 10.0.x to 10.0.12

Since this version, we no longer support the override process approach for functions of Document Table. Please follow our guidelines below to migrate your override subprocesses.

  • Remove Subprocess Override of GetDocumentItems, UploadDocumentItem, DeleteDocumentItem, and DownloadDocumentItem from your project.

  • Change the signature of your callable starts as described below.

    Subprocess

    New signature

    GetDocumentItems

    portalGetDocumentItems

    UploadDocumentItem

    portalUploadDocumentItem

    DeleteDocumentItem

    portalDownloadDocumentItem

    DownloadDocumentItem

    portalDeleteDocumentItem

Now your Document Table should work as before.

Migrate to 10.0.0

  1. Replace code in HTML files: replace ic:ch.ivy.addon.portalkit.component.document.DocumentTable with ic:com.axonivy.portal.components.DocumentTable.

  2. Consider updating value of the new attributes enableScriptCheckingForUploadedDocument, enableVirusScannerForUploadedDocument and allowedUploadFileTypes as required.

  3. Override subprocesses if you want and adapt your business accordingly.

    New subprocess

    Deprecated subprocess

    GetDocumentItems

    GetDocumentList

    UploadDocumentItem

    UploadDocument

    DeleteDocumentItem

    DeleteDocument

    DownloadDocumentItem

    DownloadDocument

  4. If you have customized IvyDocument make sure to extend it from class com.axonivy.portal.components.ivydata.bo.IvyDocument.

  5. Attributes typeSelectionItems and selectedType now use com.axonivy.portal.components.enums.DocumentType. Please replace ch.ivy.addon.portalkit.enums.DocumentType with com.axonivy.portal.components.enums.DocumentType.

    Note

    Please remove redundant overridden configurations, subprocesses, and data classes such as GetDocumentListOverride, UploadDocumentOverride, etc.

Release Notes

Changes in 12.0.9

  • Introduced Renaming Document feature for Document Table component. Follow instructions in Customize section to create a callable subprocess to customize the renaming behavior if needed.

  • Enhanced the document preview feature for the task and case detail. If you have DocFactory in the same security context, you can preview Word(doc, docx), Excel(xls, xlsx) and email(eml) documents.

Changes in 12.0.11

  • Added lazy loading functionality to the Document Table component, enabling efficient data loading through pagination.
