Process Information

Introduction

When you want to customize the Process information page, e.g. to add a case list related to the selected process, follow this section to override the built-in Portal Process information page.

Define Your Own Process Steps

You can describe the details and steps of each process easily by defining process steps for it.

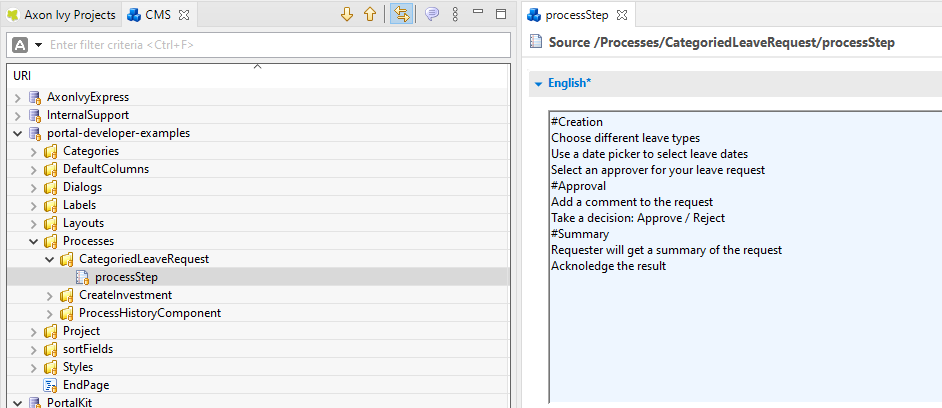

1. Create a CMS object with type source in your project with this path: Processes\*Example*\processStep

   *Example* is the process start signature name (Example.ivp)

2. Format of process step:

   • Header lines for process step start with the # (hashtag) symbol.

   • Other lines are descriptions of each step.



   Tip

   You can define as many steps as you want. However, we recommend defining at most three steps to have a better look and feel.

Customization

1. Override the HTML dialog ch.ivy.addon.portal.component.ProcessInformation of portal.

2. Copy content and logic of the HTML dialog ch.ivy.addon.portal.component.ProcessInformation to your overridden HTML dialog.

3. Define your customization in the processInfo section. This section will be displayed below the process steps section.

   <ui:define name="processInfo">
     <!-- Put your customization here -->
   </ui:define>


   Tip

   Please refer to HTML dialog CustomizedProcessInformation of portal-developer-examples for details.
