Configure Process Widget

Define Process Widget

The Process widget of the Portal dashboard is a flexible Process list with three modes. Refer to Process list widget for details.

The basic structure of the JSON of a process widget is as follows:

{
   "type": "compact-process",
   "id": "process-widget",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      }
   ],
   "layout": {
      "x": 10, "y": 0, "w": 2, "h": 4
   },
   "showFullscreenMode" : true,
   "showWidgetInfo" : true
}

The basic structure of the JSON of a Process widget

type: type of the process widget. There are four types for related display modes: compact-process (compact mode), combined-process (combined mode), full-process (full mode), and image-process (image mode).

id: ID of the widget

names: multilingual name of the widget on UI.

layout: layout definition of the widget

x: HTML DOM Style left is calculated as formula x / 12 * 100%

y: HTML DOM Style top is calculated as formula y / 12 * 100%

w: HTML DOM Style width is calculated as formula 60 * w + 20 * (w - 1)

h: HTML DOM Style height is calculated as formula 60 * h + 20 * (h - 1)

styleClass (optional): add CSS Classes to HTML DOM of the widget

style (optional): add inline style to HTML DOM of the widget

showFullscreenMode: visibility of the fullscreen mode icon. The default value is true, set to false to hide the icon.

showWidgetInfo: visibility of the widget information icon. The default value is true, set to false to hide the icon.

Each mode has differences in its JSON definition. Refer to the below sections to understand how to define the process widget in these modes properly.

Compact Mode

Below is a standard JSON definition of a Process widget in compact mode

{
   "type": "compact-process",
   "id": "compact_mode",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      }
   ],
   "layout": {
      "x": 10, "y": 0, "w": 2, "h": 4
   },
   "processPaths": ["designer/portal-developer-examples/Start Processes/Request/createNewRequest.ivp", "designer/portal-developer-examples/Start Processes/Request/collectDataRequest.ivp"],
   "categories": ["/Categories/Showcase/Customized", "/Categories/Showcase/PortalDialogExample"],
   "sorting": "SORTING_INDEX",
   "enableQuickSearch": true
}

processPaths: the Axon Ivy IWebStartable identifier of the processes that you want to show.

categories: categories of processes that you want to show. The value should be the CMS URI of this category. Process widget will show all processes that belonged to these categories.

If you define both processPaths and categories, the process widget will show processes by processPaths.

If you don’t define these attributes, the process widget will show all available processes by default.

sorting: define the order of process shown on widget. The default value is sorting by alphabetically.

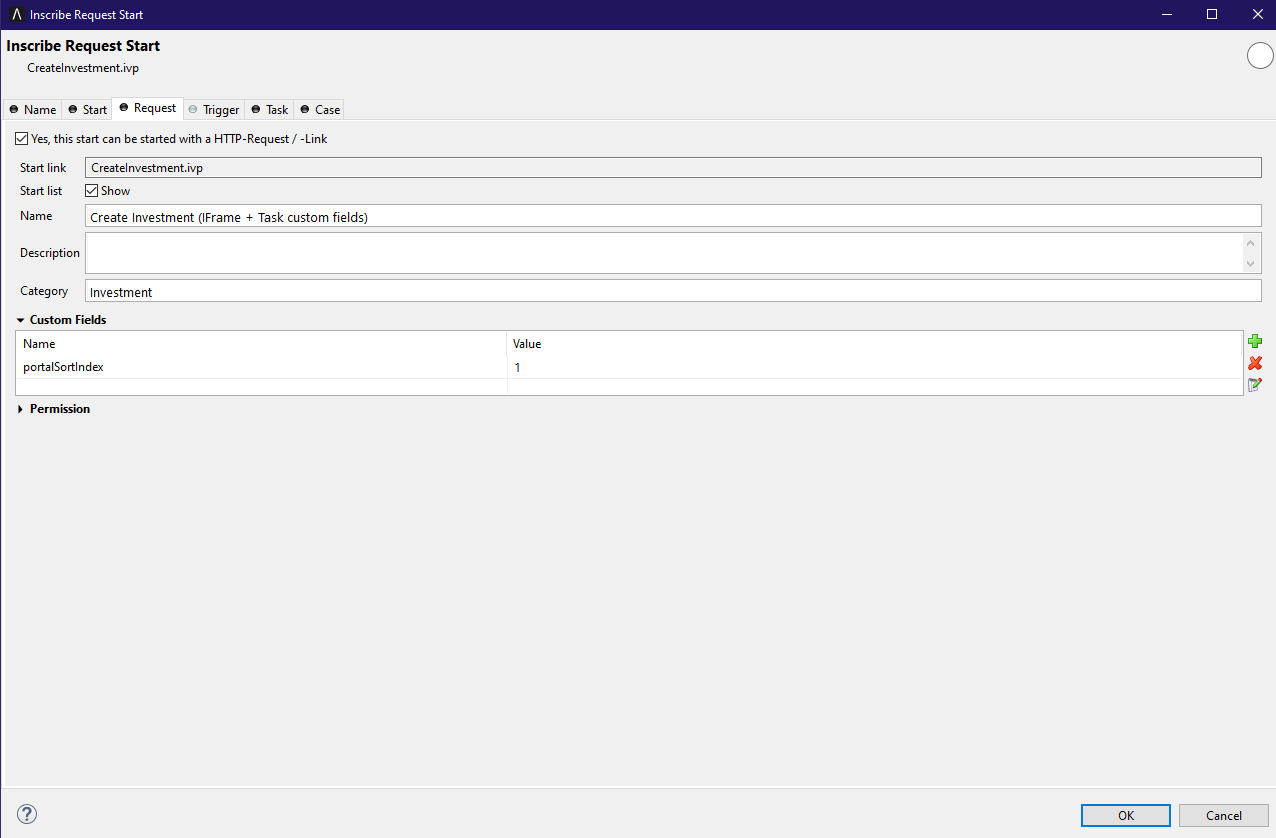

If you want to order processes by Index, you must define a custom field name portalSortIndex with numeric value in process start.

enableQuickSearch: enable the quick search feature for the widget.

Valid values:

• true: show the quick search text box.

• false: hide the quick search text box.

• not defined: hide the quick search text box.

Combined Mode

Below is a standard JSON definition of a Process widget in combined mode

{
   "type": "combined-process",
   "id": "combined_mode",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      }
   ],
   "layout": {
      "x": 10, "y": 0, "w": 2, "h": 4
   },
   "processPath": "designer/portal-developer-examples/Start Processes/Request/createNewRequest.ivp",
   "rowsPerPage": 5
}

processPath: the Axon Ivy IWebStartable identifier of the process you want to display. The Process widget will show all tasks and cases of this process, too.

rowsPerPage: the number of tasks/cases that are displayed on one page. If you don’t define this attribute, the default value is 5 rows per page.

Full mode

Below is a standard JSON definition of a Process widget in full mode

{
   "type": "full-process",
   "id": "full_mode",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      }
   ],
   "layout": {
      "x": 10, "y": 0, "w": 2, "h": 4
   },
   "processPath": "designer/portal-developer-examples/Start Processes/Request/createNewRequest.ivp"
}

Image Mode

Below is a standard JSON definition of the Process widget in image mode

{
   "type": "image-process",
   "id": "image_mode",
   "names": [
      {
         "locale": "en",
         "value": "Process Widget"
      }
   ],
   "layout": {
      "x": 10, "y": 0, "w": 2, "h": 4
   },
   "processPath": "designer/portal-developer-examples/Start Processes/Request/createNewRequest.ivp"
}
