Error handling

In this section, we introduce 2 kind of errors, when and how to handle them in Portal.

  • Ajax error: this kind of errors occur during a JSF ajax request, for example when the user clicks on the show full mode button to tell the task widget switches to full mode, without handling the end user would not get any form of feedback if the action was successfully performed or not.

  • Non-ajax error: this kind of errors occur when user access to Portal from a url which could not be handled successfully by server side, or being navigated by a corrupted url. For example, when the user clicks on a link to start a task which does not exist.

Ajax error handling

Introduction

By default, Portal handles all exceptions from ajax requests.

When an exception occurs, Portal will show an error notification with the exception type and message to end user. The exception details are available when user clicks on show details button.

Stacktrace on error messages can be showed/hidden depend on ivy system property Errors.ShowDetailsToEndUser.

Note

This feature is only available if using the Portal default template: BasicTemplate or its extension.

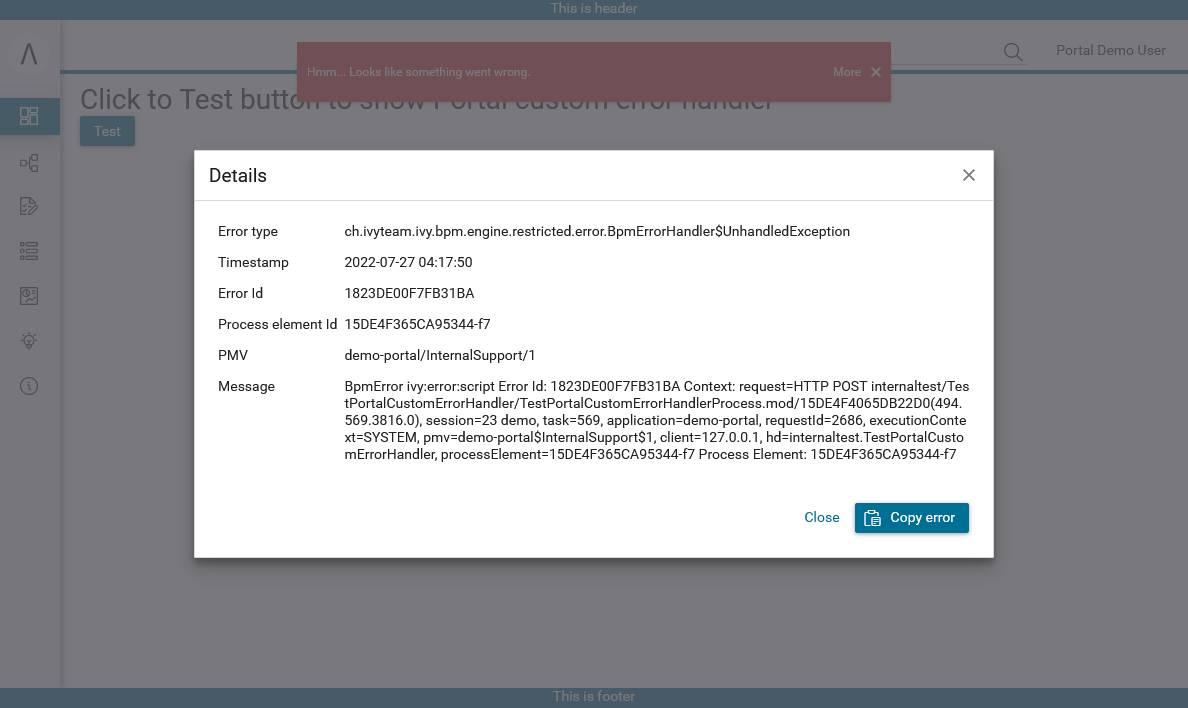

Result

portal-ajax-error-handler

Non-ajax error handling

Introduction

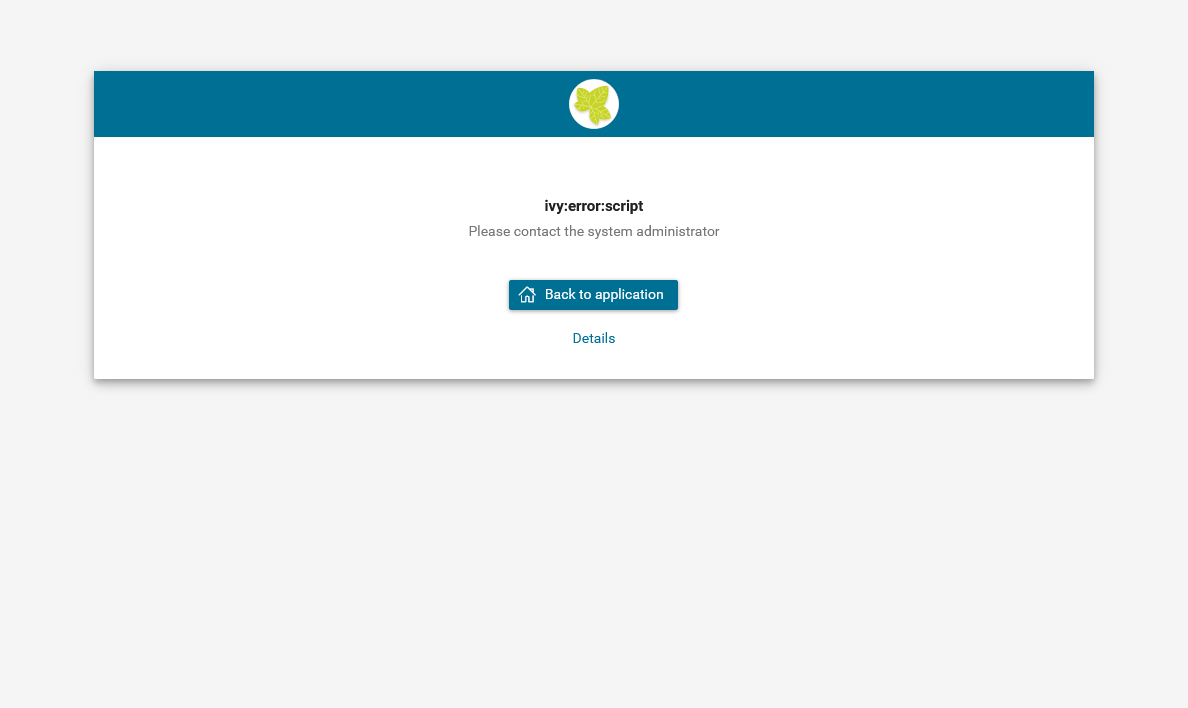

By default, when the server has any error such as: HTTP 404, HTTP 500, or exception while page’s loading, Axon Ivy Engine will show an default error page. E.g.:

default-ivy-error

You can find content of this page is the file located on ${AxonIvyEngineFolder}/webapp/ivy/ivy-error-page.xhtml, but the error page is not user friendly, too much technical information that normal user may not understand. Thus, Axon Ivy Portal provides an alternative solution to make this page nicer.

How to configure

Download the zip file below to configure on your own engine (or designer).

Important

Read README.txt

PortalErrorPageConfiguration.zip

Result

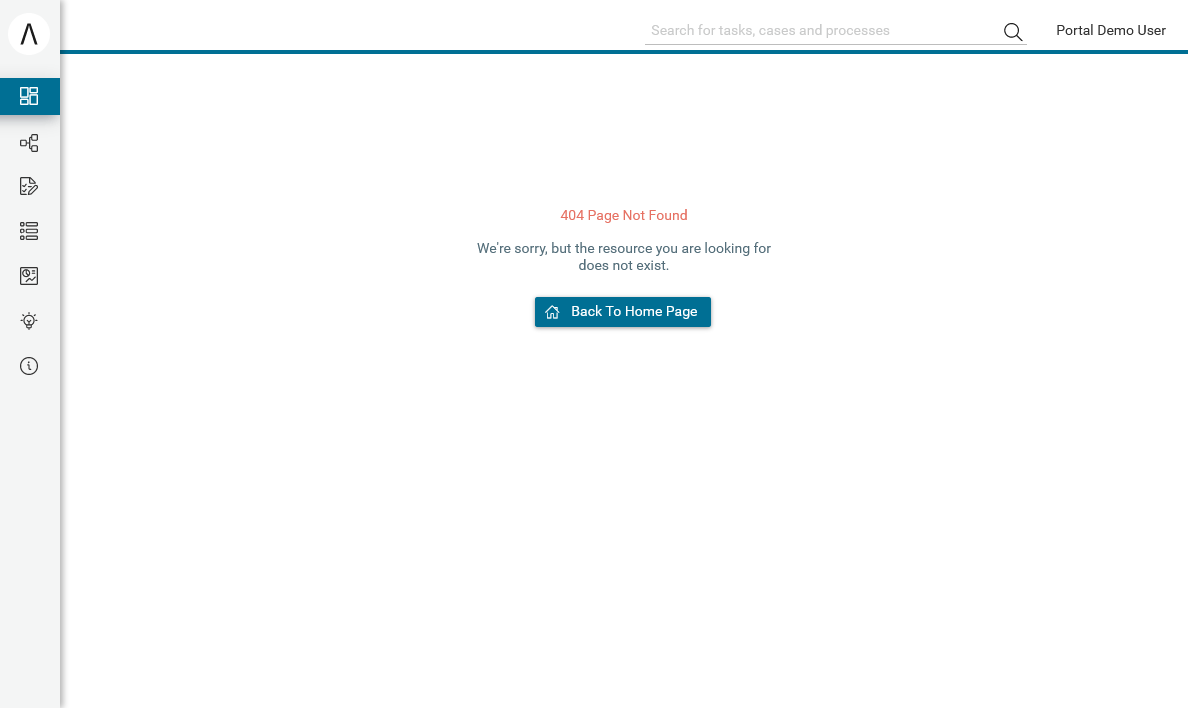

HTTP 404 Page Not Found

Example testing URL: 404

404

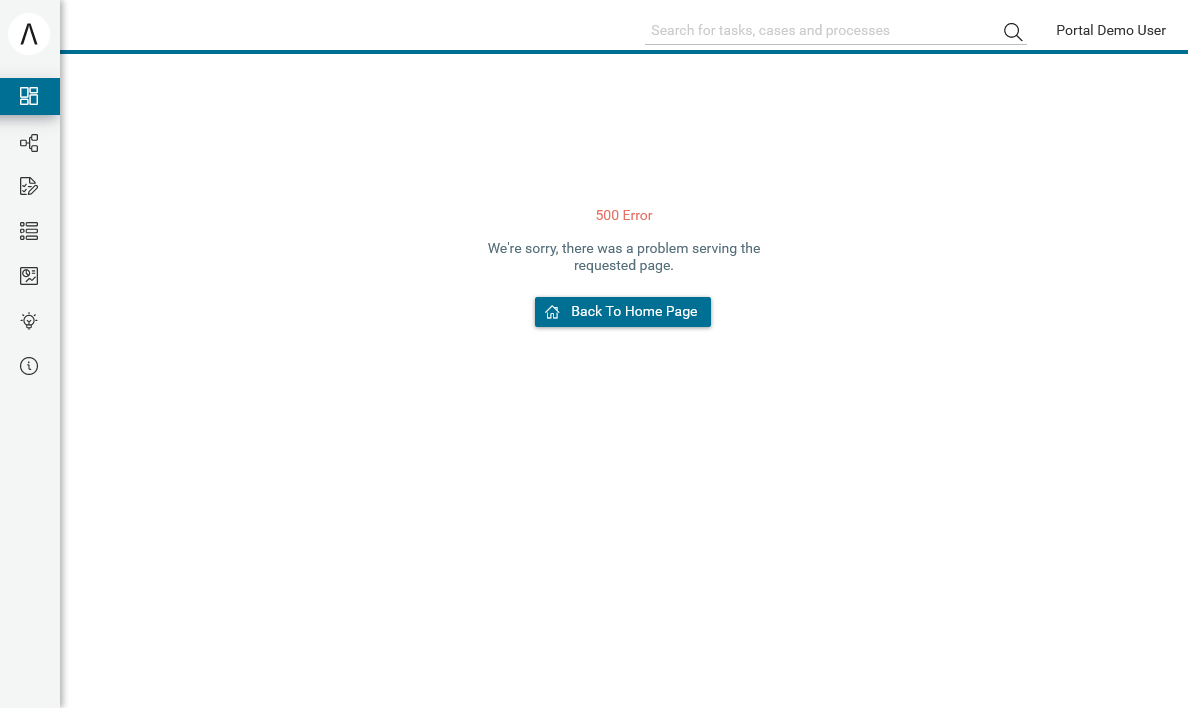

HTTP 500 Error

Example testing URL: 500

500
