Error handling¶
In this section, we introduce 2 kind of errors, when and how to handle them in Portal.
Ajax error : this kind of errors occur during a JSF ajax request, for example when the user clicks on the show full mode button to tell the task widget switches to full mode, without handling the end user would not get any form of feedback if the action was successfully performed or not.
Non-ajax error : this kind of errors occur when user access to Portal from a url which could not be handled successfully by server side, or being navigated by a corrupted url. For example, when the user clicks on a link to start a task which does not exist.
Ajax error handling¶
Introduction¶
By default, Portal handles all exceptions from ajax requests.

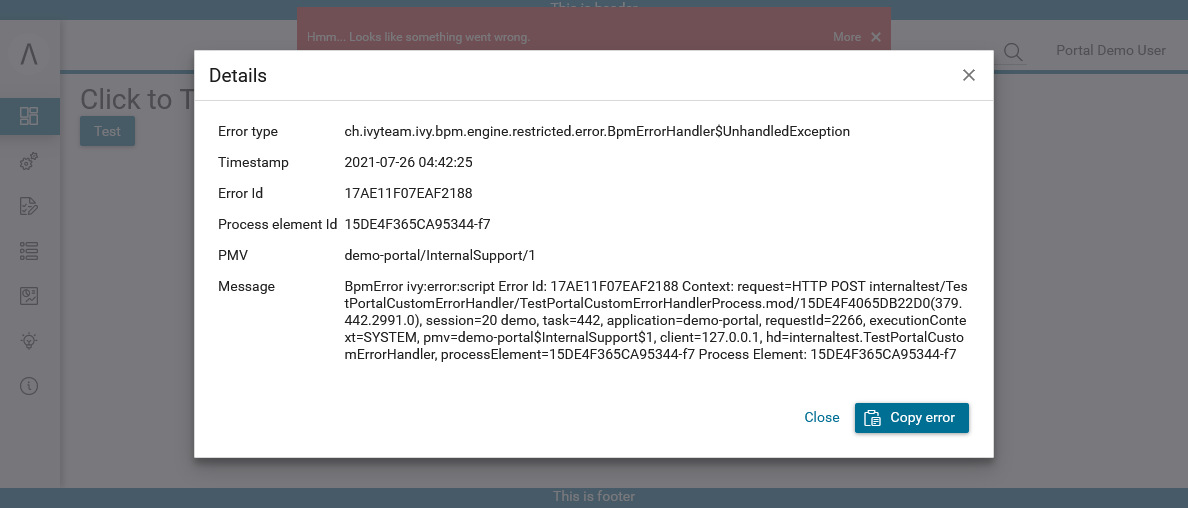

When an exception occurs, Portal will show an error notification with the exception type and message to end user. The exception details are available when user clicks on show details button.
Stacktrace on error messages can be showed/hidden depend on ivy system
property Errors.ShowDetailsToEndUser.
Note
This feature is only available if using the portal default template: BasicTemplate or its extension.
Result¶
Non-ajax error handling¶
Introduction¶

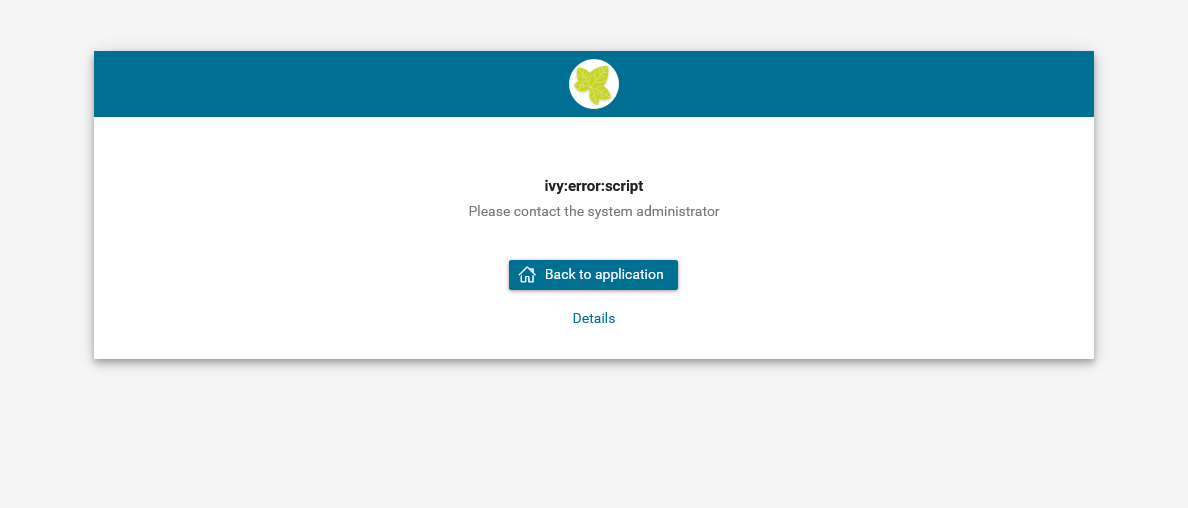

By default, when the server has any error such as : HTTP 404,
HTTP 500, or exception while page’s loading, AxonIvyEngine will show
an default error page. E.g.:

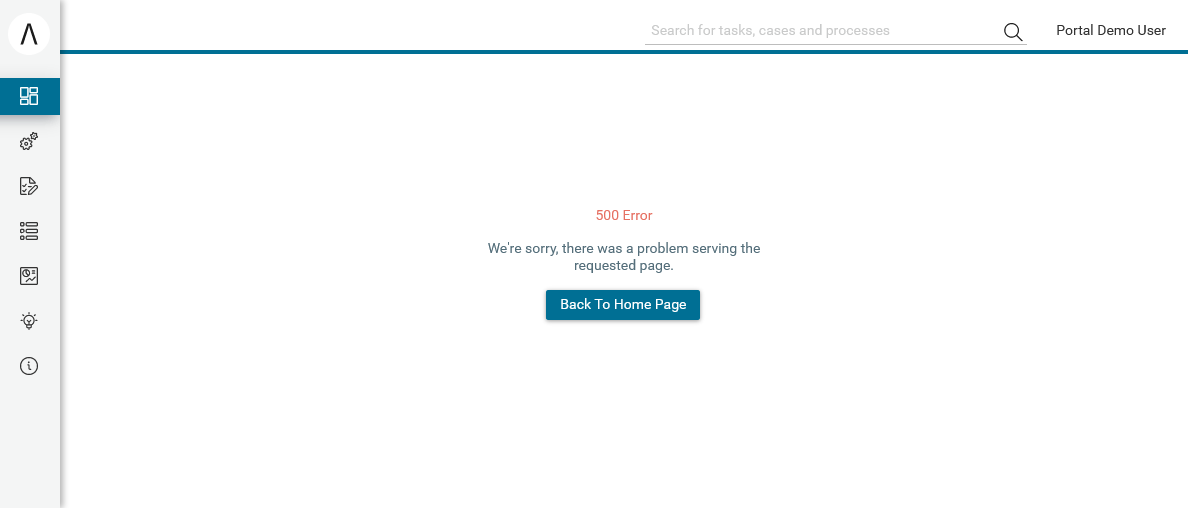

You can find content of this page is the file located on
${AxonIvyEngineFolder}/webapp/ivy/ivy-error-page.xhtml, but the
error page is not user friendly, too much technical information that
normal user may not understand. Thus, Axon Ivy Portal provides an
alternative solution to make this page nicer.
How to configure¶
Download the zip file below to configure on your own engine (or designer).
Important
Read README.txt
