Mail Merging

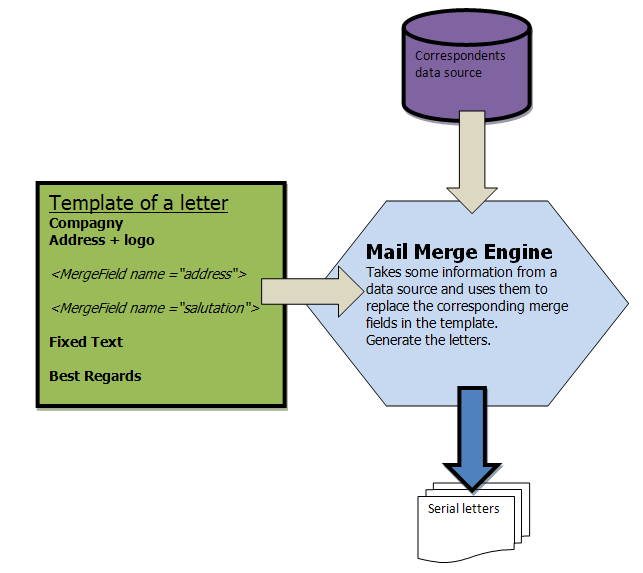

Using templates allows for the automated generation of huge quantities of mail merge letters to different correspondents. It is widely used as a consistent way to unify letter correspondence in companies or administrations. The mechanism of mail merging can be resumed with the following picture:

At the heart of the mechanism lies a Mail Merge Engine. This engine receives some data from a data source (Database, spreadsheet, XML …) and replaces merge fields in the template with the corresponding data. It saves either each letter as a separate document or in a single document containing all the letters. The data should be in the form of a data set (e.g., a list of correspondent addresses).

In our Document Factory, the mail merge engine is provided by the commercial Aspose Words Java API. You can extend and create your own implementation of the document factory with other engines.

Mail Merging with Regions

Warning

The mail merge with regions described here is specific to the Aspose engine. If you extend this current DocFactory by using another engine you have to refer to its specific documentation.

If you want to dynamically grow parts inside the document, use mail merge with regions. To specify a mail merge region in the document, you need to insert two mail merge fields to mark the beginning and end of the mail merge region. All document content in a mail merge region will be repeated automatically for every record in the data source (in most cases, this is a table).

To mark the beginning of a mail merge region, insert a MERGEFIELD with the name TableStart:MyTable, where MyTable corresponds to the name of the table. To mark the end of the mail merge region, insert another MERGEFIELD with the name TableEnd:MyTable. Between these marking fields, place merge fields that correspond to the fields of your data source (table columns).

These merge fields will be populated with data from the first row of the data source, then the whole region will be repeated, and the new fields will be populated with data from the second row, and so on.

Follow these simple rules when marking a region:

• TableStart and TableEnd fields must be inside the same section in the document.

• If used inside a table, TableStart and TableEnd must be inside the same row in the table.

• Mail merge regions can be nested inside each other.

• Mail merge regions should be well formed (there is always a matching pair of TableStart and TableEnd with the same table name).

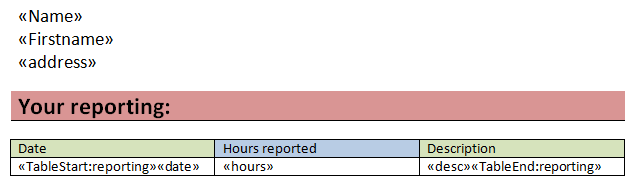

The following picture shows a template with a mail merge region:

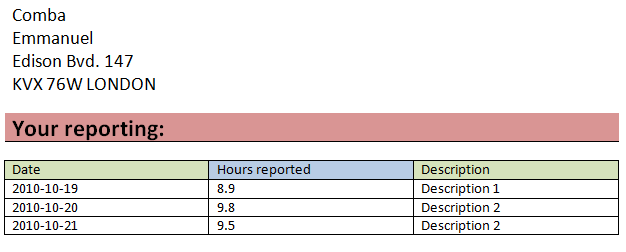

The following picture shows the result of the mail merge with regions:

We have provided some callables subprocesses to ease the use of mail merge and mail merge with regions. Please refer to the next section.

Mail Merging with Nested Regions

Warning

The mail merge with nested regions described here is specific to the Aspose engine. If you extend this current DocFactory by using another engine, you have to refer to its specific documentation.

Tip

We retrieved most of the information provided in this section from the Aspose official documentation. You can find the complete documentation on the Aspose web site at Aspose.

Most data in relational databases or XML files is hierarchical (e.g. with parent-child relationships). One common example is a report about employees of a company. The different employees are employed in different departments and have several human capital elements. In this case, we have several items nested in each other: Human Capital elements nested in Employees nested in Departments nested in a Company.

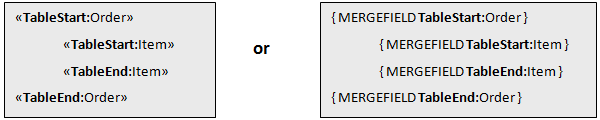

Aspose.Words allows nesting mail merge regions inside each other in a document to reflect the way the data is nested. This allows you to easily populate a document with hierarchical data. Nested mail merge regions are at least two regions in which one is defined entirely inside the other, so they are “nested” in one another. In a document it looks like this:

There are a few things you need to consider when preparing nested mail merge regions and merge regions in general:

• The mail merge region opening and closing tag (e.g., TableStart:Order, TableEnd:Order) both need to appear in the same row or cell. For example, if you start a merge region in a cell of a table, you must end the merge region in the same row as the first cell.

• The names of the columns in the DataTable must match the merge field name. Unless you have specified mapped fields the merge will not be successful for those fields whose names are different. In the Axon Ivy Implementation of this feature we use the Dataclasses Class names as TableStart names and the Dataclasses attributes names as mergefields names (more information here).

• Mail merge regions should be well formed (there is always a pair of matching TableStart and TableEnd merge fields with the same table name).

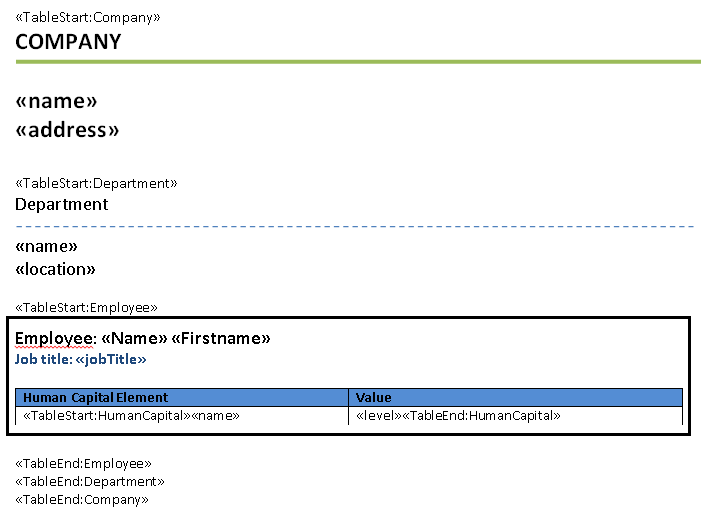

The following picture shows a template with a mail merge region:

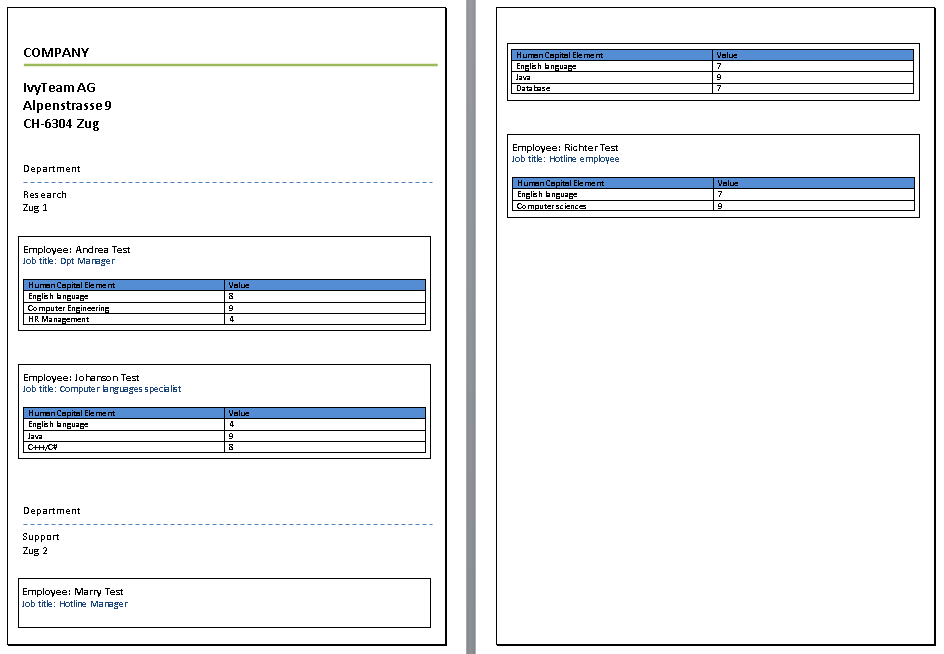

The following picture shows the result of the mail merge with regions:

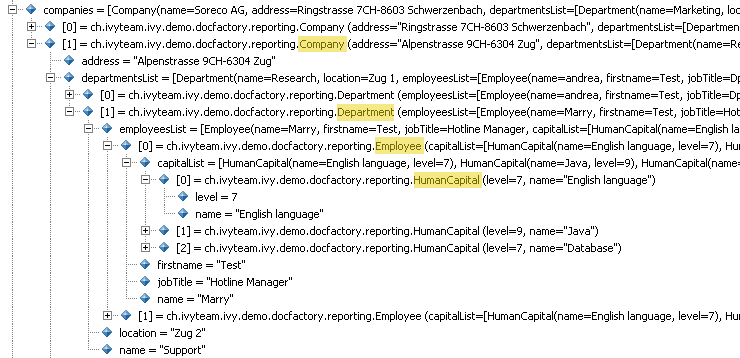

The previous nested mail merge has been made by using List of Axon Ivy DataClasses built as follows:

It is very important to create your templates with this in mind:

• Each TableStart merge field has to be named like the corresponding dataclass: e.g. the TableStart:Employee will correspond to the Employee data object. This rule is case sensitive.

• Within each “Data Object - Table”, the merge fields will be filled with the corresponding data attribute value. The merge field must have the same name as the data attribute. Refer to the level attribute and mergefield in the HumanCapital table as an example.

We have provided some callable subprocesses to ease the use of mail merge and mail merge with nested regions. Please refer to the next section.
